Automobile / Car Elevators

A car lift is installed where ramps are considered space-inconservative for smaller buildings (usually in apartment buildings where frequent access is not an issue, car workshop where judicious space usage is very important). The car platforms are raised and lowered in the similar fashion as freight elevator except for the fact that size and load carrying capacity of Lift platform is in accordance with the dimensions & weight of largest vehicle to be transported between floors. Beacon offers all types of vehicle elevator from 1500 kg for smaller cars to 5000 kg for bigger cars like SUVs and tempos.

Over the last decade Beacon has specialized the concept of vertical transportation of material through its innovative techniques and designs. One of the landmark achievement has been development of Flameproof Limit Switches to provide our client with the elevator that is suitable for hazardous area.

View Civil Dimension

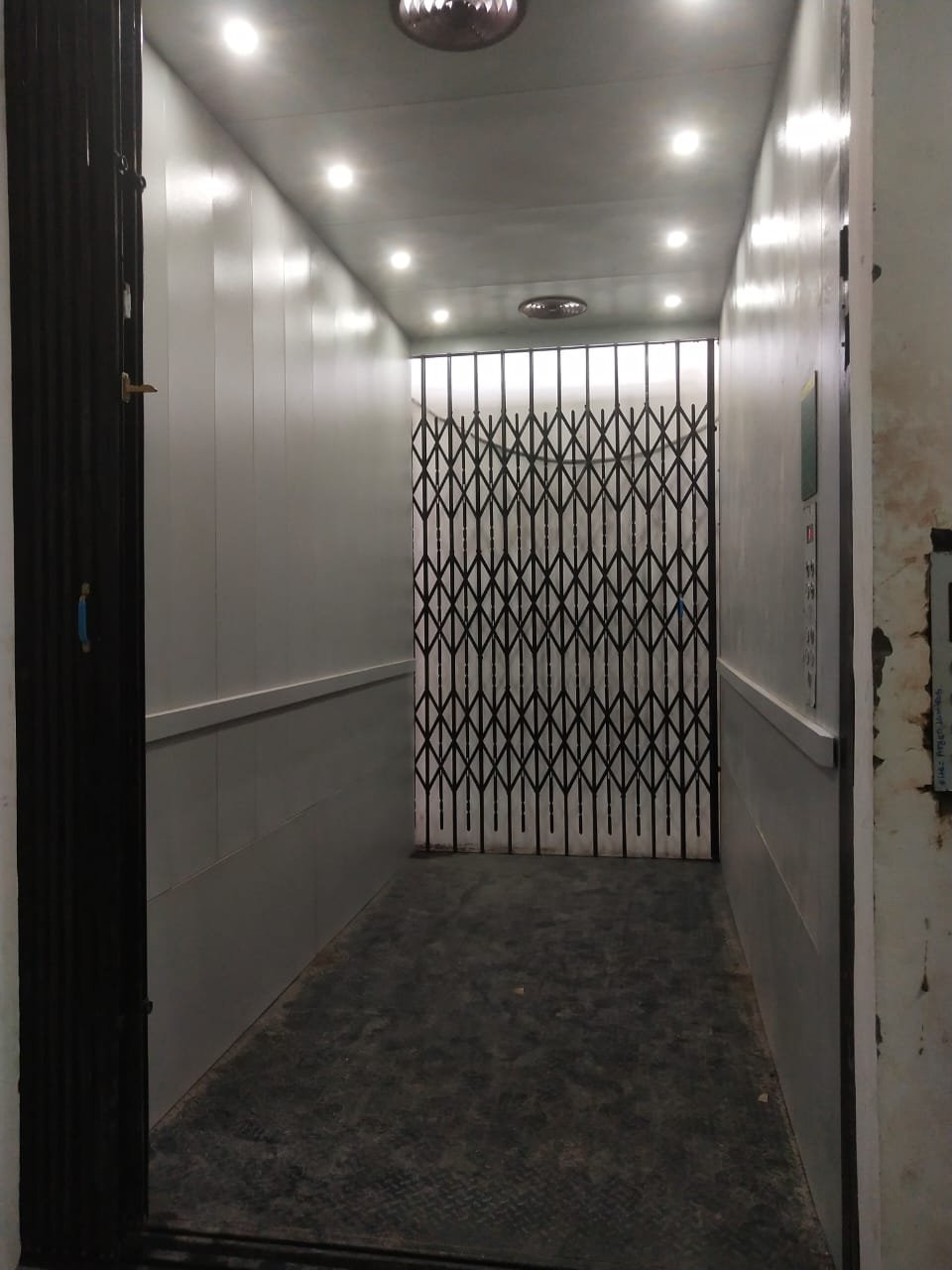

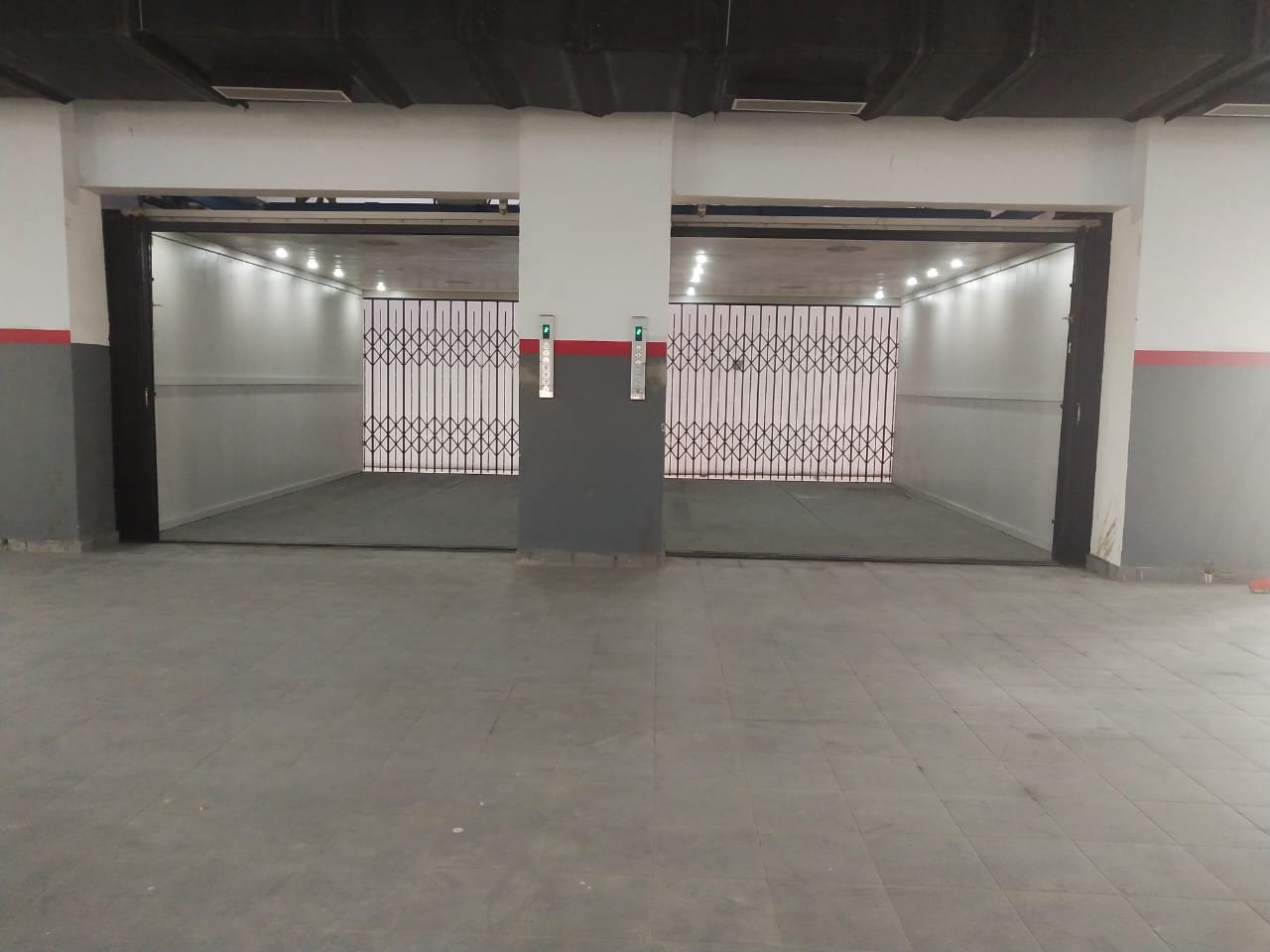

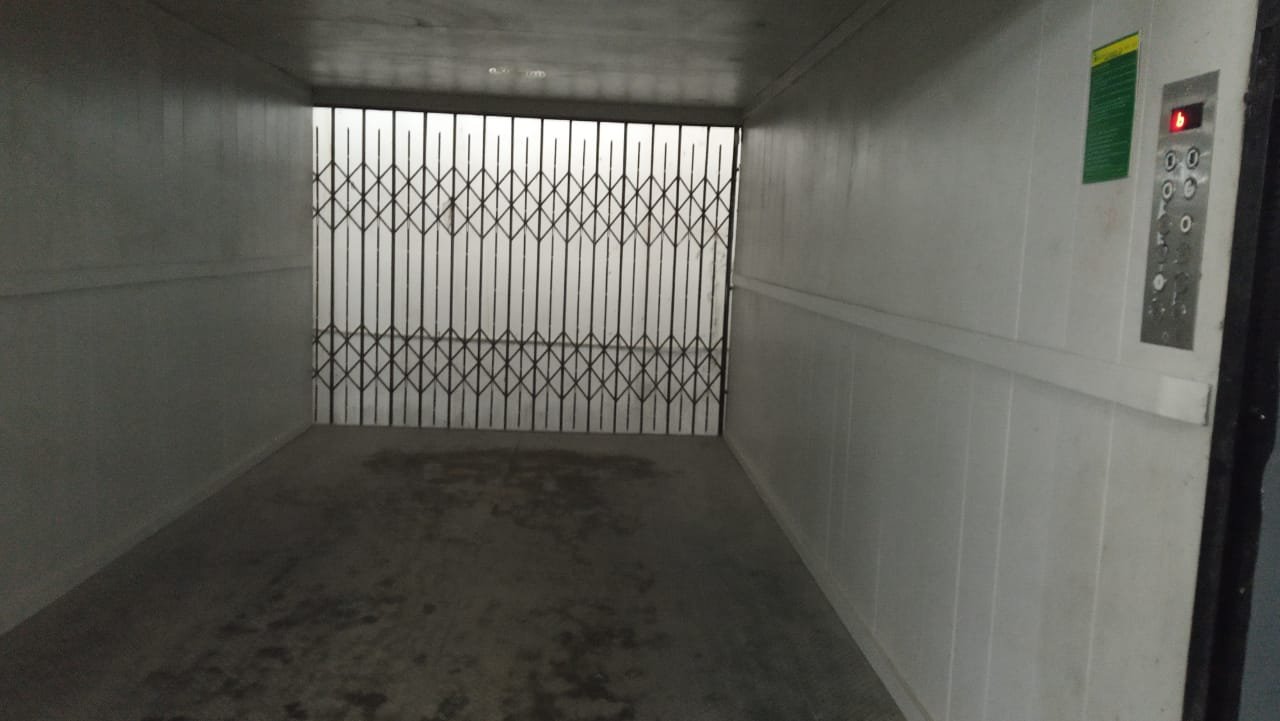

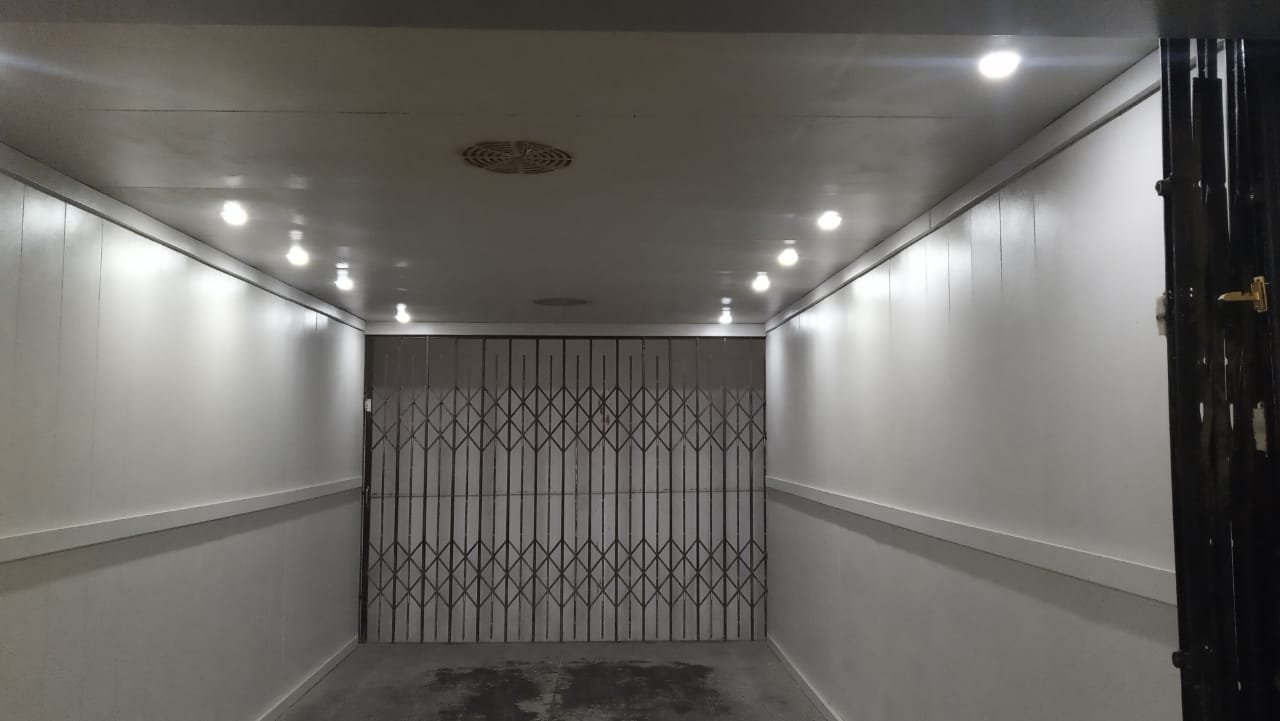

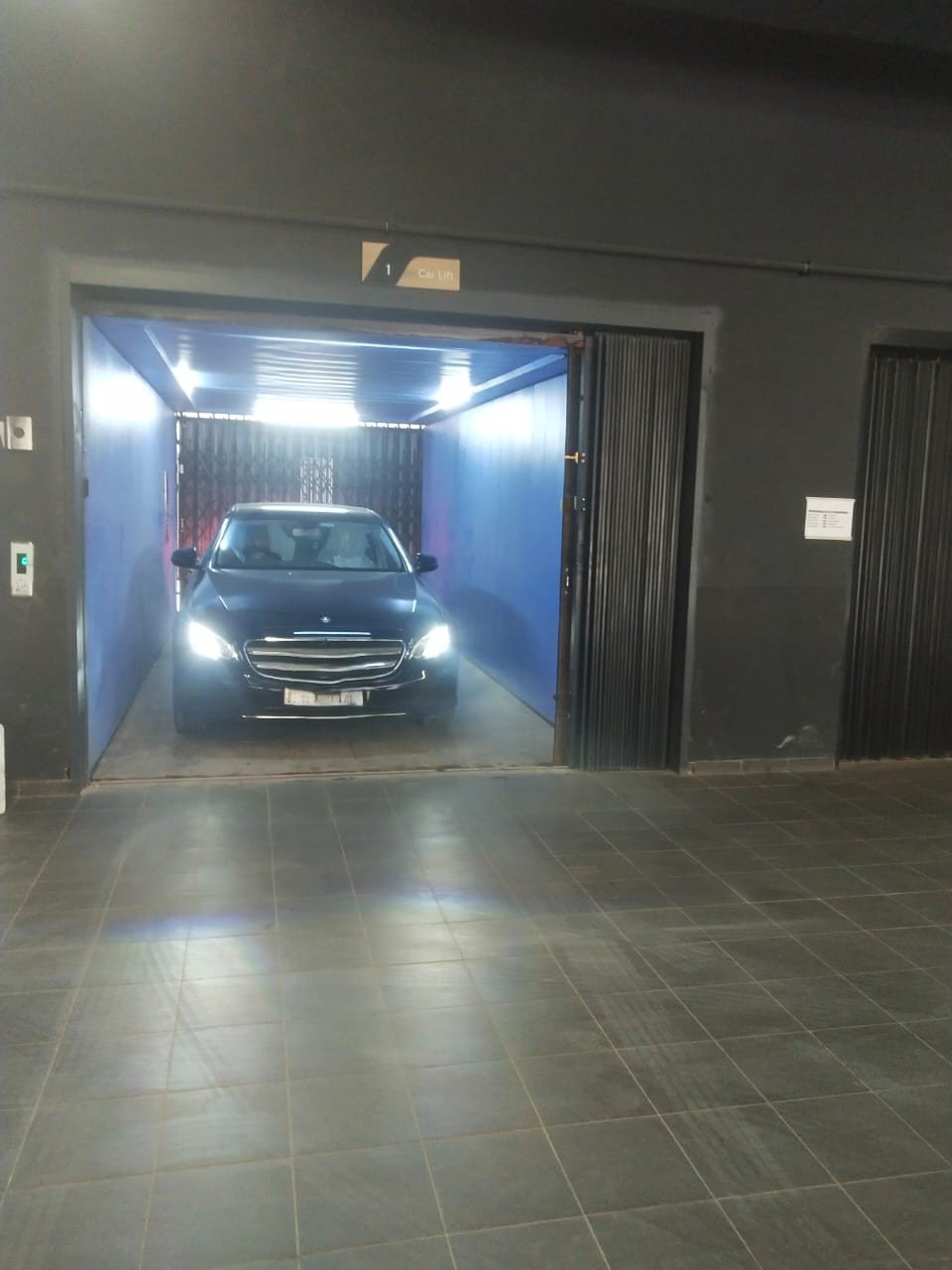

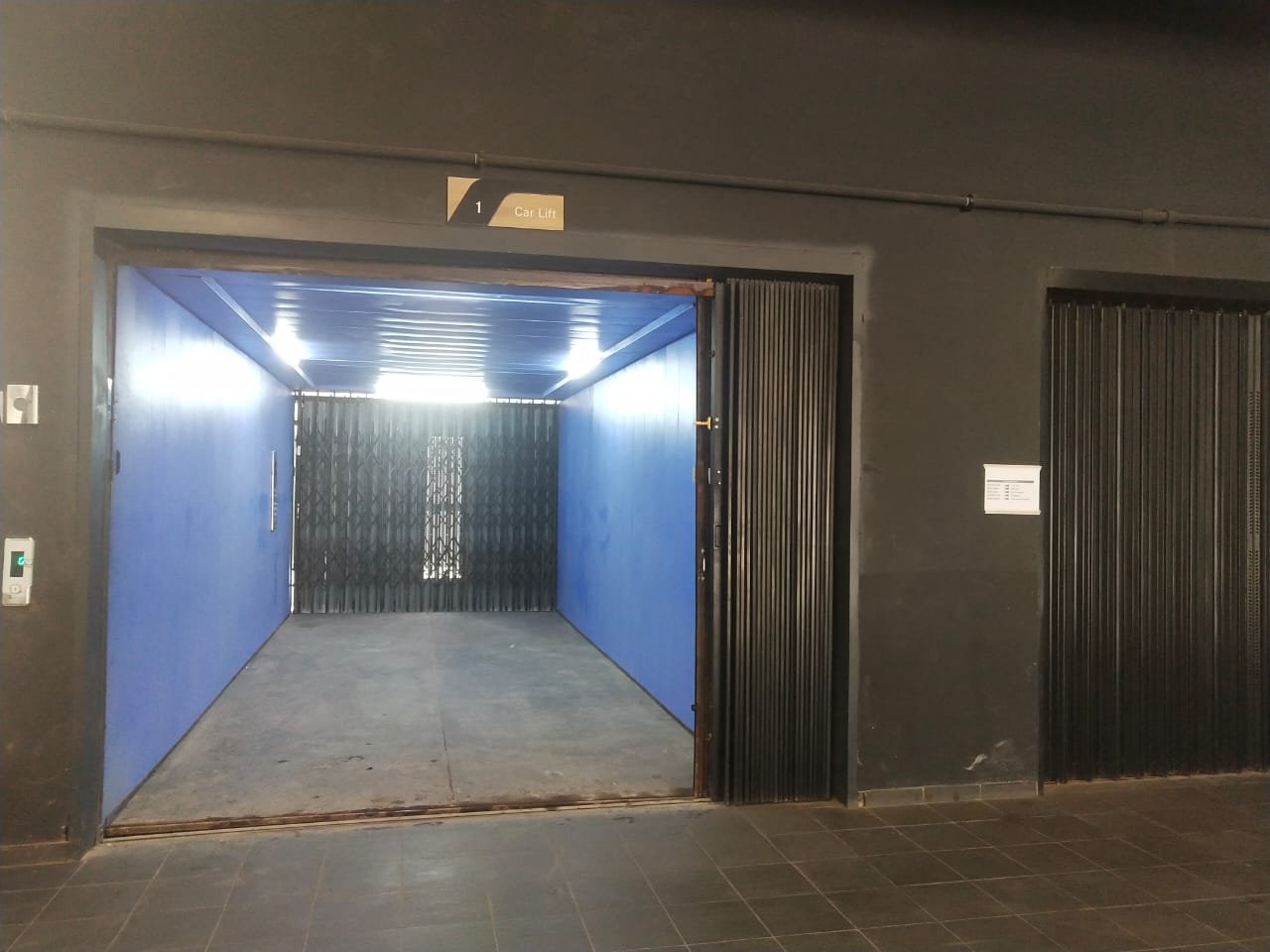

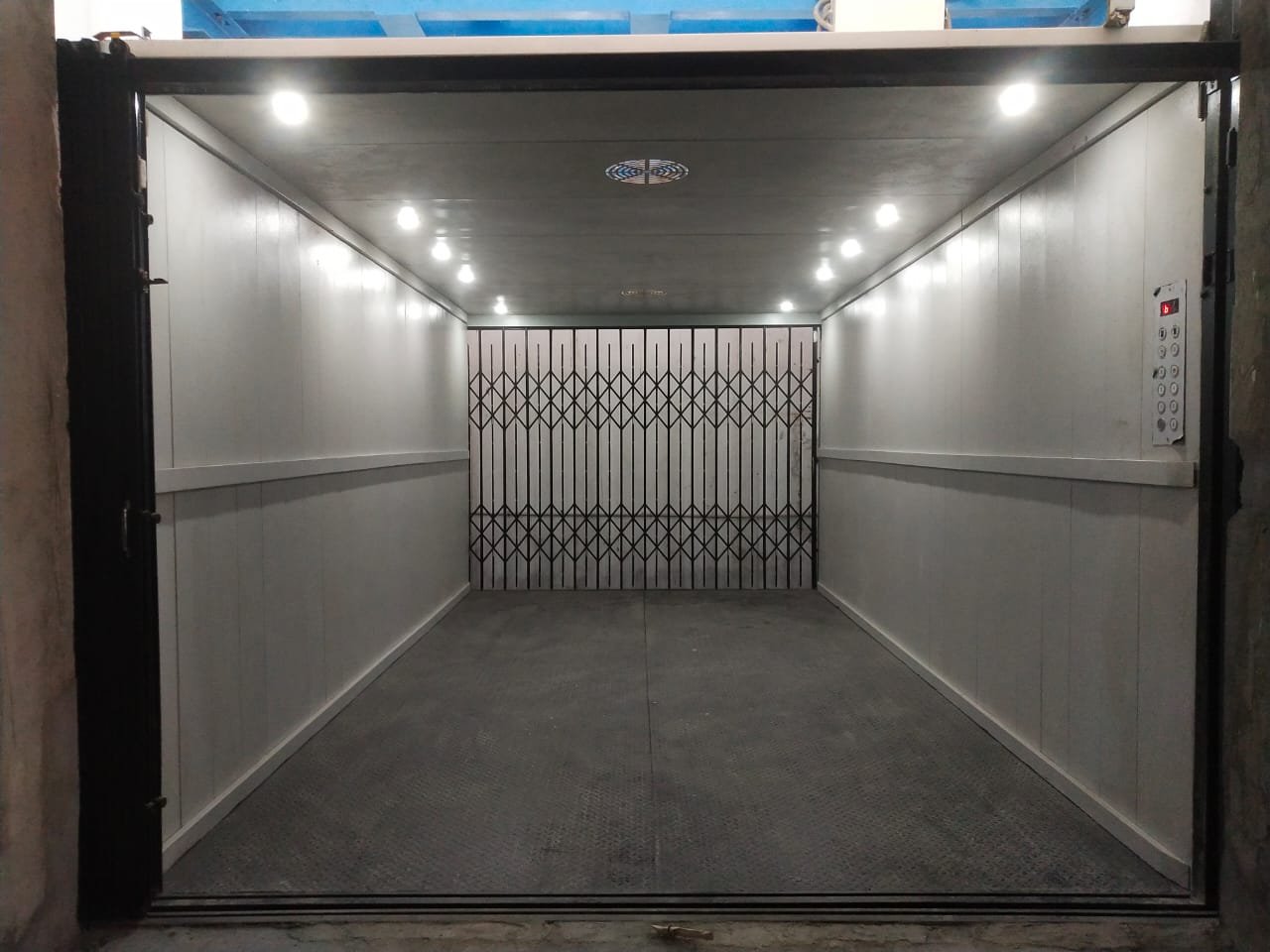

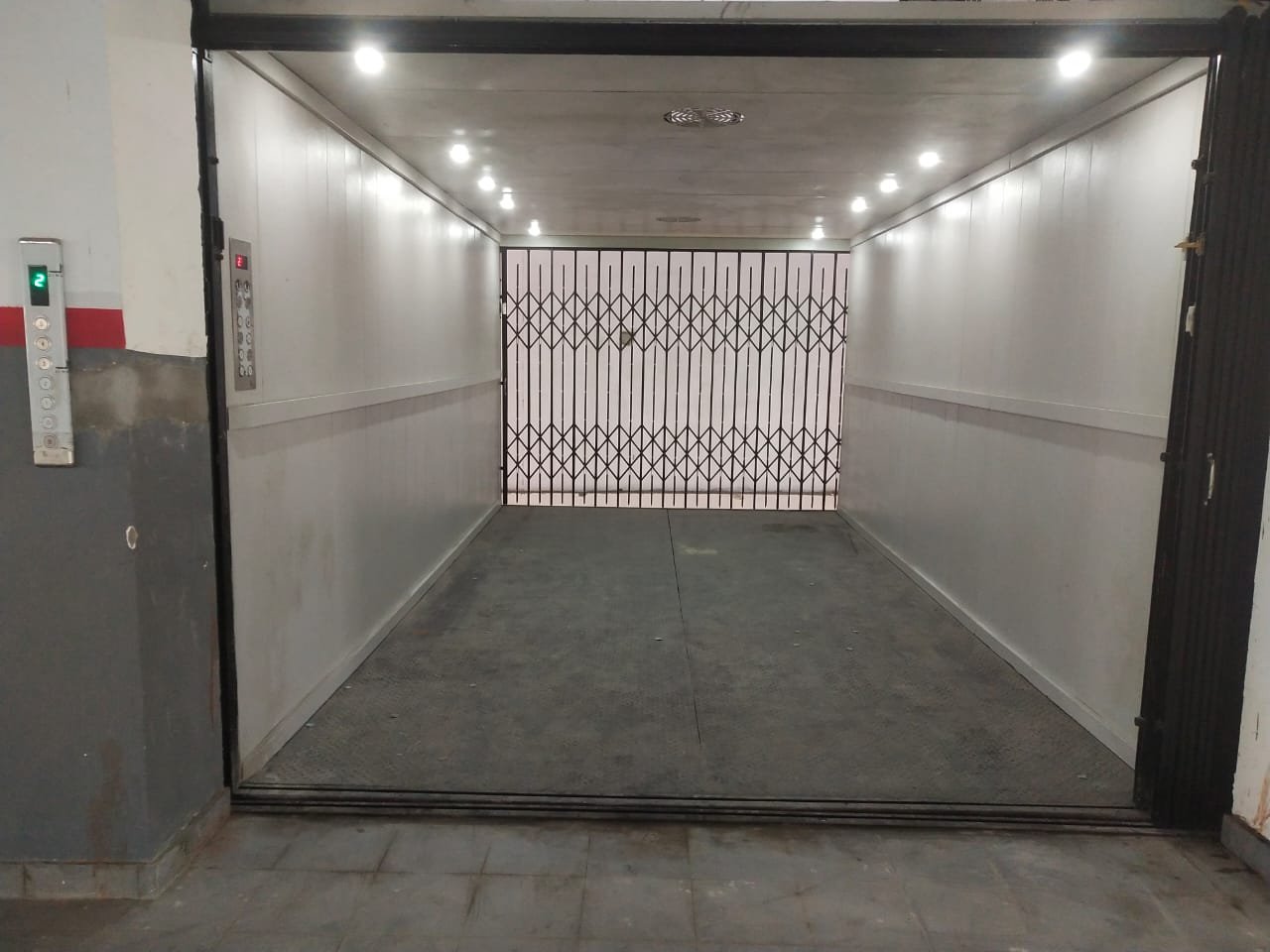

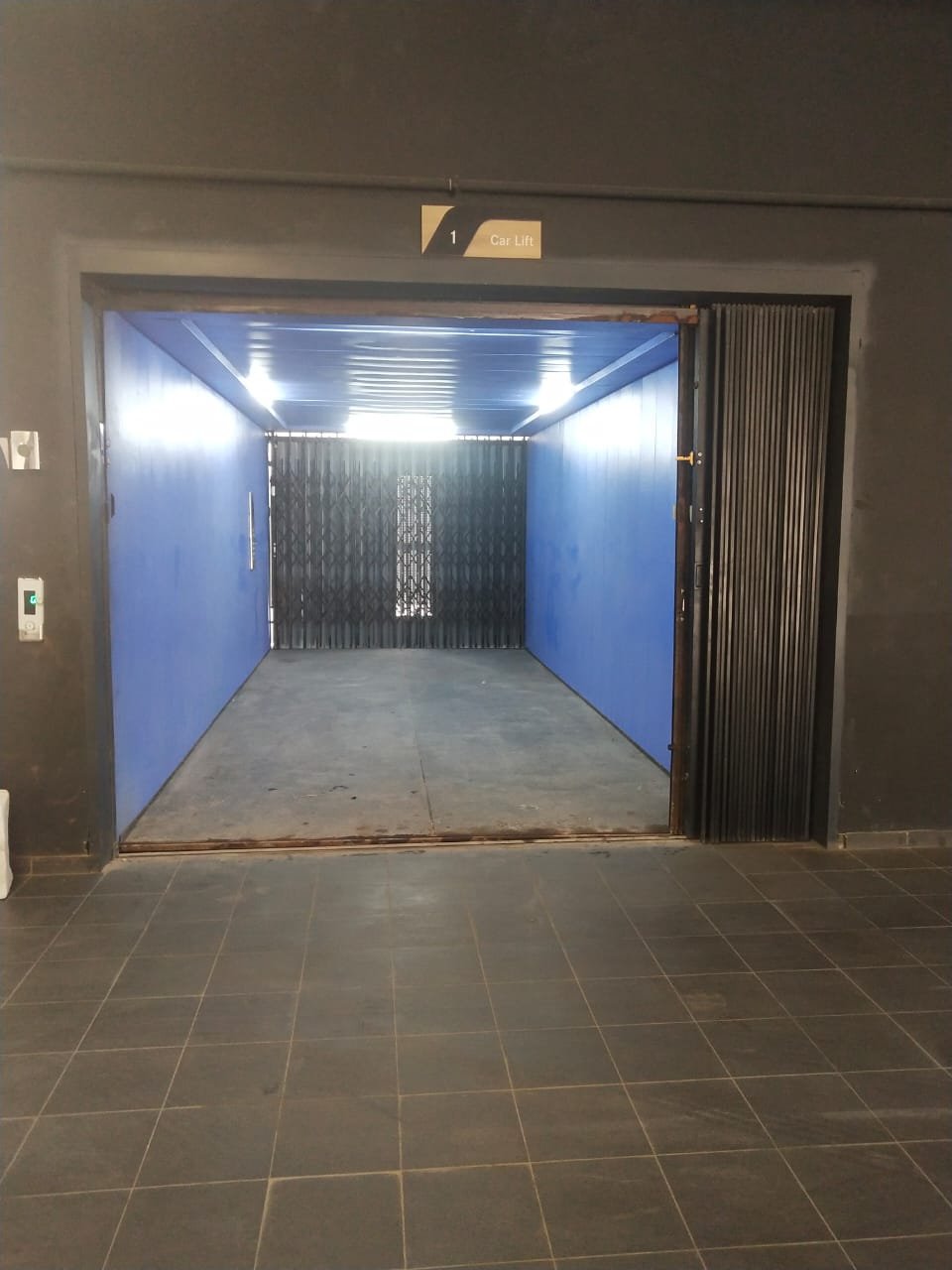

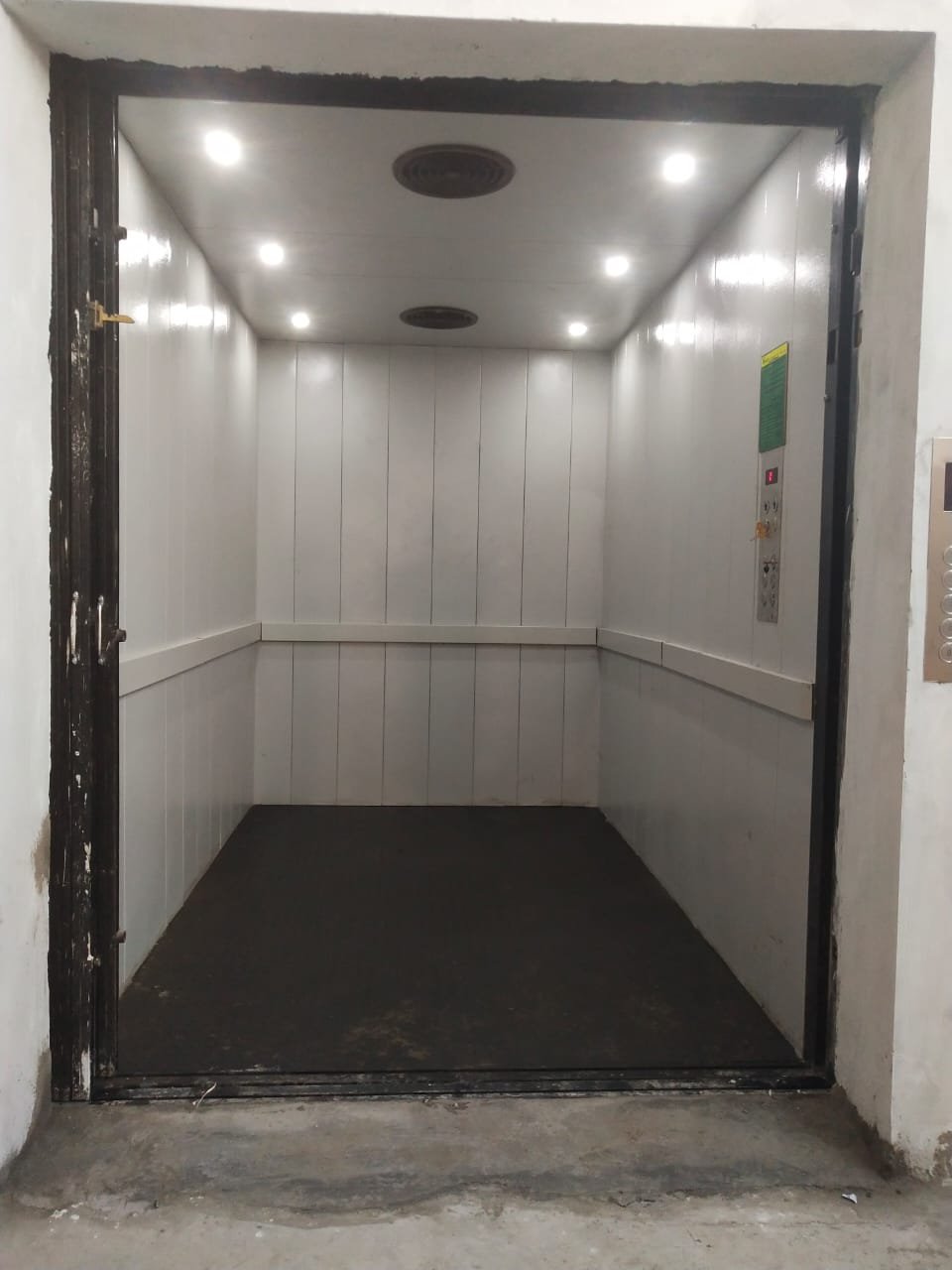

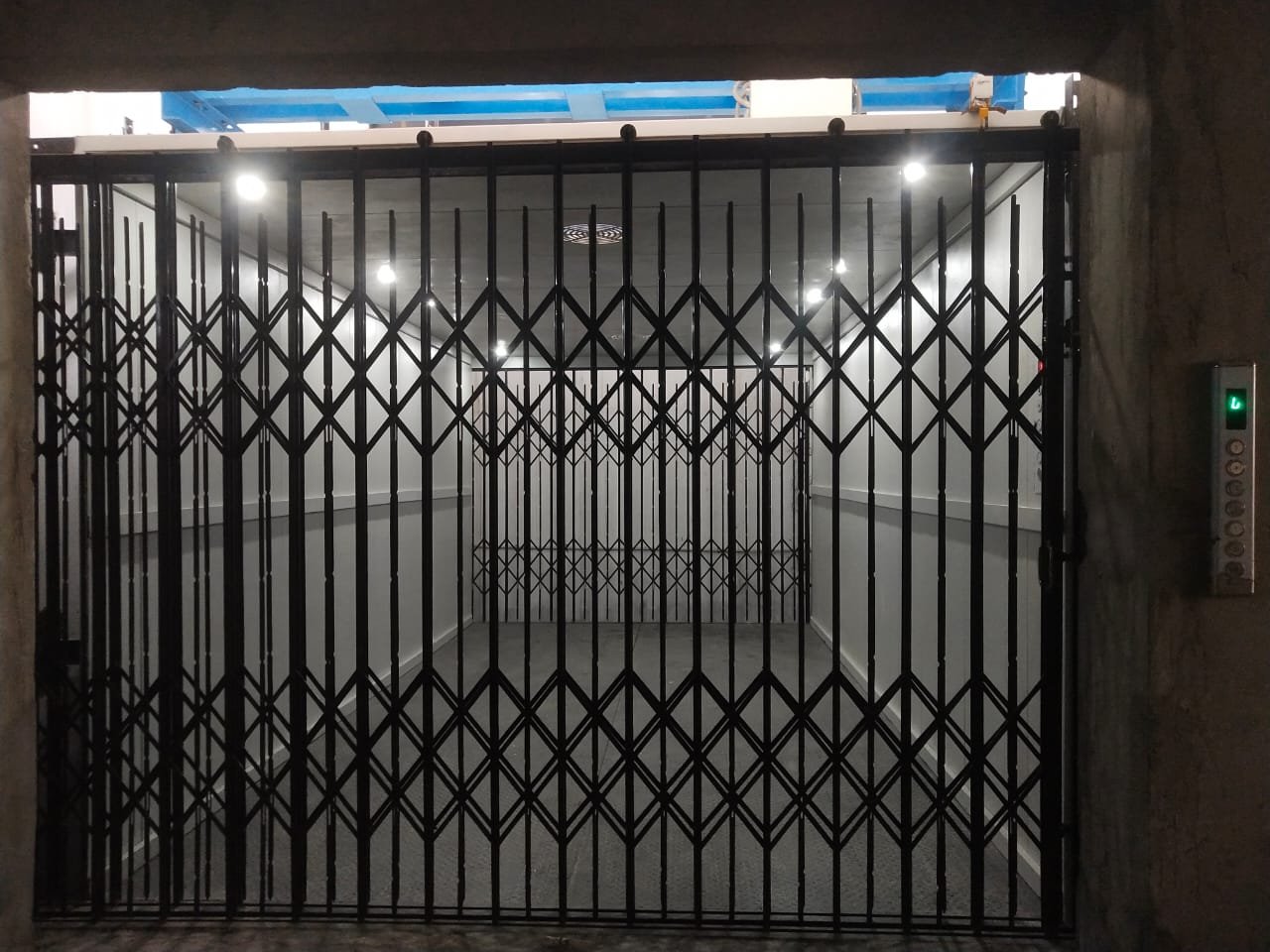

Car Elevator

CLIENT SCOPE - Detailed Requirements

  • Three Phase Power Supply
    Provide Three Phase Power Supply near control panel with M.C.B. & E.L.C.B.
  • Scaffolding
    Provide scaffolding for entire erection period (approximately 15 days)
  • Temporary Power Connection
    Provide temporary power connection for erection & testing work
  • Access Permission
    Give free access in case work needs to be done after office hours

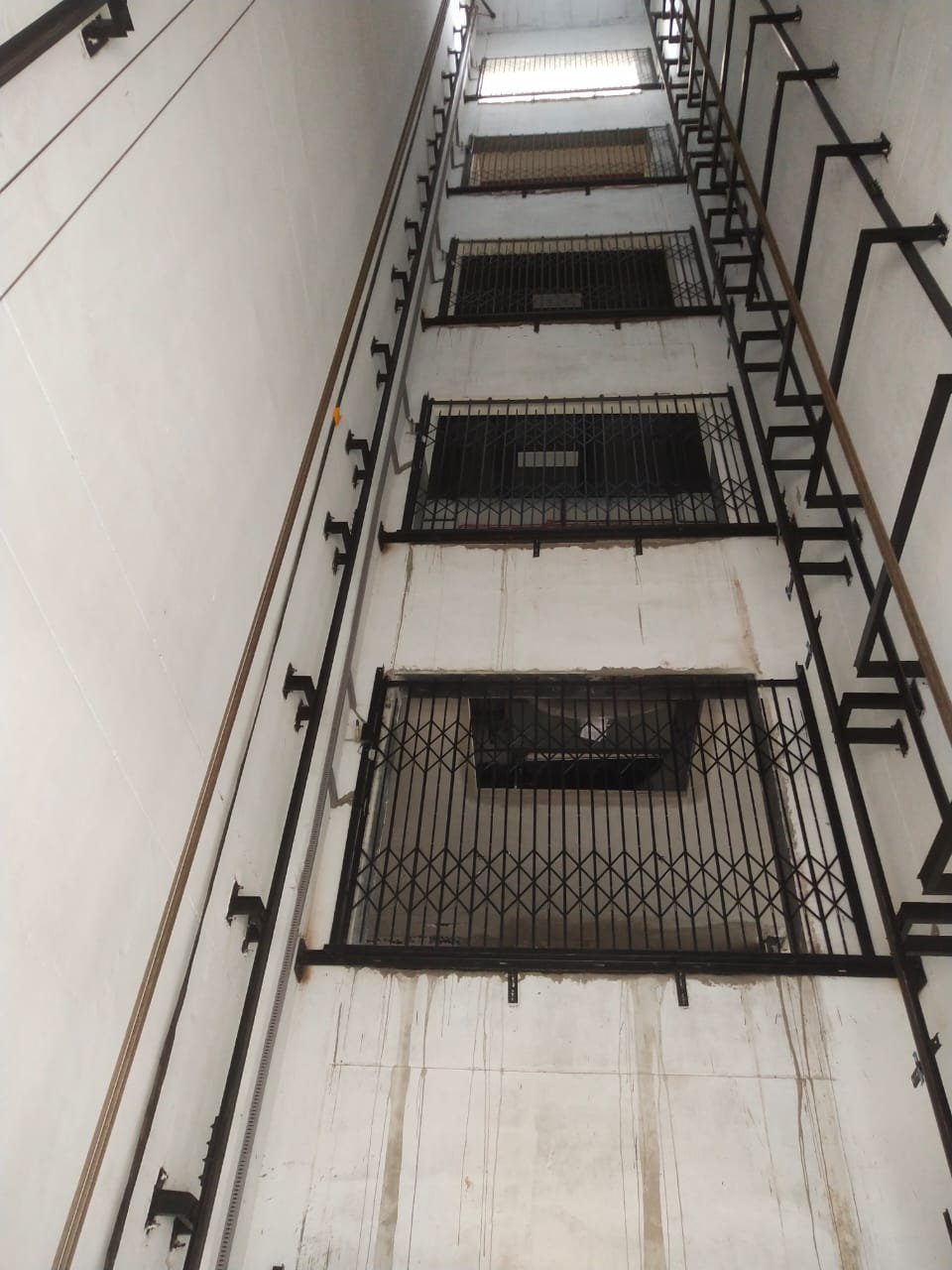

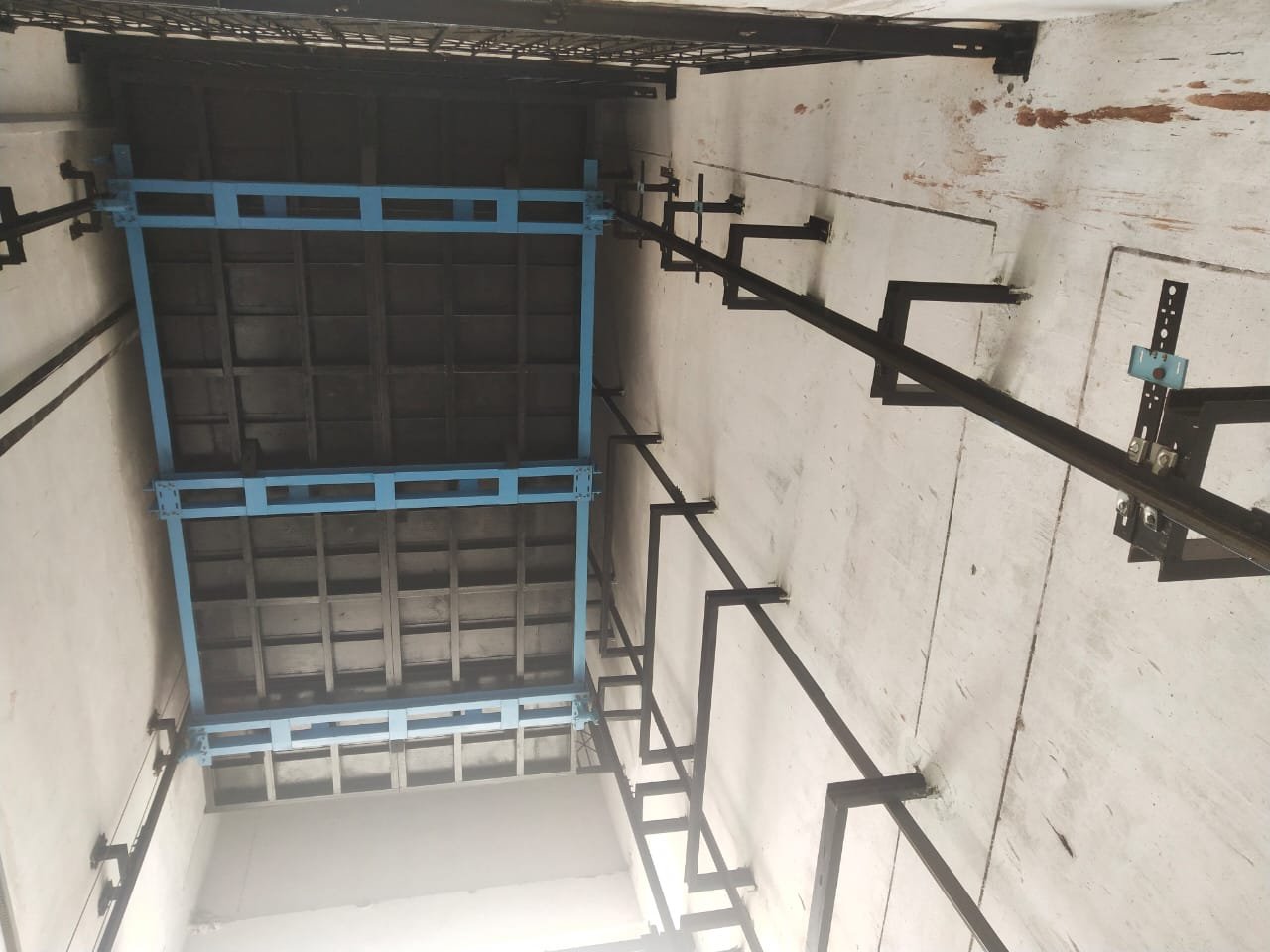

  • Shaft Construction
    Construct the shaft in accordance with GA Drawing
  • Earth Points
    Provide 2 Earth Points near Control Panel
  • Shaft Lighting
    Provide shaft lighting with plug points
  • Civil Material & Mason
    Provide mason with civil material for minor building work including grouting etc. during erection work
  • Machine Room Components
    Access to Machine room, Machine beams, Supporting beams, Machine room door, Machine room ladder, Loading hook etc.
  • Elevator Shaft Wall Finishing
    Provide Elevator Shaft wall to be plastered & painted
  • R.C.C. Column Design
    4 No. R.C.C. Columns to be designed by client for the given load

Quick Reference

  • Construct the shaft (230mm brick / 150mm RCC Walls) in accordance with our GA drawings.
  • Mason with material for minor builder's work such as pocket cutting, grouting, door fixing, etc.
  • Temporary power connection for erection & testing work.
  • Scaffolding till the time of erection for about 30 days.
  • Access to Machine room (if applicable).
  • Power supply (415 Volts, 3 Phase, 4 Wires with Neutral, 50 Hz. & 230 Volts 1 Phase) near our control panel with MCB/JUNCTION BOX.
