Capsule / Panoramic Elevators

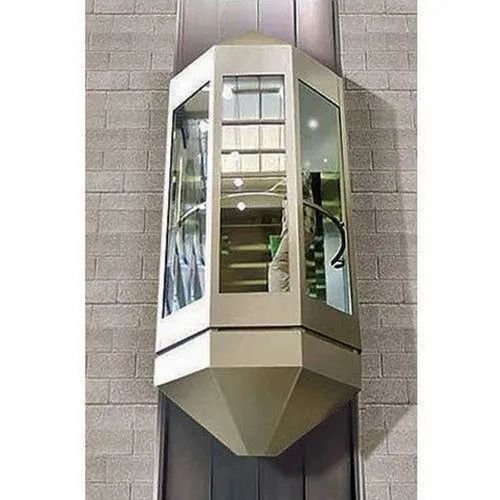

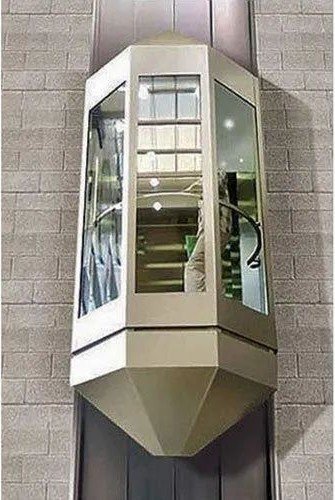

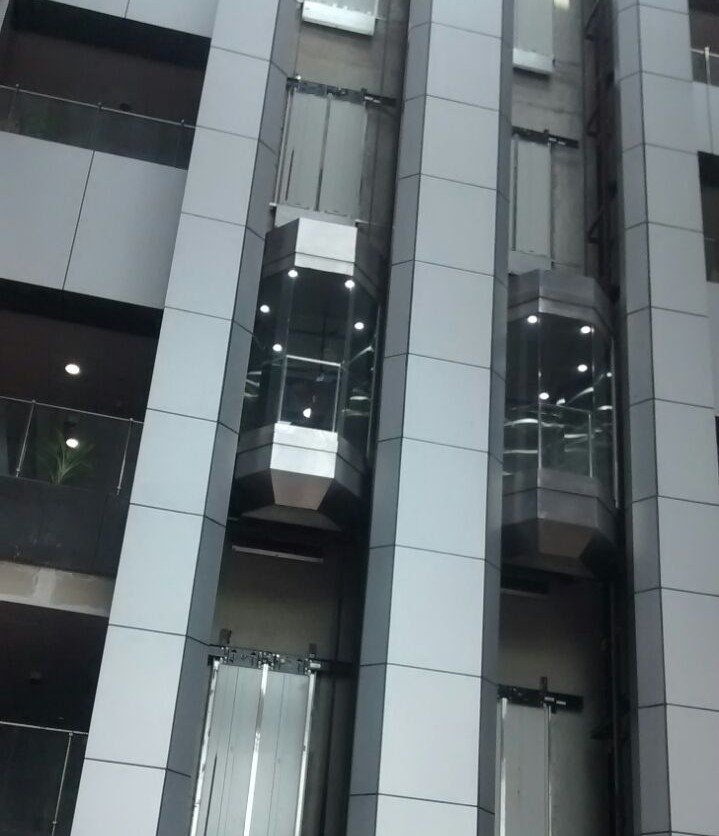

Capsule Elevator is essentially installed at a place where elevation of building is to be enhanced with display of moving lift and passenger is provided with panoramic view of surroundings. Capsule elevator normally comes in 5 and 3 Glass panel. Capsule Elevator is normally preferred in shopping malls (to give view of items displayed), 5 star hotels (to provide lobby view) and high rise residential buildings.
Capsule elevators are the perfect combination of aesthetics, innovation, and high performance, designed to enhance the architectural beauty of any building. Commonly installed in hotels, malls, corporate offices, and high-end residences, these elevators provide a panoramic view while ensuring a smooth, safe, and comfortable ride. With their sleek glass panels, elegant interiors, and advanced technology, capsule elevators offer both functionality and visual appeal. Engineered for silent operation and energy efficiency, they seamlessly integrate with modern infrastructure, adding a touch of sophistication. Whether you seek customized designs, high-speed performance, or premium-quality materials, our capsule elevators are built to impress and endure.

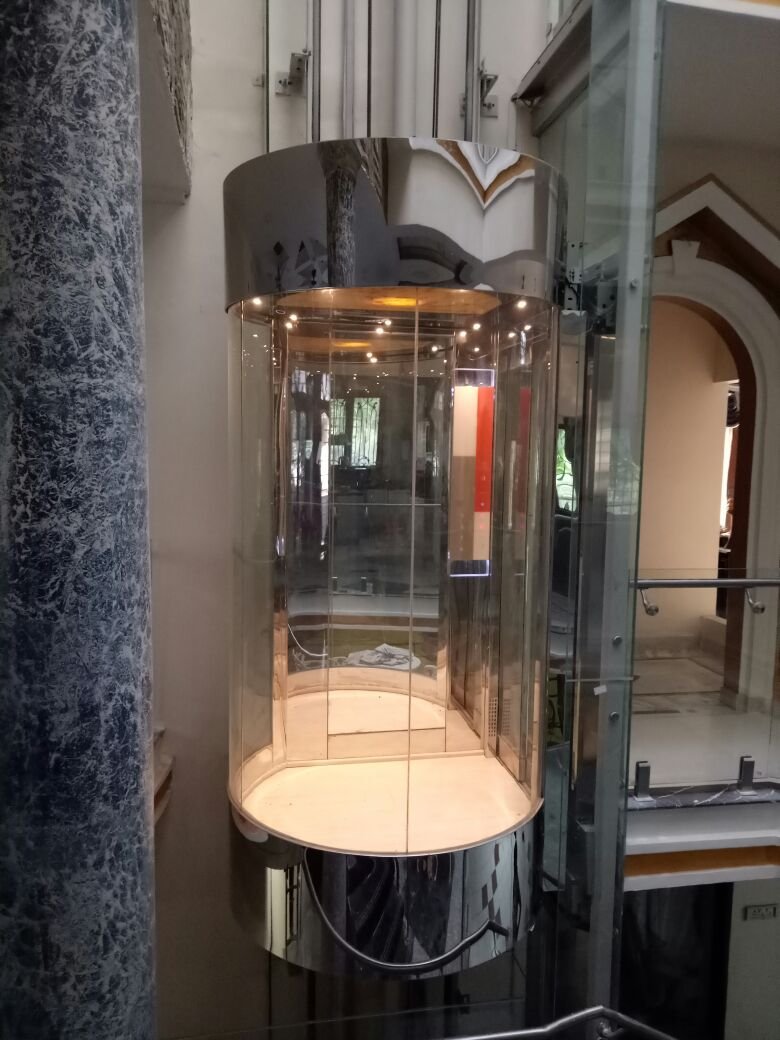

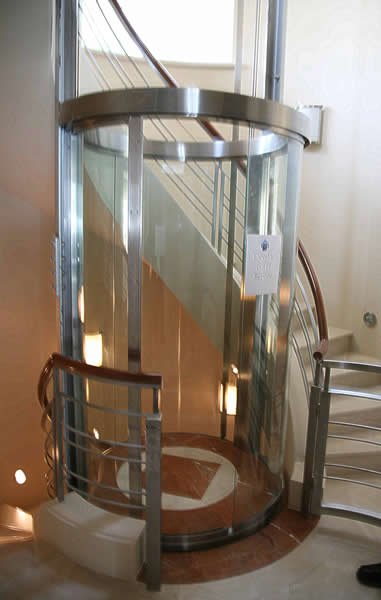

With their panoramic glass cabins, capsule elevators offer a 360-degree view, creating a futuristic and luxurious experience for passengers. Built with high-quality materials and advanced safety features, they ensure silent, stable, and energy-efficient operation. The sleek and modern designs can be customized to complement the building’s architecture, adding a touch of sophistication.

View Civil Dimension

CAPSULE ELEVATOR 5 GLASS PANEL

Persons	LOAD	A	B	C	D	E	F	G
13	884 KG	900	2100	2700	1200	800	2800	1600
16	1088KG	1100	2200	3000	1200	900	3000	1700

CAPSULE ELEVATOR 3 GLASS PANEL

Persons	LOAD	A	B	C	D	E	F	G
8	544 kg	1100	1400	2100	1300	800	2300	1400
10	680 kg	1350	1400	2400	1300	800	2200	1650
13	884 kg	1350	1700	2400	1600	900	2500	1650
16	1000 kg	1600	1700	2600	1600	1000	2500	1900
20	1360 kg	1600	2000	2800	1900	1000	2800	1900

CLIENT SCOPE - Detailed Requirements

Three Phase Power Supply

Provide Three Phase Power Supply near control panel with M.C.B. & E.L.C.B.
Scaffolding

Provide scaffolding for entire erection period (approximately 15 days)
Temporary Power Connection

Provide temporary power connection for erection & testing work
Access Permission

Give free access in case work needs to be done after office hours
Shaft Construction

Construct the shaft in accordance with GA Drawing
Earth Points

Provide 2 Earth Points near Control Panel
Shaft Lighting

Provide shaft lighting with plug points
Civil Material & Mason

Provide mason with civil material for minor building work including grouting etc. during erection work
Machine Room Components

Access to Machine room, Machine beams, Supporting beams, Machine room door, Machine room ladder, Loading hook etc.
Elevator Shaft Wall Finishing

Provide Elevator Shaft wall to be plastered & painted
R.C.C. Column Design

4 No. R.C.C. Columns to be designed by client for the given load

Quick Reference

Construct the shaft (230mm brick / 150mm RCC Walls) in accordance with our GA drawings.
Mason with material for minor builder's work such as pocket cutting, grouting, door fixing, etc.
Temporary power connection for erection & testing work.
Scaffolding till the time of erection for about 30 days.
Access to Machine room (if applicable).
Power supply (415 Volts, 3 Phase, 4 Wires with Neutral, 50 Hz. & 230 Volts 1 Phase) near our control panel with MCB/JUNCTION BOX.
