Dumb Waiters

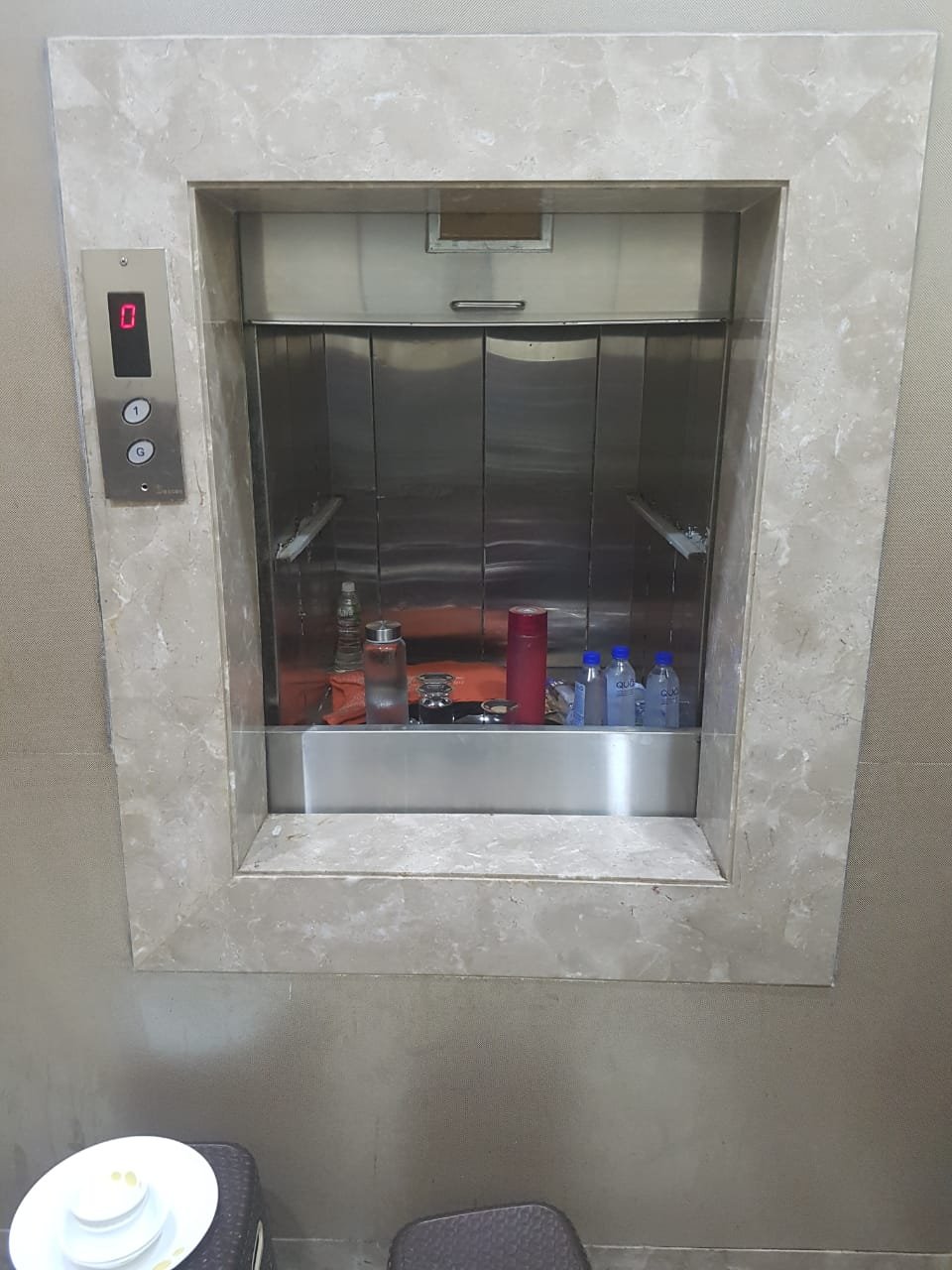

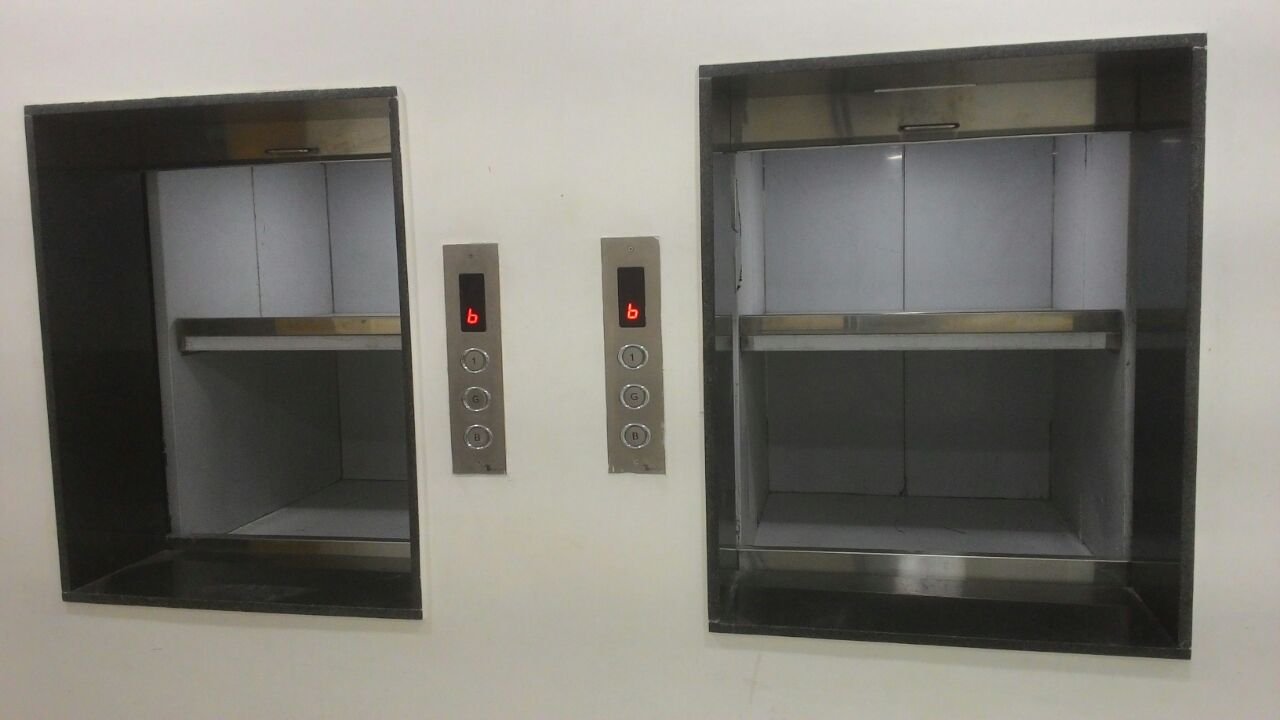

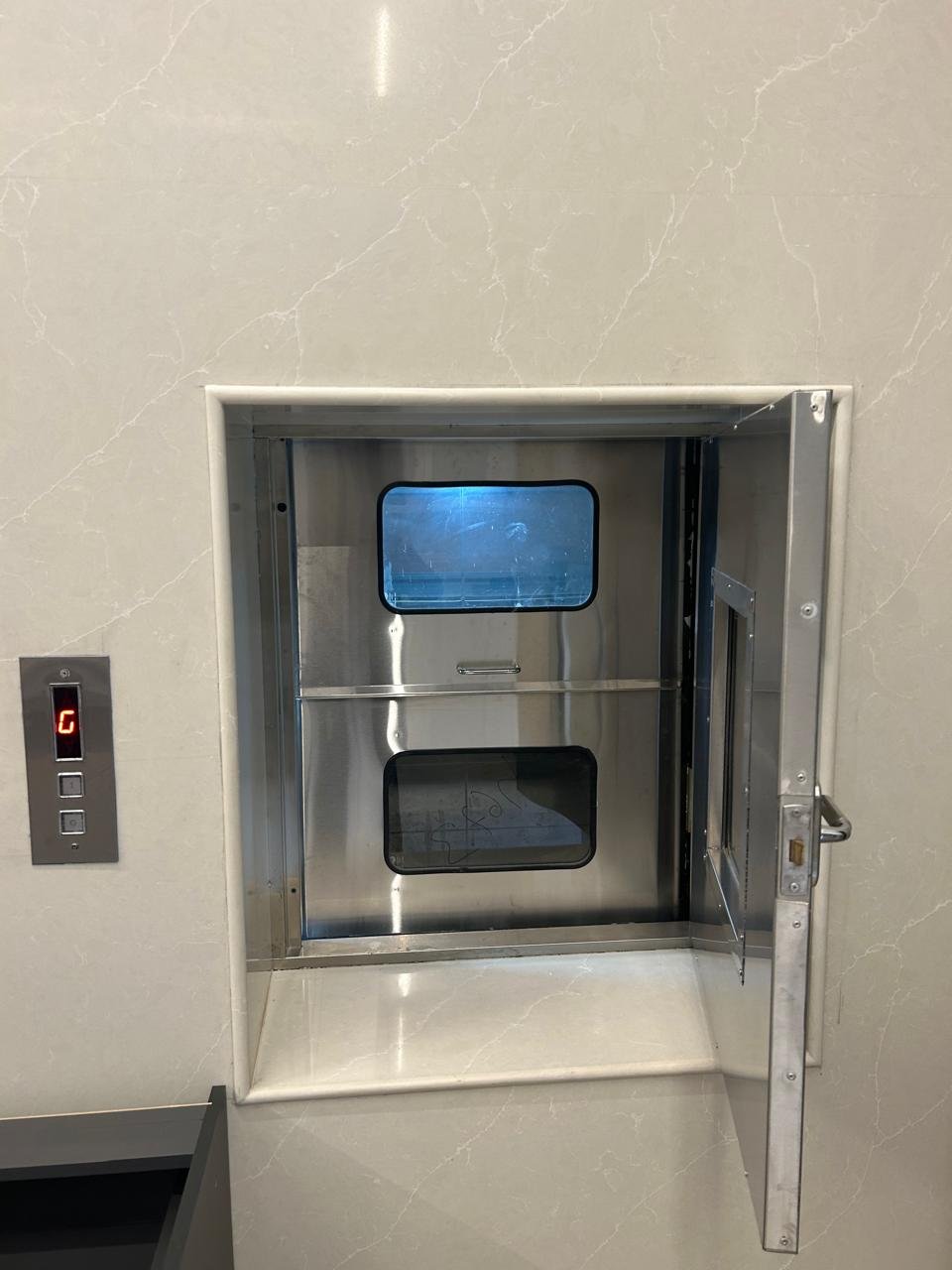

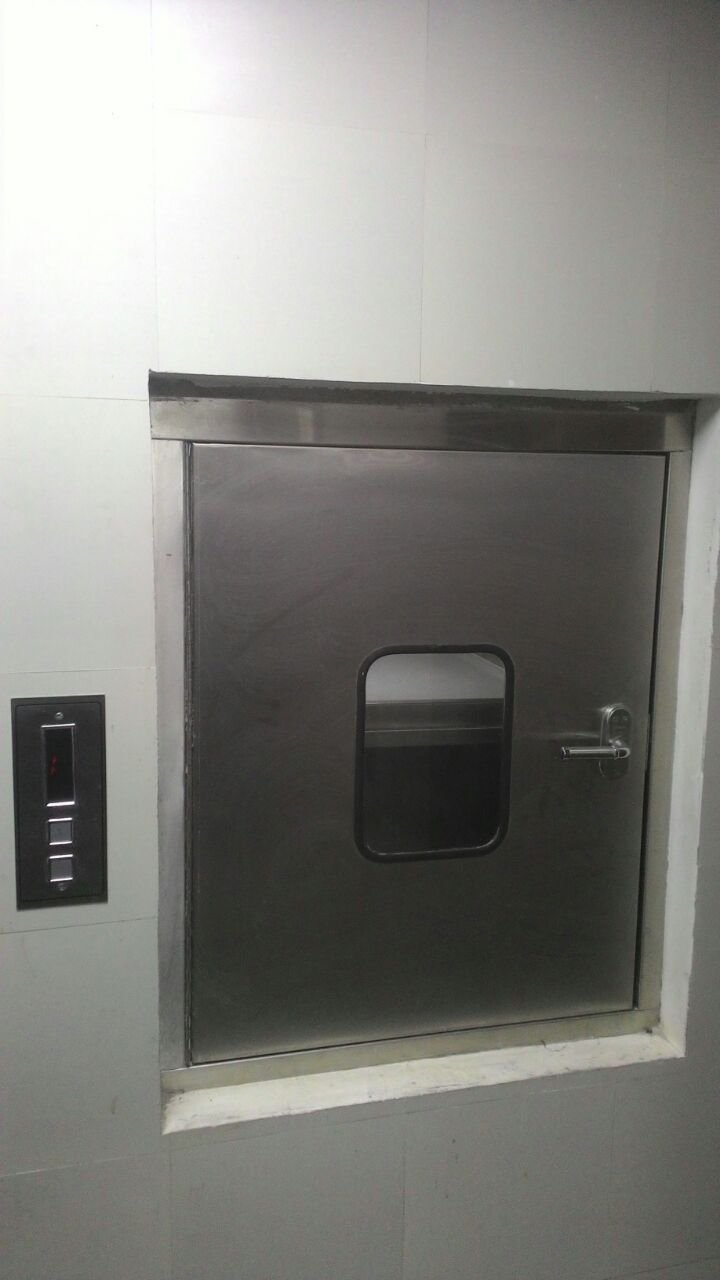

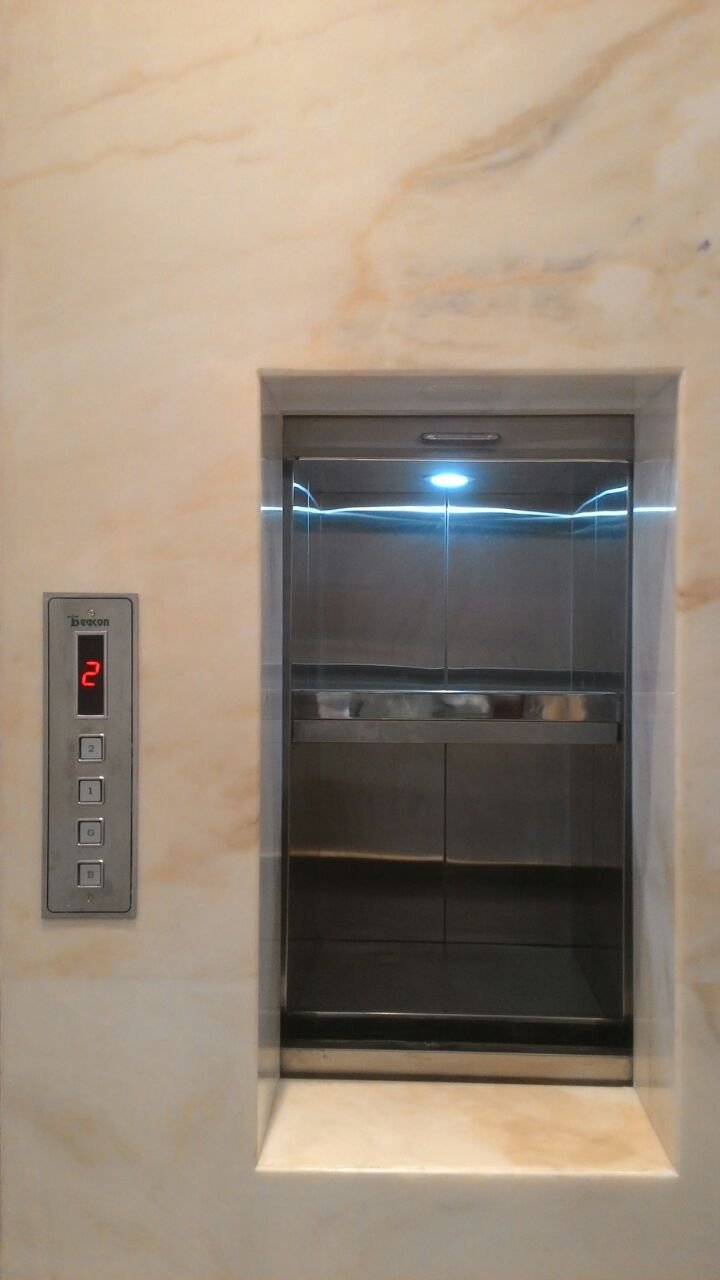

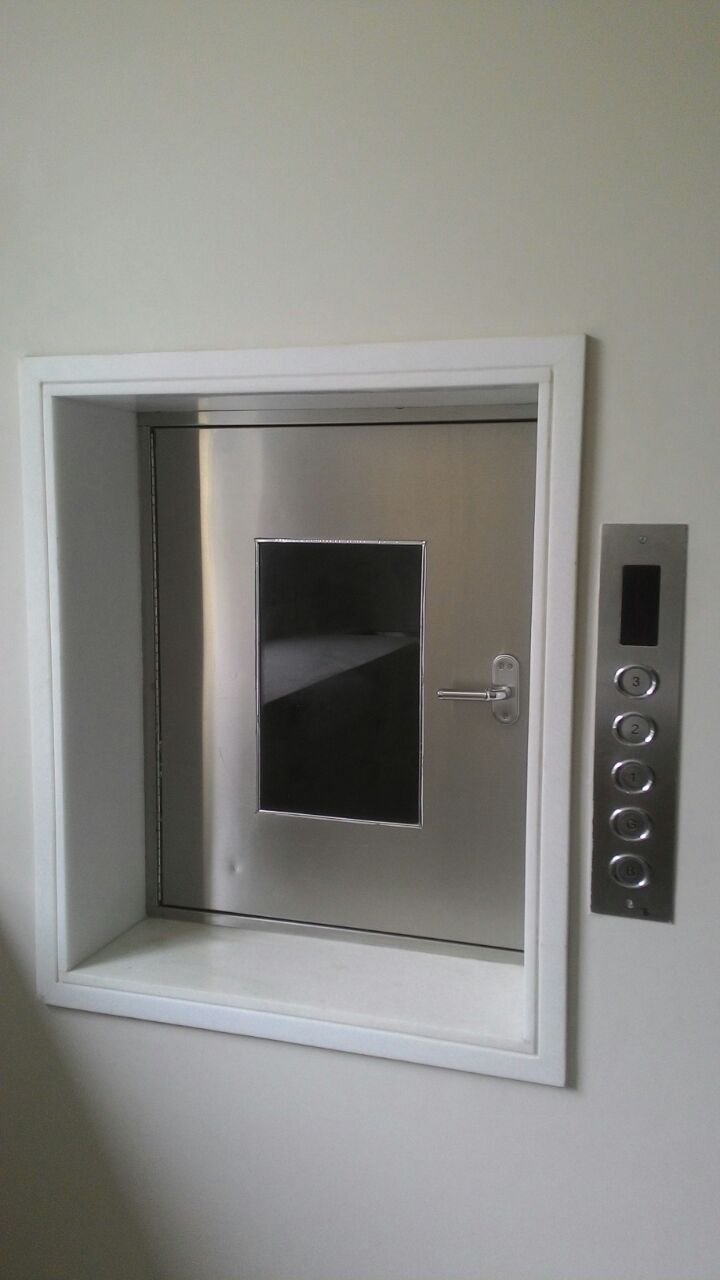

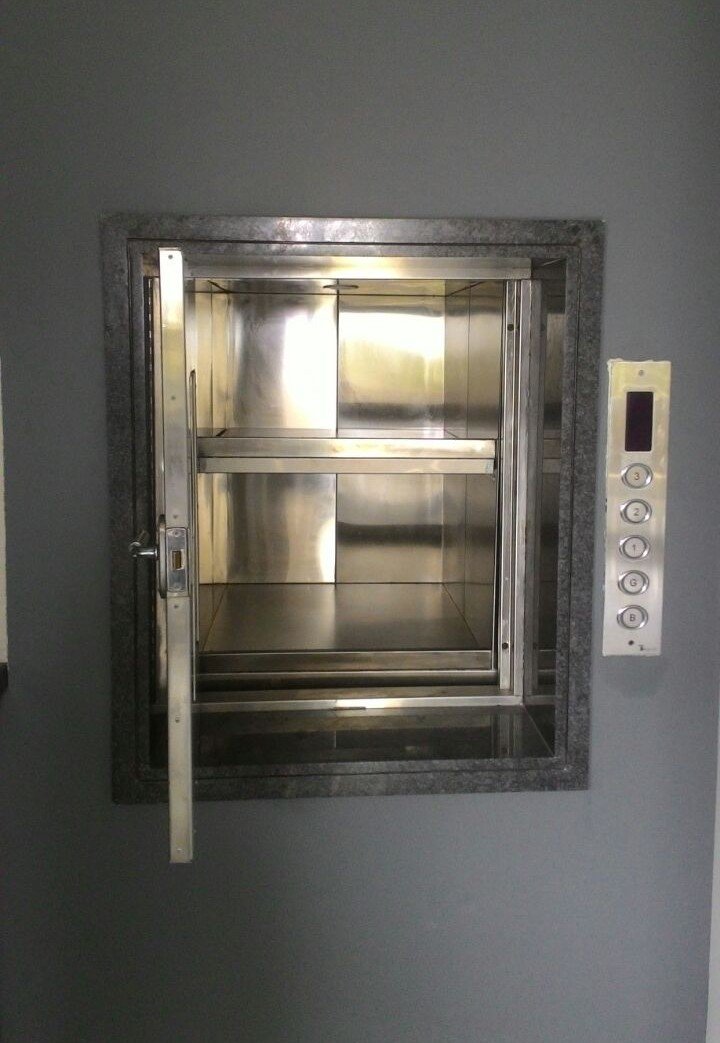

A small freight elevator, often called a Dumb-Waiter, is designed for carrying lightweight freight, such as dishes in a kitchen or books in a multistory rack assembly. Passengers are not permitted in dumbwaiters for safety reasons. These elevators are typically powered by a small electric motor with a counterweight, with a capacity limited to about 250 kg. Alternatively, some Dumb-Waiters use a drum-operated roped pulley system. Their compact design makes them ideal for spaces where larger elevators are impractical, offering an efficient solution for vertical transport of small goods in various settings.

View Civil Dimension

Usage (Dumb-Waiters)

Dumb-Waiters are widely used in the restaurant business, where they transport food and dishes between floors, improving service efficiency. They are also employed in libraries to lift books across multiple floors, reducing manual effort. In homes, they transfer goods like groceries or laundry between levels. Hospitals use them to move lightweight equipment or supplies between departments. Additionally, in office towers, Dumb-Waiters transport mail or small items, streamlining internal logistics. Their versatility makes them valuable in settings requiring small-scale vertical transport, enhancing workflow and reducing physical strain in both commercial and residential environments.

Specifications (Beacon Dumb-Waiters)

Beacon Dumb-Waiters handler loads from 50 to 250 kg, operating at speeds of 0.25 to 0.50 meters per second, balancing efficiency and safety. The control system choice depends on the number of floors served and service intensity. For instance, a busy restaurant may need a robust system, while a home might require a simpler setup. Beacon offers various control types, including call-and-send and multi-button systems, ensuring user-friendly operation.

Optional Features

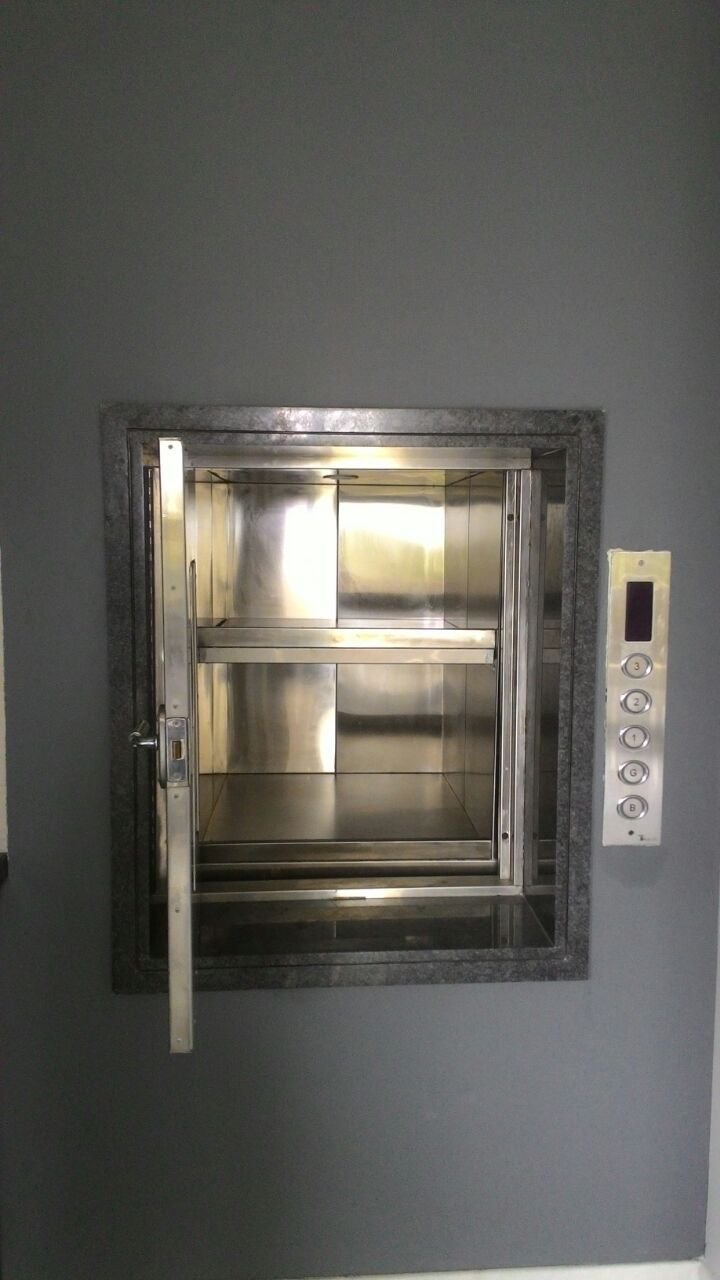

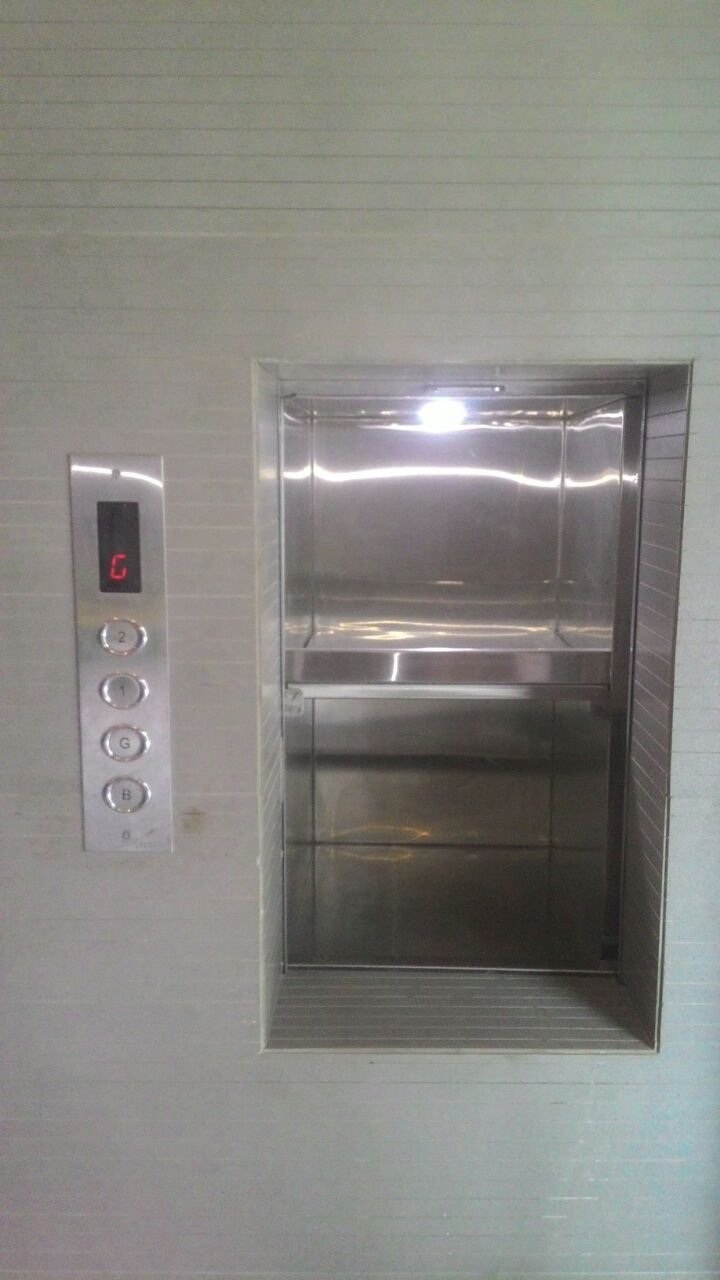

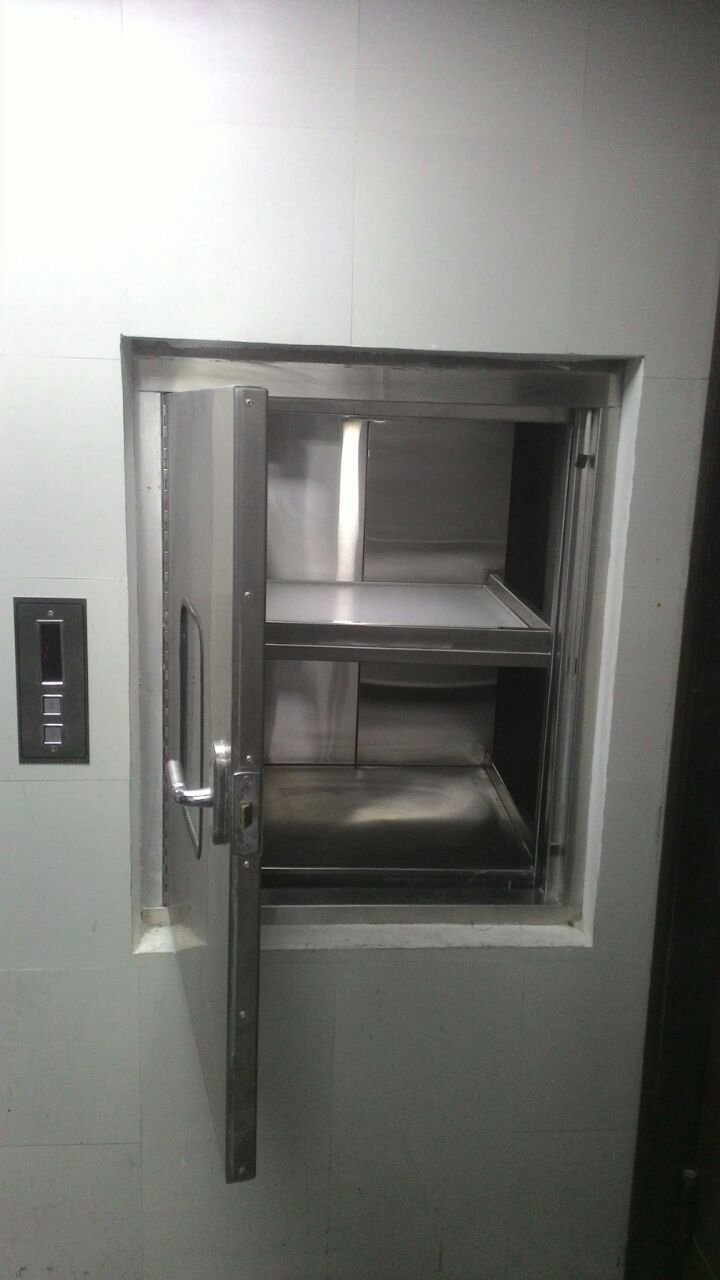

Beacon Dumb-Waiters offer optional features to enhance functionality. A lift with a car which moves in guides in a vertical direction; has net floor area of 1 m2, total inside height of 1.25 m, whether m not provided with fixed or removable shelves; and capacity not exceeding 250 kg; and is exclusively used for carrying materials and shall not carry any person. A two-speed control system with an ACVVVF drive allows operation at different speeds for flexibility. Signals indicating the car’s location help users track its position, especially in multistory buildings. Audio-visual signals can also be added to alert users of the car’s arrival, improving safety and efficiency. Additionally, a removable shelf provides flexibility for transporting items of varying sizes, as it can be adjusted or removed as needed. These features make the Dumb-Waiter more versatile, catering to diverse needs while ensuring ease of use and safety in various environments.

Customization

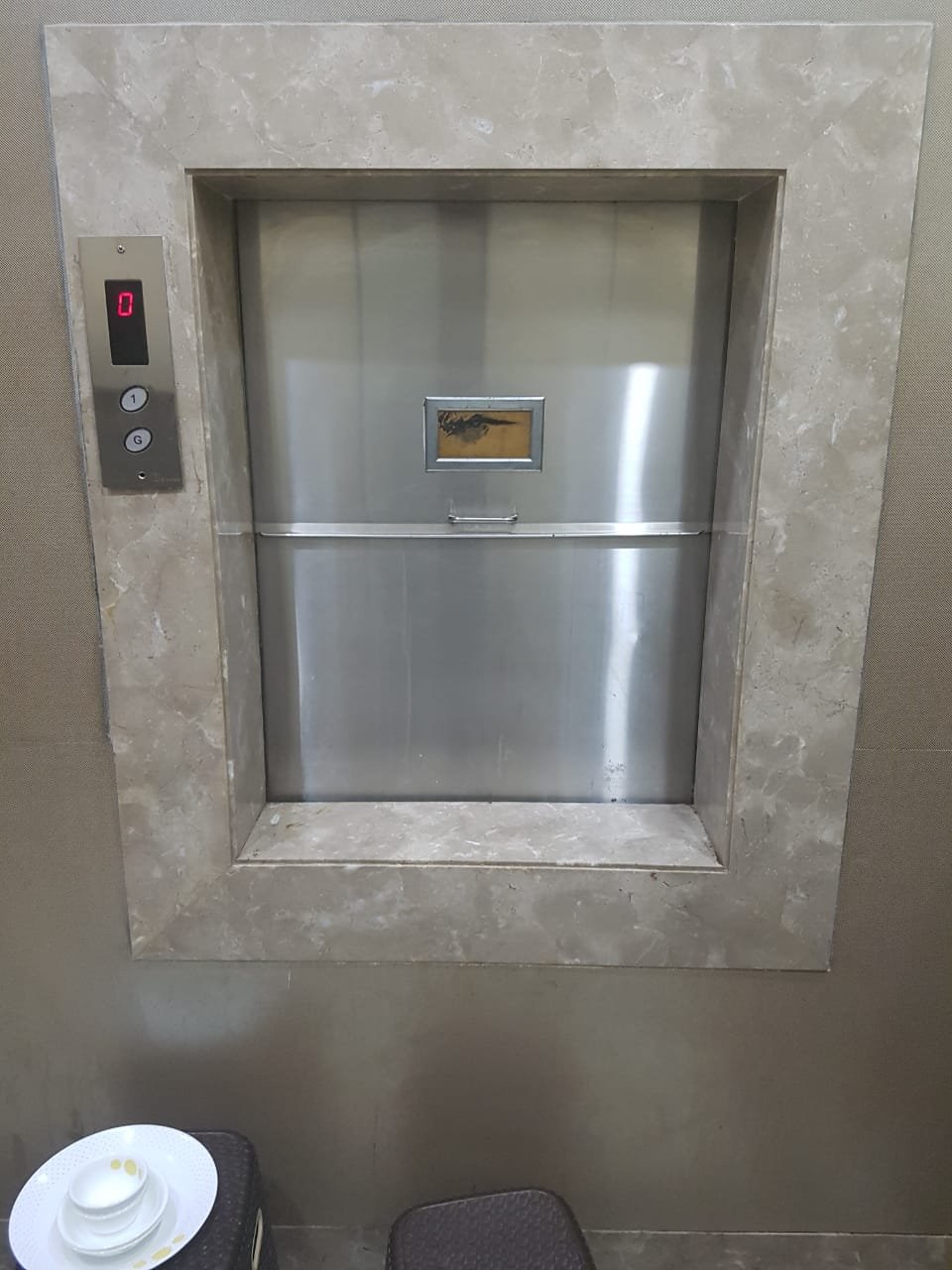

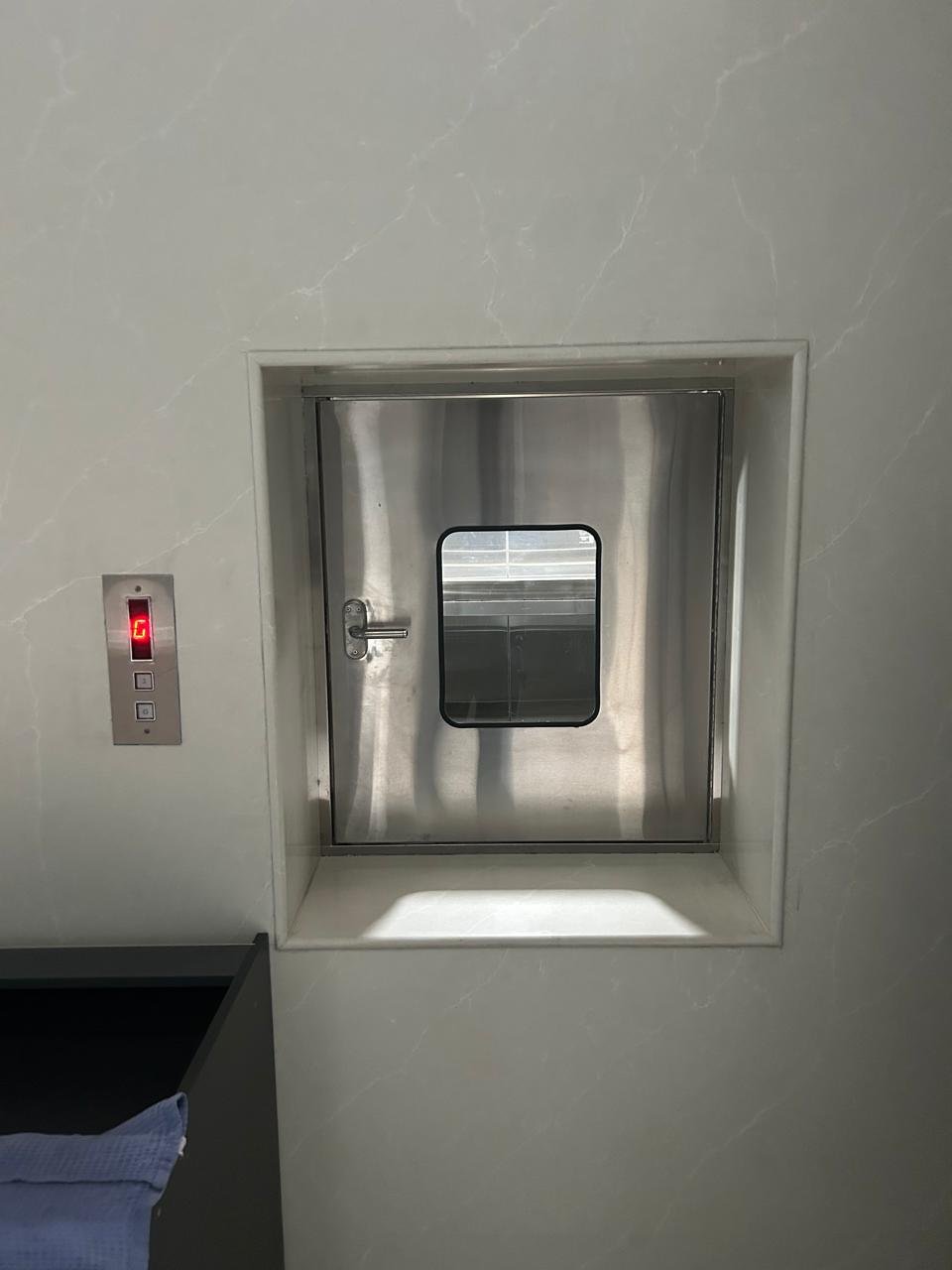

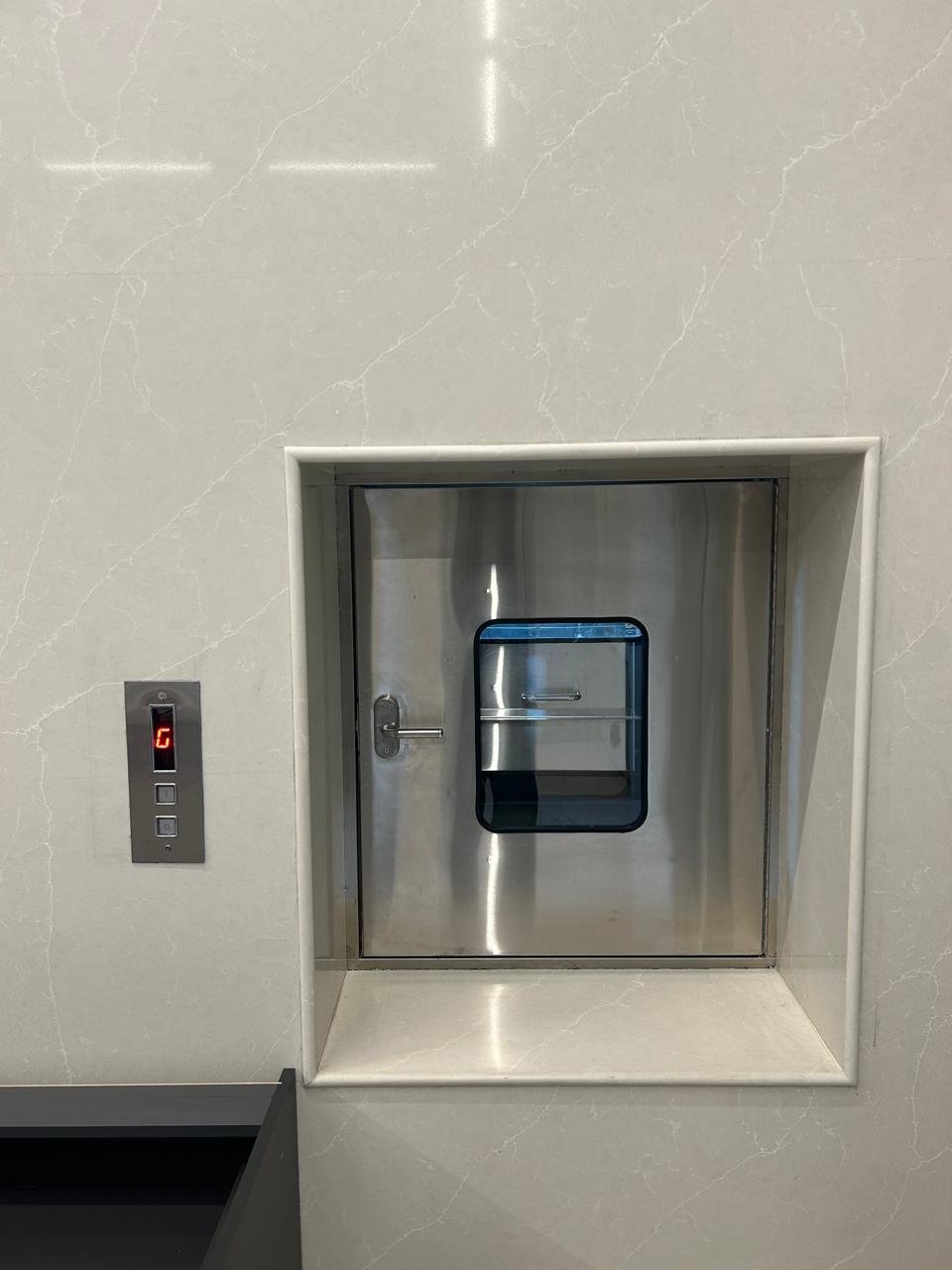

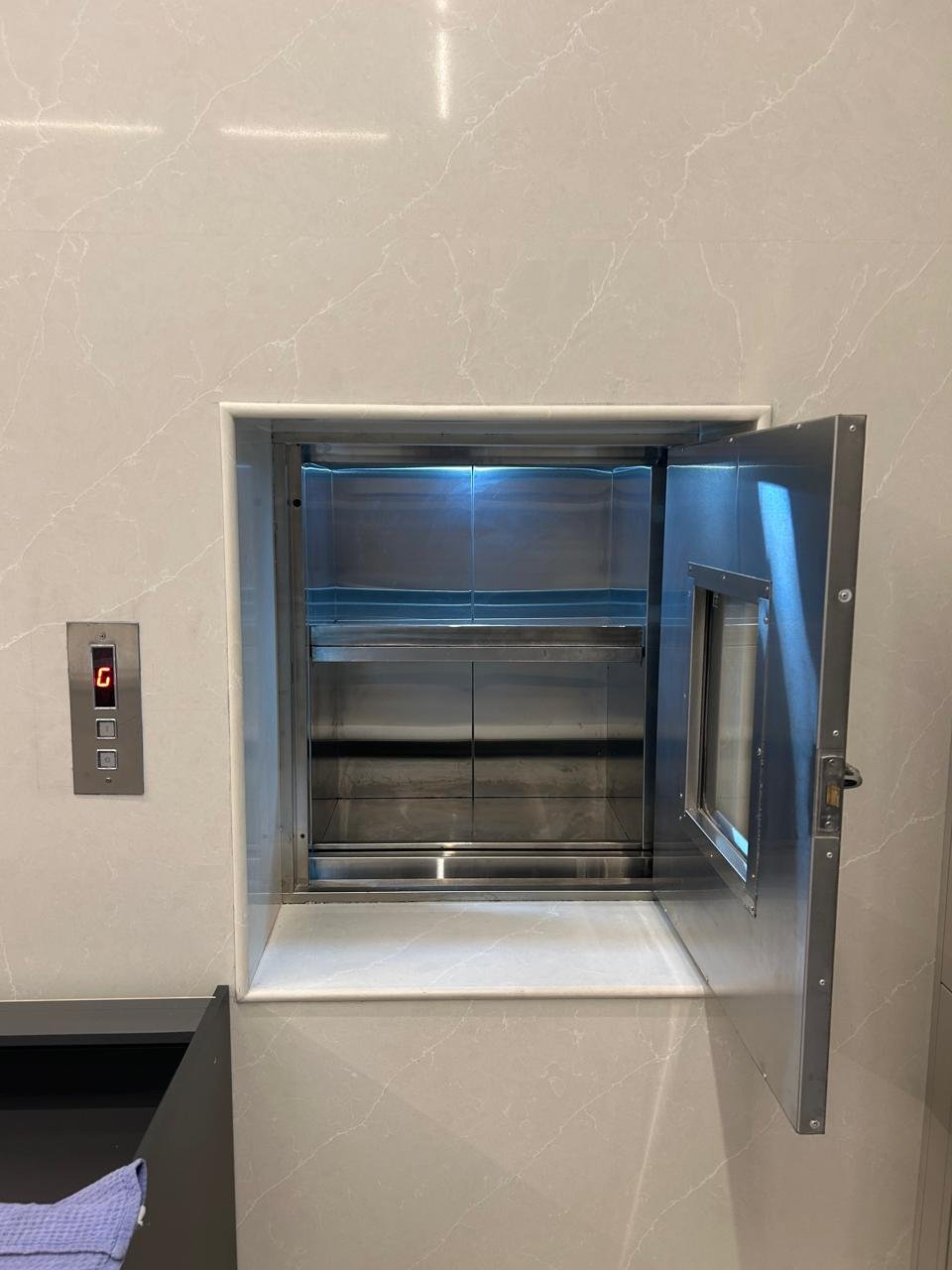

Beacon Dumb-Waiters come in standard sizes but can be customized to meet specific client needs. This includes adjusting dimensions like width, depth, or height to fit unique building layouts or load sizes. For example, a restaurant with a narrow shaft might need a compact design. Weight capacity can also be tailored within the 50 to 250 kg range. Clients can choose control systems, such as call-and-send or multi-button setups, to match their needs. Additionally, materials and finishes can be customized to blend with the installation site’s aesthetic, ensuring the Dumb-Waiter fits seamlessly into modern or traditional environments.

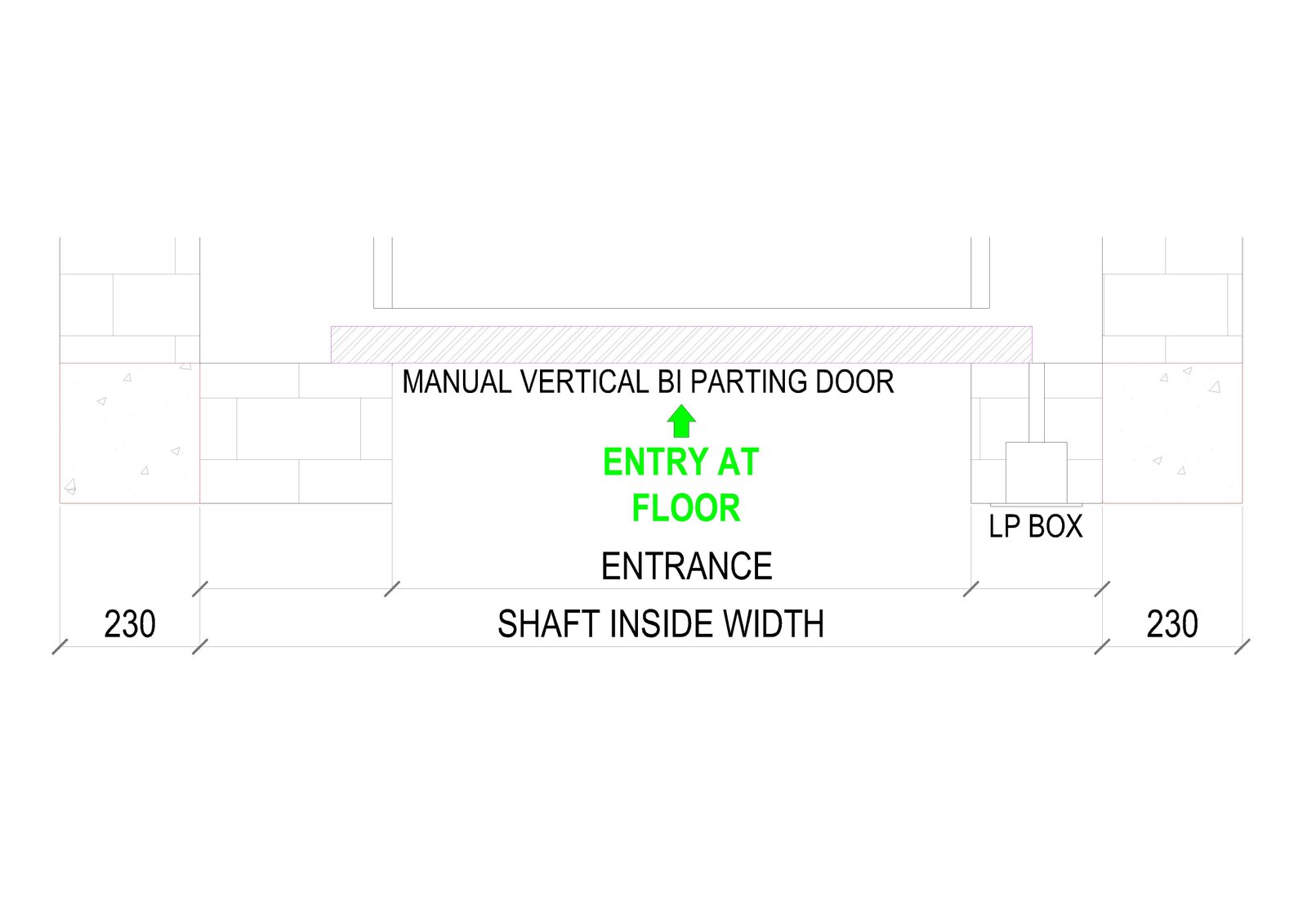

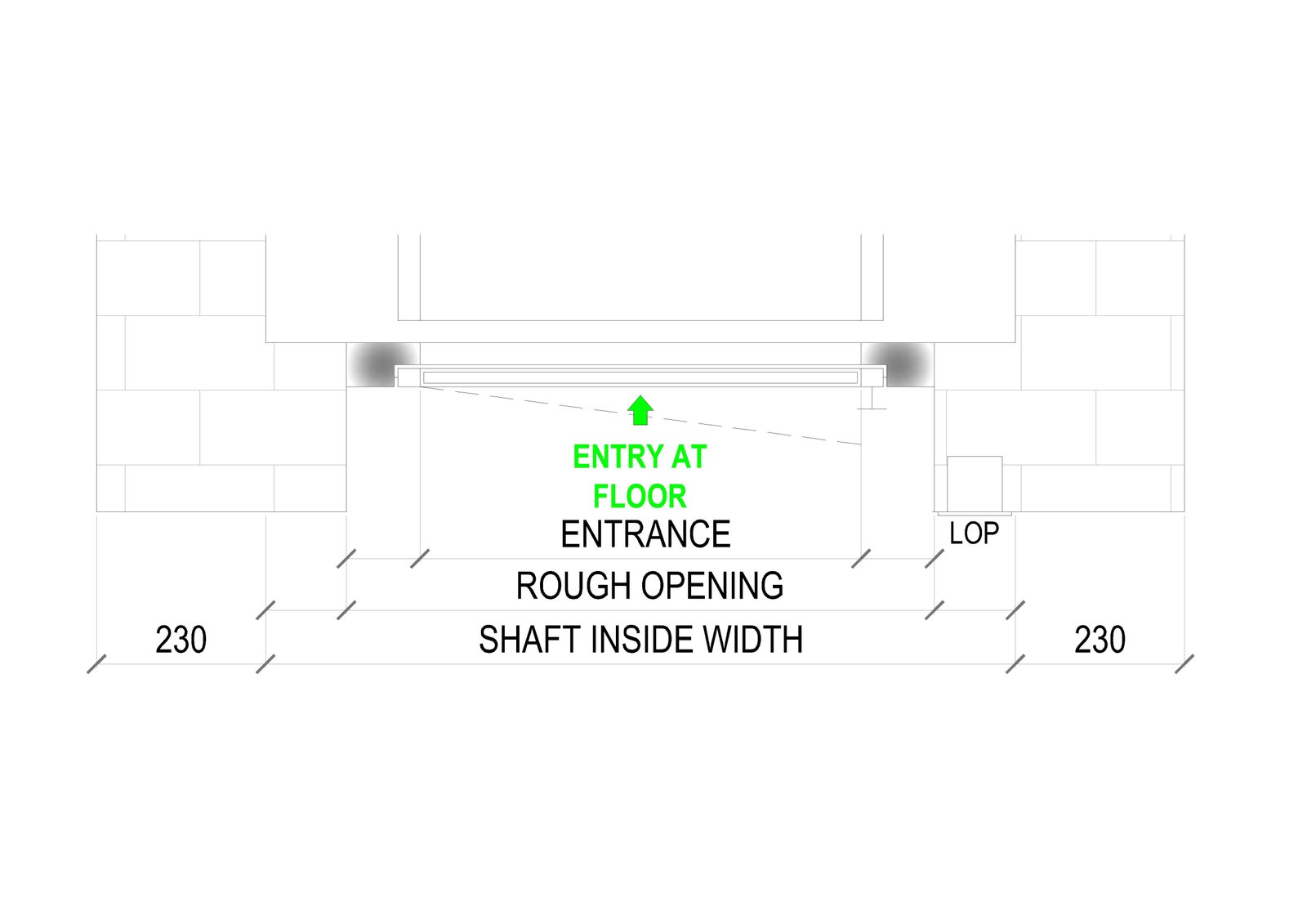

LOAD	CAR-INSIDE	ELEVATOR-WELL & MACHINE-ROOM	ENTRANCE
100	700	700	800	1200	900	700	800
150	800	800	900	1300	1000	800	900
200	900	900	1000	1400	1100	900	1000
250	1000	1000	1200	1500	1200	1000	1200

LOAD

CAR-INSIDE

ELEVATOR-WELL & MACHINE-ROOM

ENTRANCE

Kg.

100

700

800

1200

900

700

800

150

800

900

1300

1000

800

900

200

900

1000

1400

1100

900

1000

250

1000

1200

1500

1200

1000

1200
