Flame Proof Elevators

We are instrumental in providing best quality assortments of Flame Proof Elevators. The offered arrays of products are smooth and very easy to operate. They are free from fire flames and therefore very safe to use. They are highly used and demanded for this features. They are manufactured by our professionals with the help of quality high basic materials and modern techniques. They are cost effective in rates.

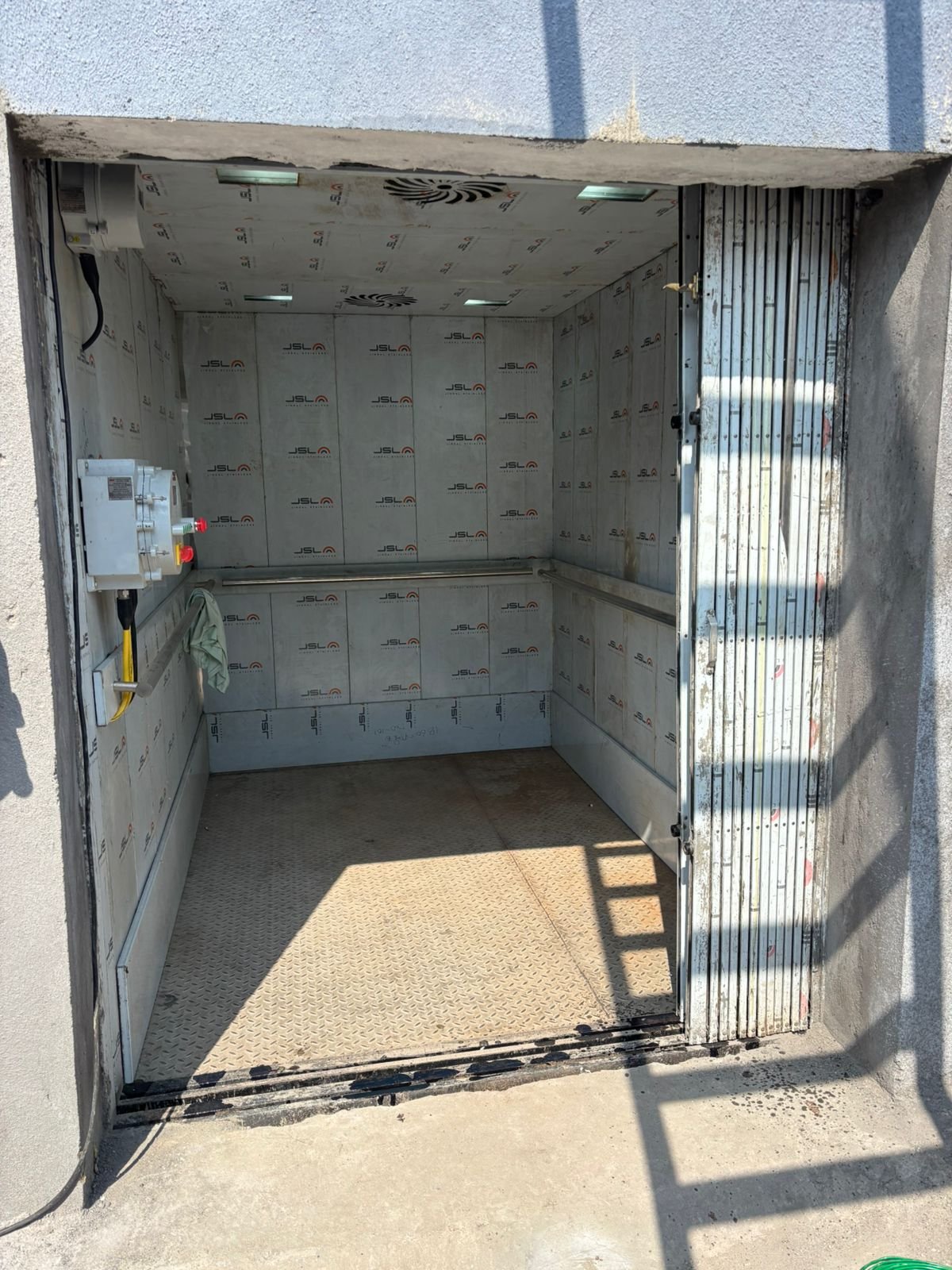

Owing to our in-depth expertise in this domain, we are engaged in offering an extensive range of Flameproof Elevator. Under the strict guidance of our deft professionals, we manufacture the provided elevator using qualitative material with the help of sophisticated technology. Finds best application in houses, commercial and residential buildings, the offered elevator has the capacity to carry many people in one go. Besides, Flameproof Elevator has auto doors that enhance its trouble free performance.

View Civil Dimension

Flame proof Goods Lifts and Cage Lifts :

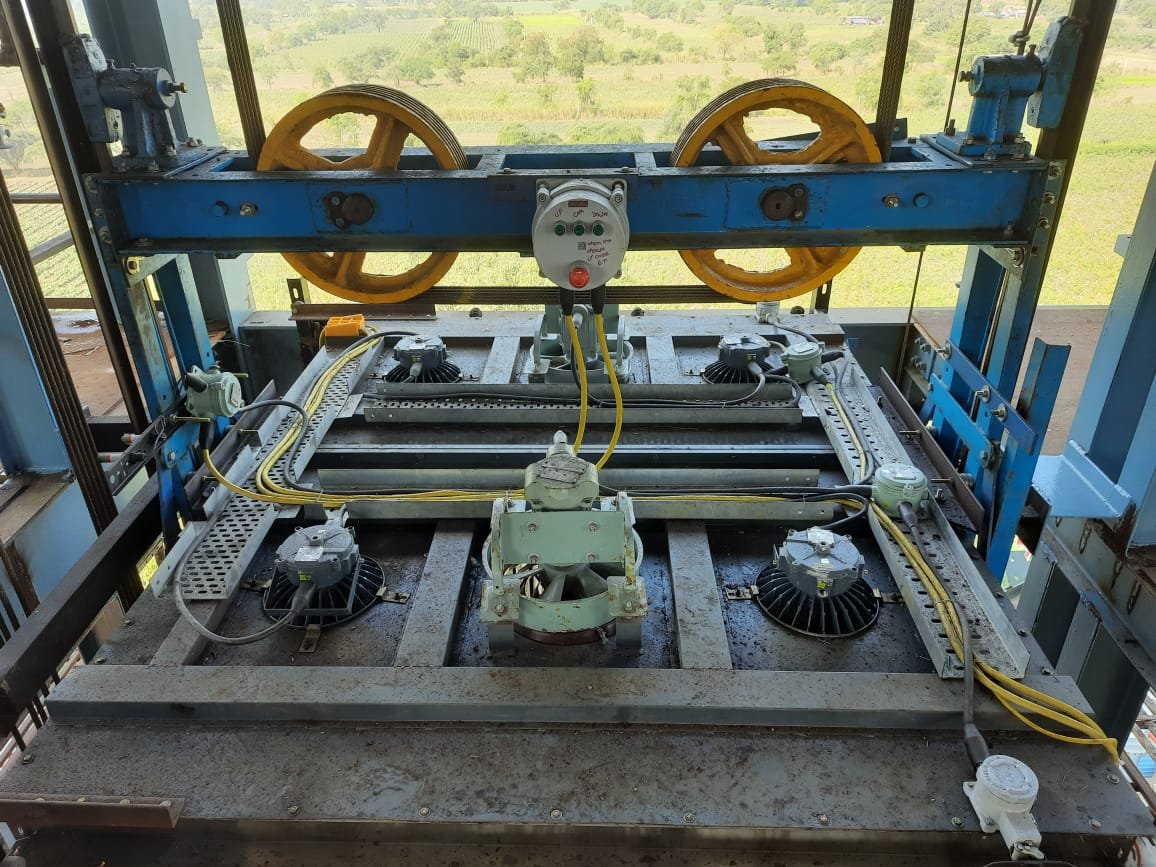

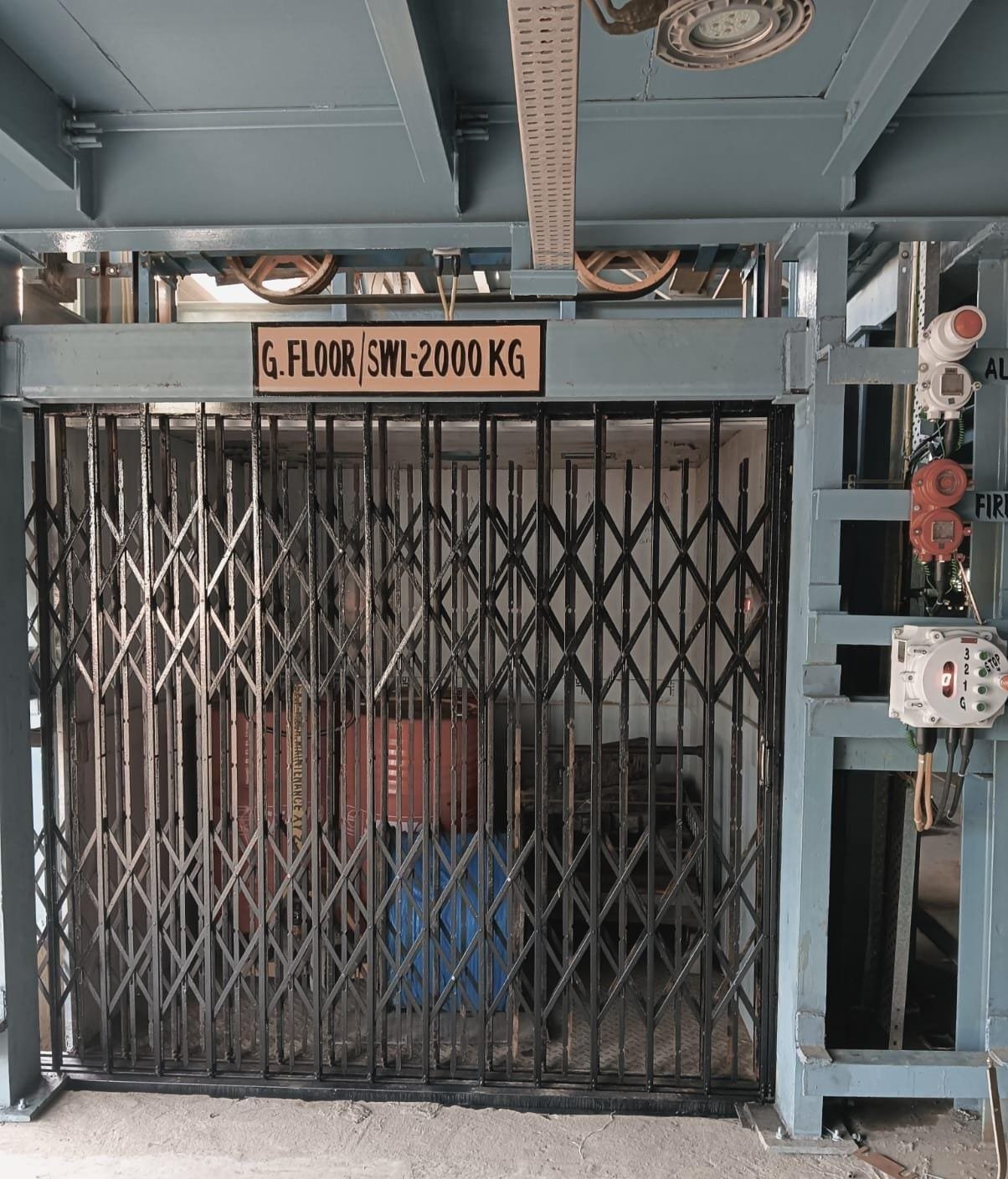

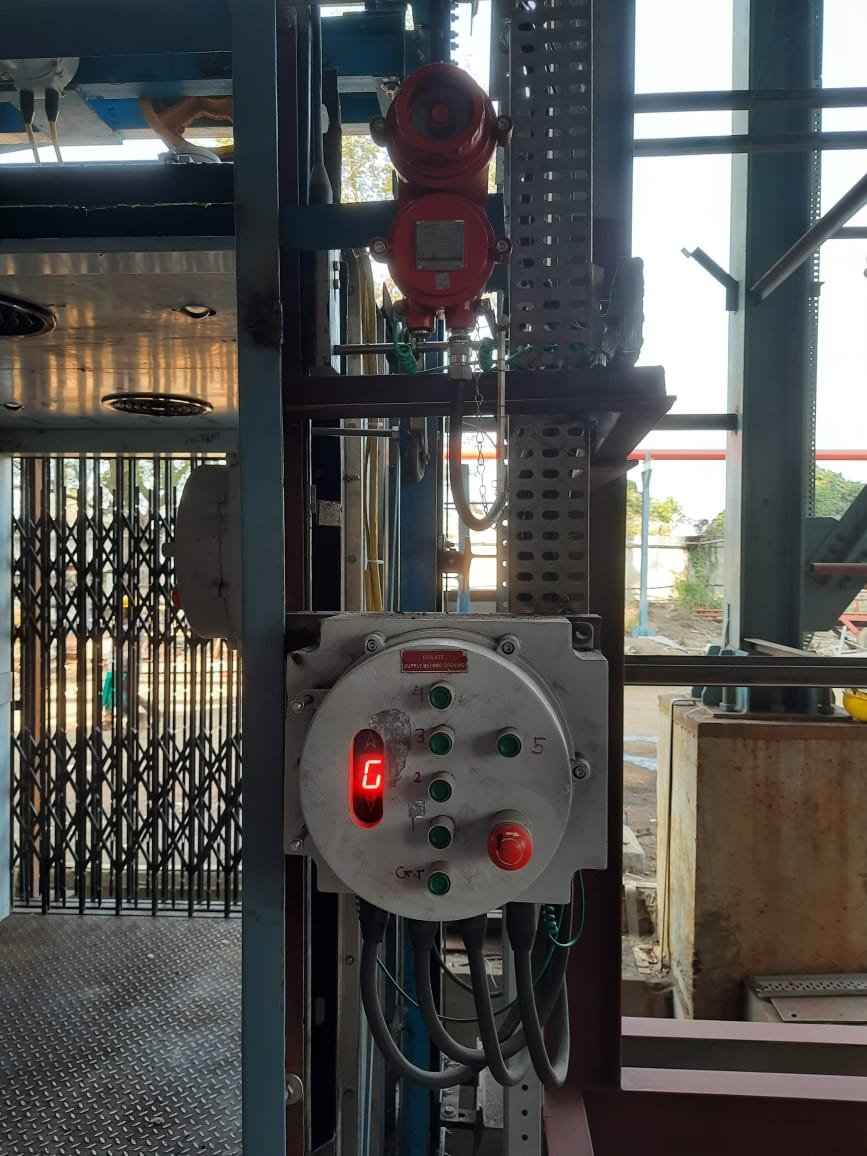

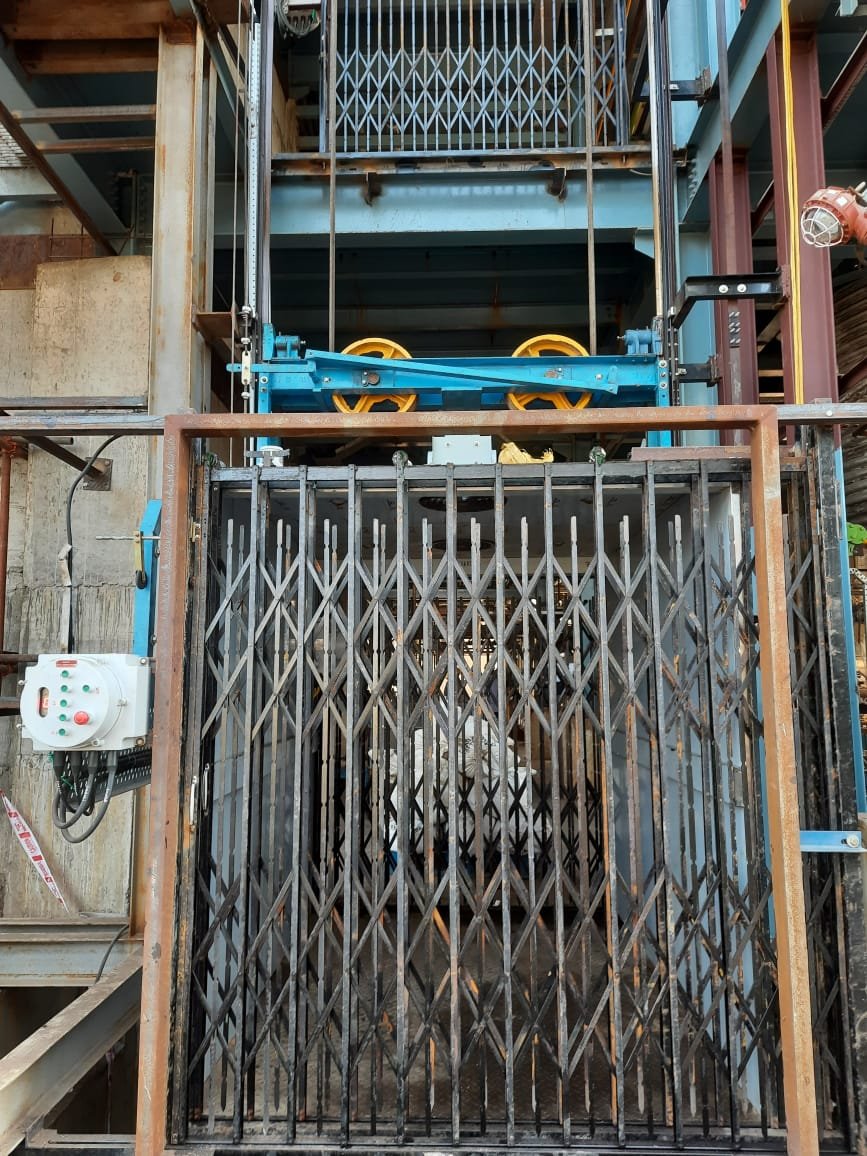

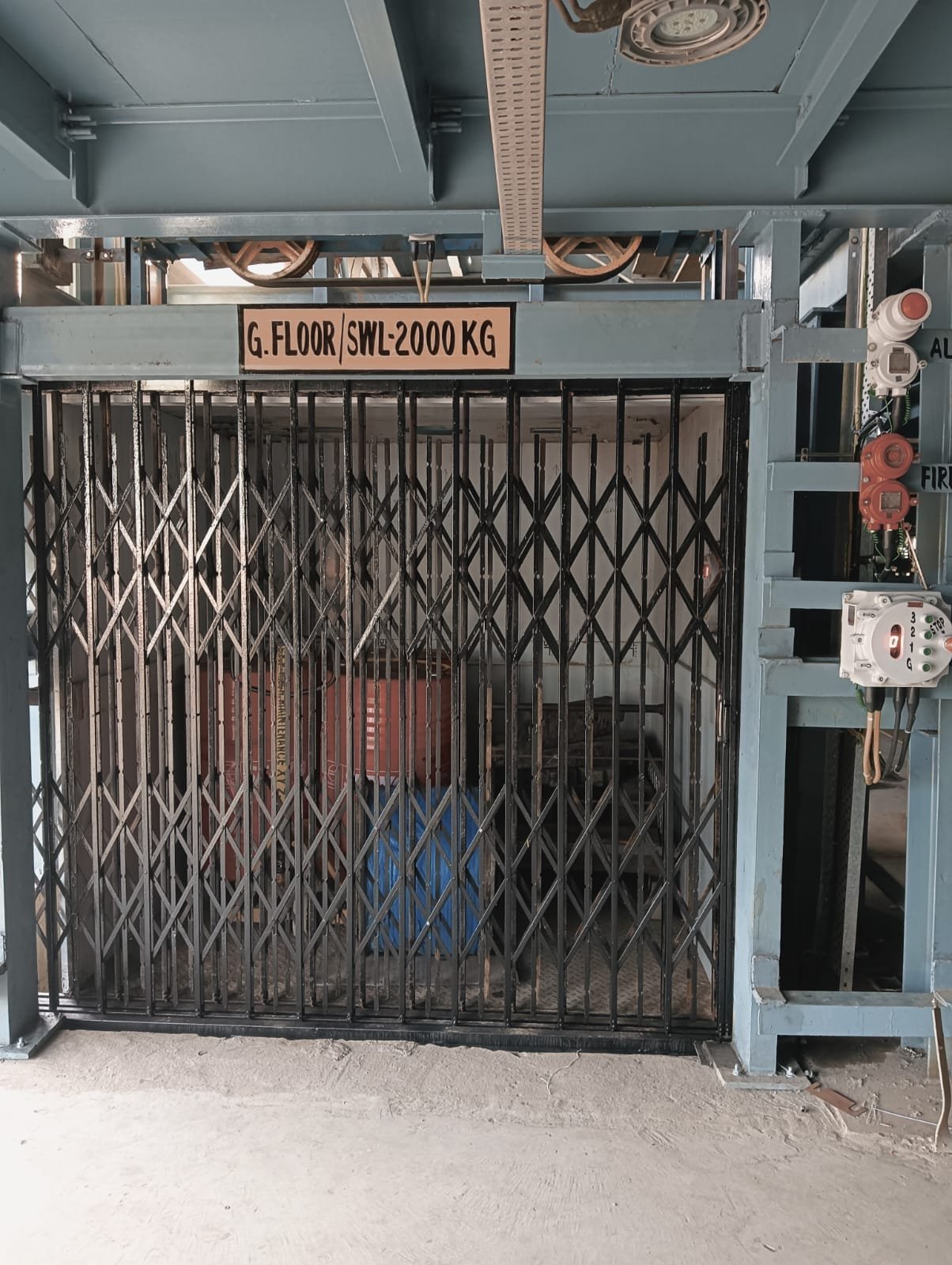

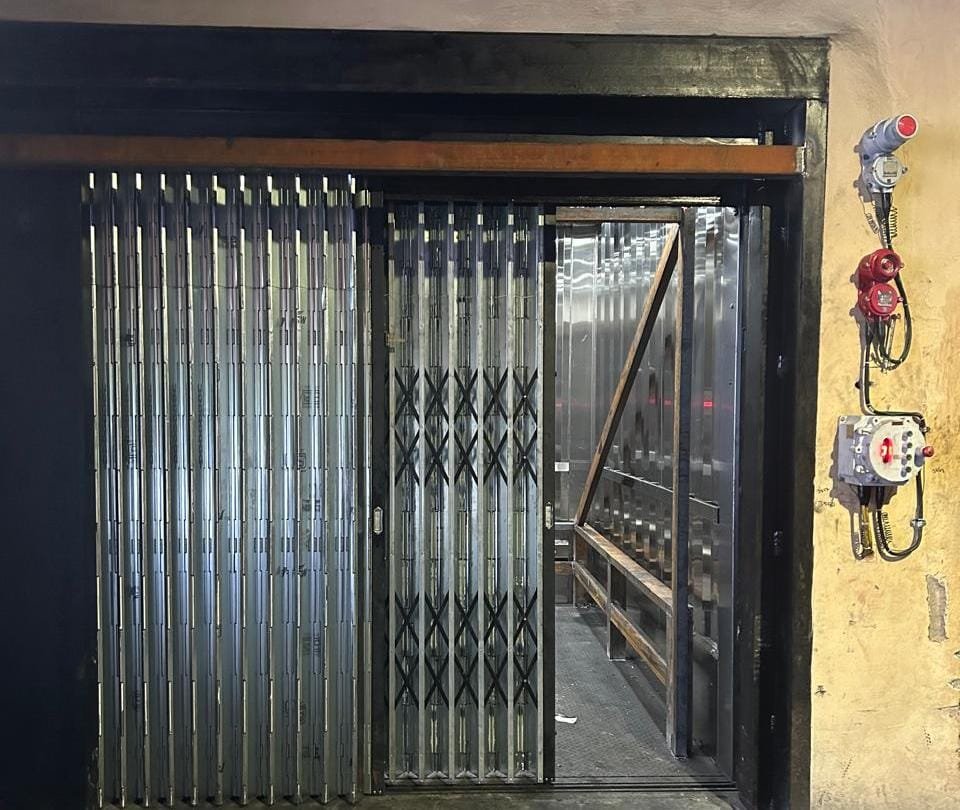

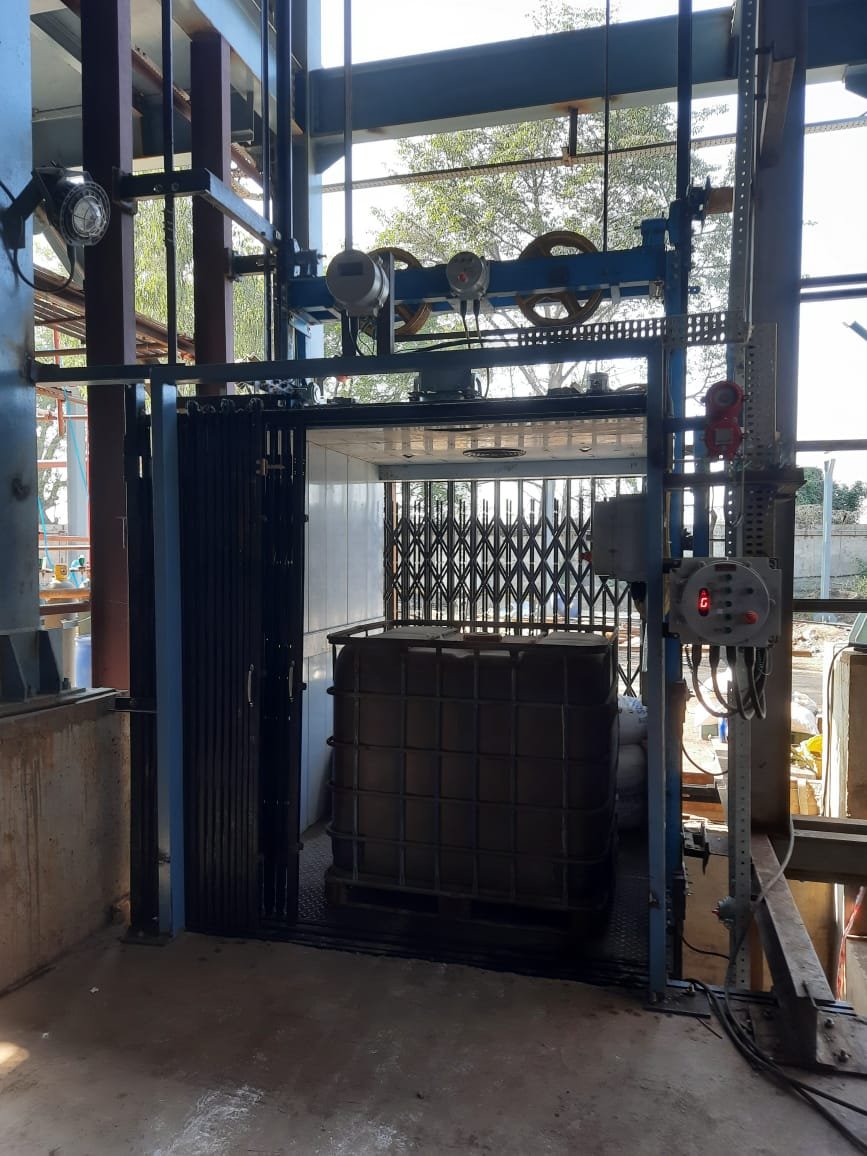

We are one of the reputed organizations engaged in offering Flameproof Goods Lifts and Cage Lifts. We offer the best quality of flameproof goods lifts & cage lifts. Goods lifts are specially designed for safe lifting of the material. The steel cage is being guided in steel guide members with hoisting & lowering operations being performed through hoist. The cage is operated through properly interlocked push buttons with limit switches for perfect safety. We specialise in goodslifts suitable for hazardous area gas groups i, iia&iib and iic also along with all the electricals duly certified Goods lifts are specially designed for safe lifting of the material. a steel cage is being guided in steel guide members with hoisting & lowering operations being performed throughhoist. The cage is operated through properly interlocked push buttons with limit switches for perfect safety.

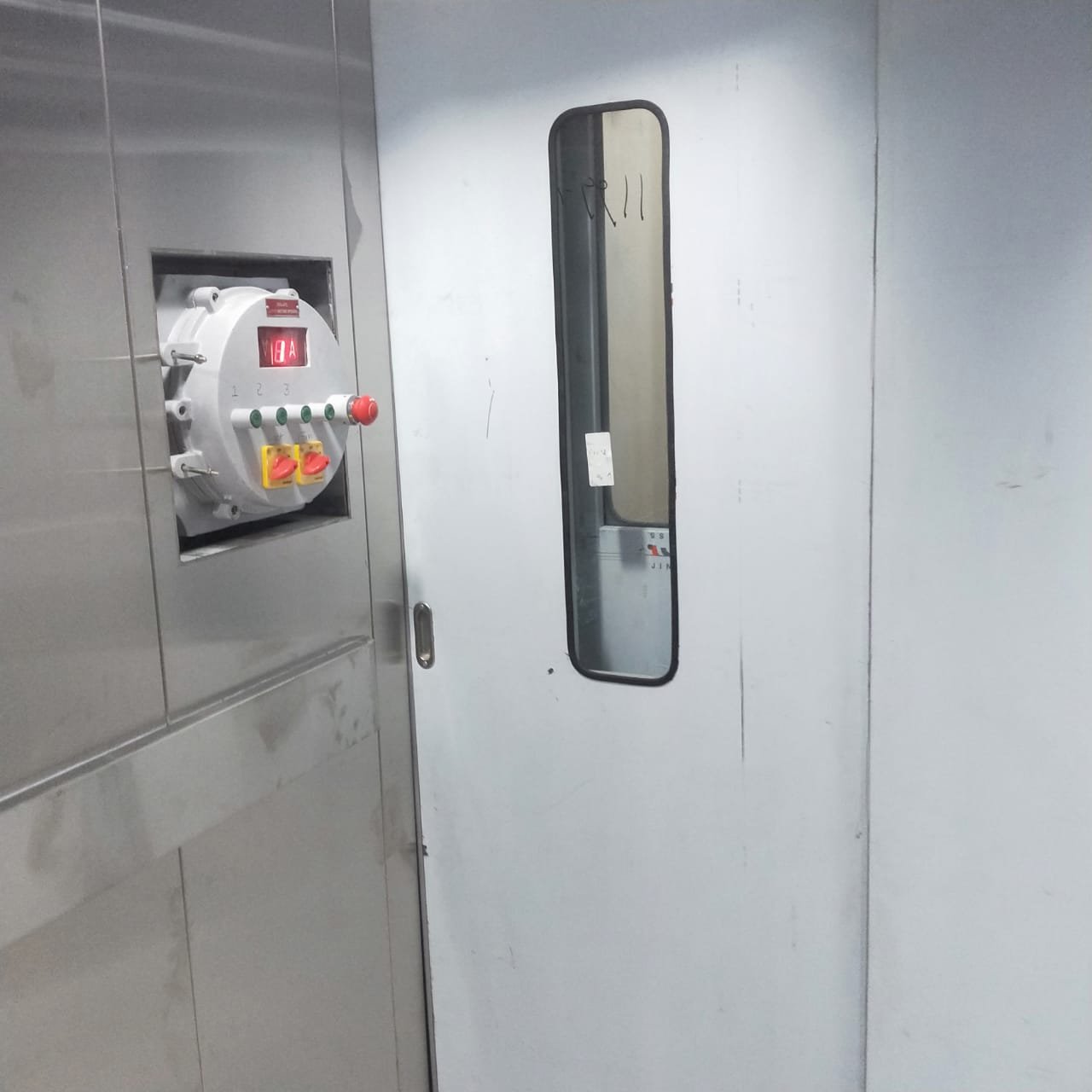

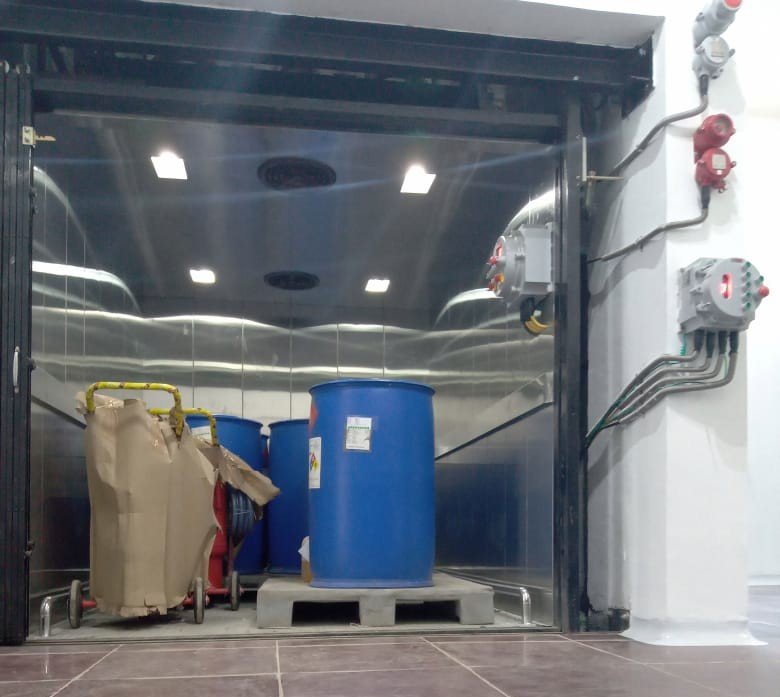

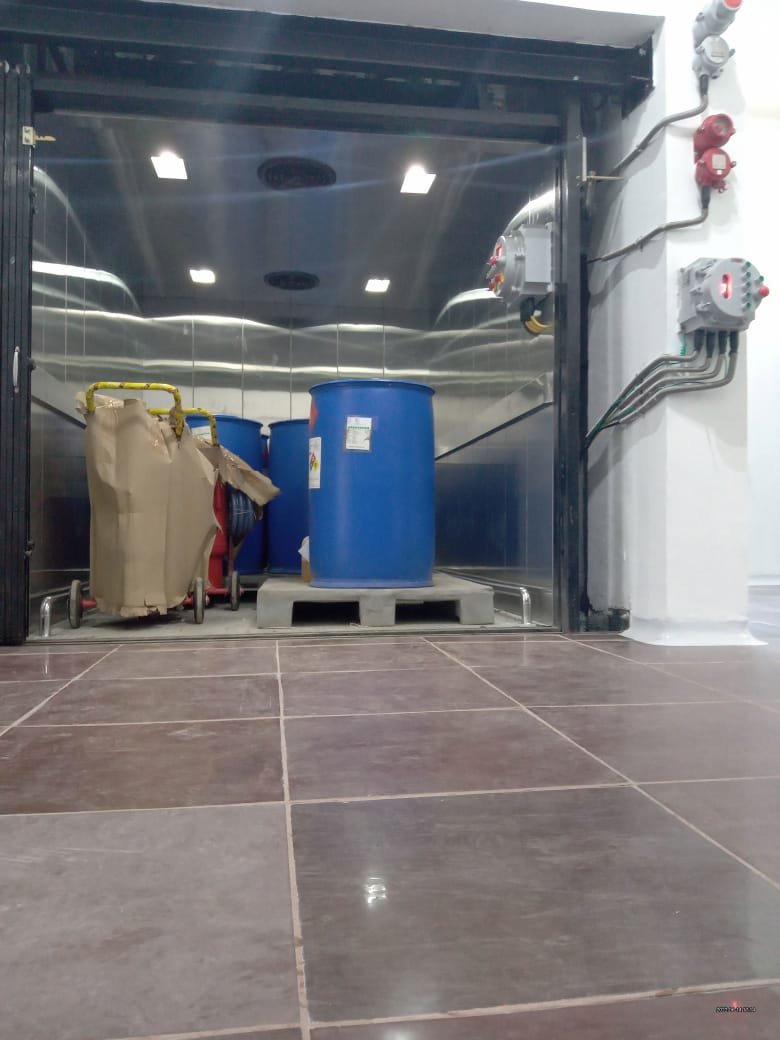

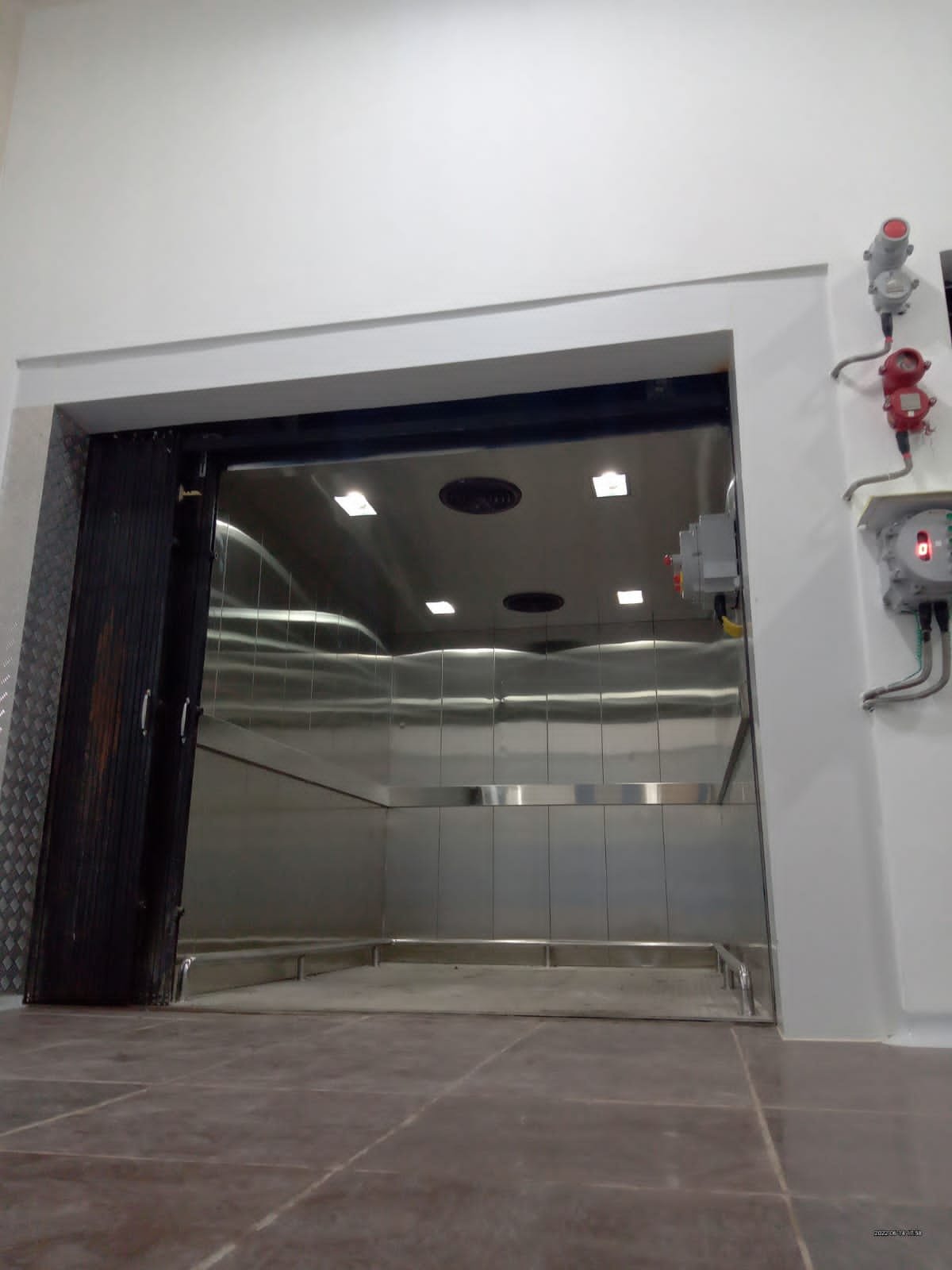

Flameproof elevators are specially engineered lifting solutions designed for use in hazardous environments where flammable gases or vapors may be present. These elevators ensure the safe and efficient transportation of goods within industrial zones such as chemical plants, oil refineries, pharmaceutical units, and other potentially explosive atmospheres. The control system is user-friendly and secure, operated through interlocked push buttons and protected with precision-engineered limit switches to prevent over-travel or unsafe operation. Ideal for industries requiring strict compliance with flameproof standards, our elevators combine performance with uncompromised safety—making them a trusted solution for risk-prone workspaces.

Flame proof Elevators - Minimum Civil Dimensions:

LOAD (KG)	CAR INSIDE		LIFT WELL		ENTRANCE	MACHINE ROOM		PIT DEPTH	OVER HEAD
LOAD (KG)	A	B	C	D	E	K	L	PIT DEPTH	OVER HEAD
500	1100	1200	1900	1500	1100	3900	4000	1600	4500
1000	1400	1800	2300	2100	1400	4300	4600	1600	4500
1500	1700	2000	2600	2300	1700	4600	4800	1600	4500
2000	1700	2500	2600	2800	1700	4600	5300	1600	4500
2500	2000	2500	2900	2800	2000	4900	5300	1600	4500
3000	2000	3000	2900	3300	2000	4900	5800	1600	4500
4000	2500	3000	3400	3300	2500	5400	5800	1600	4500
5000	2500	3600	3400	3900	2500	5400	6400	1600	4500

Note: In case of manually operated doors, clear entrance will be reduced by the amount of projection of handle on the landing door.

Note: Dimensions of pit depth and overhead may differ in practice as per individual manufacturer’s design depending upon load, speed and drive. However, the pit depth and overhead shall be such as to conform to the requirements , IS14665

CLIENT SCOPE - Detailed Requirements

Three Phase Power Supply

Provide Three Phase Power Supply near control panel with M.C.B. & E.L.C.B.
Scaffolding

Provide scaffolding for entire erection period (approximately 15 days)
Temporary Power Connection

Provide temporary power connection for erection & testing work
Access Permission

Give free access in case work needs to be done after office hours
Shaft Construction

Construct the shaft in accordance with GA Drawing
Earth Points

Provide 2 Earth Points near Control Panel
Shaft Lighting

Provide shaft lighting with plug points
Civil Material & Mason

Provide mason with civil material for minor building work including grouting etc. during erection work

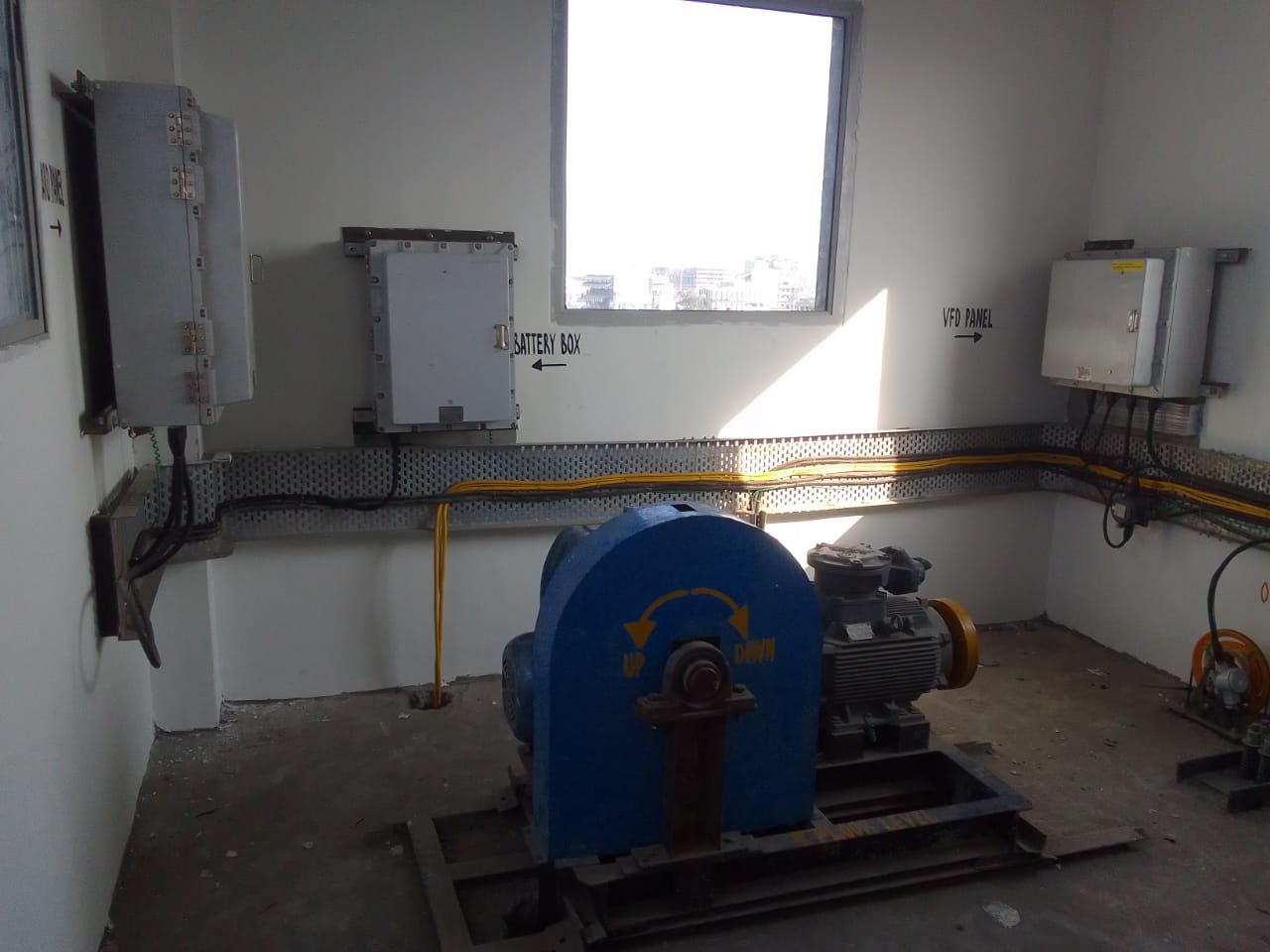

Machine Room Components

Access to Machine room, Machine beams, Supporting beams, Machine room door, Machine room ladder, Loading hook etc.
Elevator Shaft Wall Finishing

Provide Elevator Shaft wall to be plastered & painted
R.C.C. Column Design

4 No. R.C.C. Columns to be designed by client for the given load

Quick Reference

Construct the shaft (230mm brick / 150mm RCC Walls) in accordance with our GA drawings.
Mason with material for minor builder's work such as pocket cutting, grouting, door fixing, etc.
Temporary power connection for erection & testing work.
Scaffolding till the time of erection for about 30 days.
Access to Machine room (if applicable).
Power supply (415 Volts, 3 Phase, 4 Wires with Neutral, 50 Hz. & 230 Volts 1 Phase) near our control panel with MCB/JUNCTION BOX.
