Machine Room (MR) Elevators

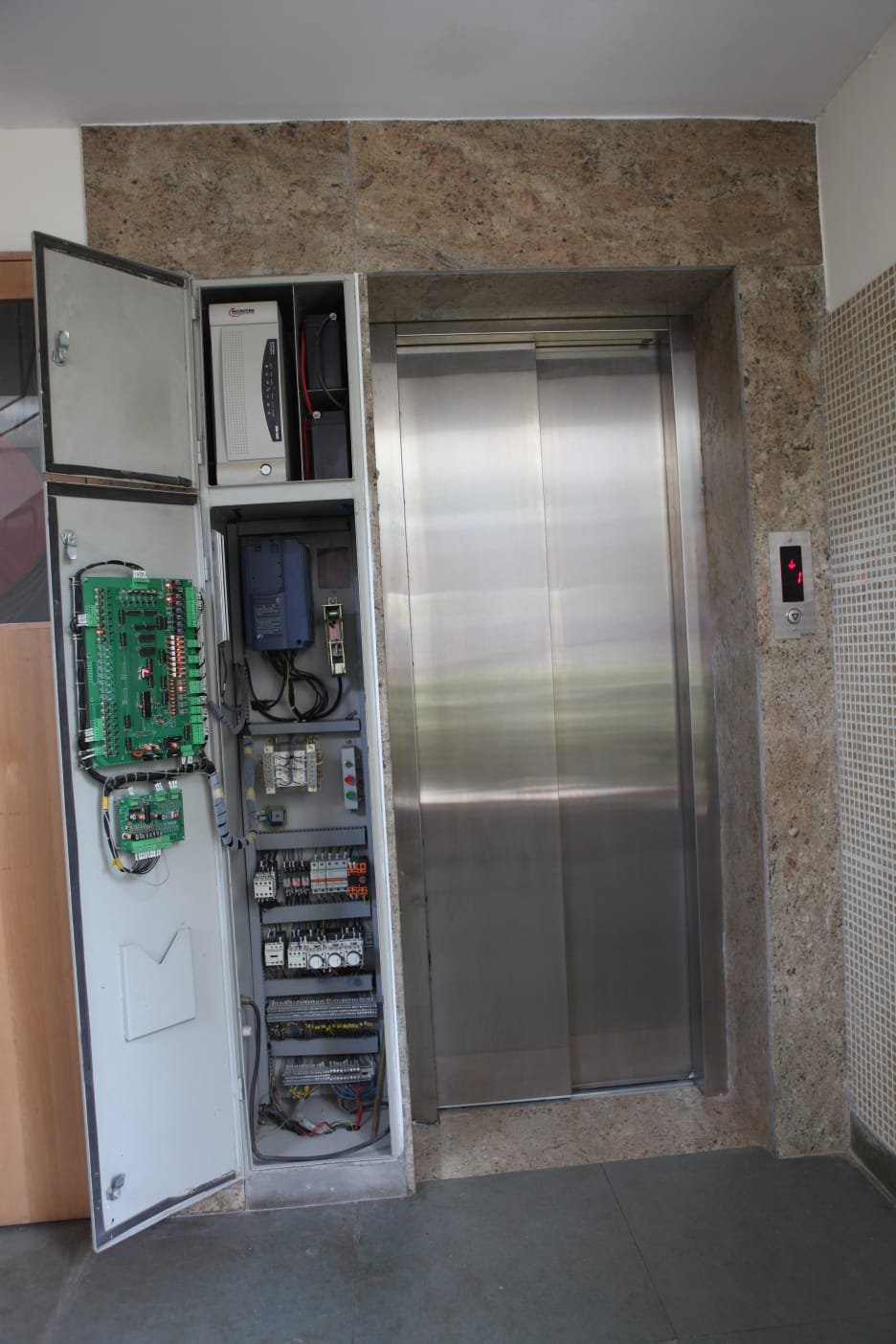

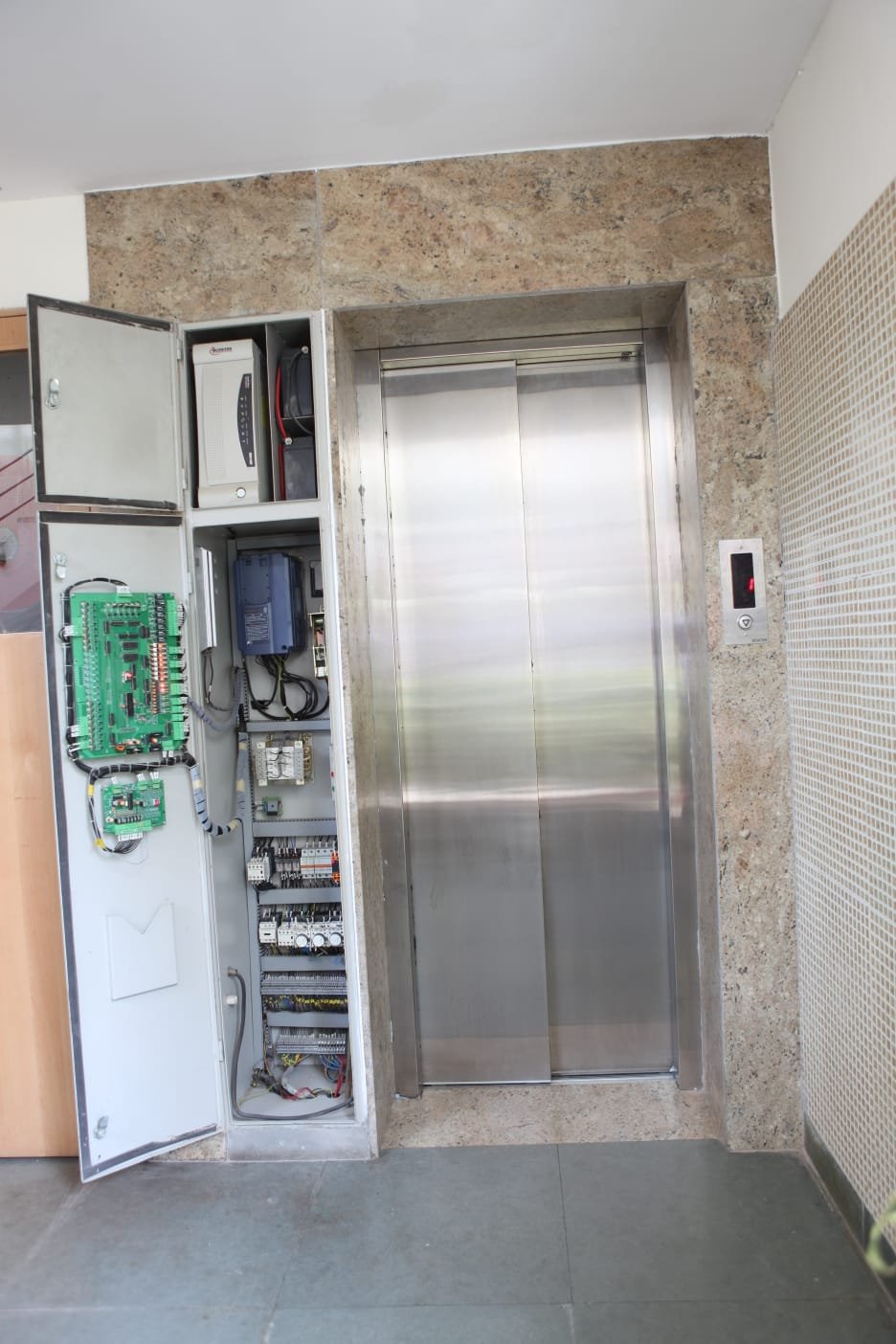

Machine Room (MR) Elevators are traction elevators that are becoming the most common choice of mid rise buildings. These are explicitly designed to fit in small spaces, consume less energy and yet deliver smooth and safe operation in combination with Beacon’s advanced control & drive system technology.

MR is a new design concept that is now being widely accepted. As the name implies, the elevator does not require any machine room space as the machine and other related equipment are installed inside the shaft. The technological advancement & innovation has led to further benefits like, low construction & maintenance cost and creating more usable space. It is an ideal solution for low, high rise, new & existing buildings.

View Civil Dimension

PERSONS	LOAD (KG)	CAR INSIDE	LIFT WELL	ENTRANCE
4	272	1100	700	1900	1300	700
6	408	1100	1000	1900	1700	700
8	544	1300	1100	1900	1900	800
10	680	1300	1350	1900	2100	800
13	884	2000	1100	2500	2000	900
16	1088	2000	1300	2500	2100	1000
20	1360	2000	1500	2500	2400	1000
24	1632	2150	1650	2650	2500	1100

PERSONS

LOAD
(KG)

CAR INSIDE

LIFT WELL

ENTRANCE

272

1100

700

1900

1300

700

408

1100

1000

1900

1700

700

544

1300

1100

1900

800

680

1300

1350

1900

2100

800

884

2000

1100

2500

2000

900

1088

2000

1300

2500

2100

1000

1360

2000

1500

2500

2400

1000

1632

2150

1650

2650

2500

1100

Speed in m/s	Upto 0.70	> 0.70 ≤ 1.00	> 1.00 ≤ 1.50	> 1.50 ≤ 1.75	> 1.75 ≤ 2.00	> 2.00 ≤ 2.50
Pit depth	1350	1500	1600	2150	2200	2500
Overhead	4200	4250	4800	4800	5200	5400
Machine-room Depth L	D+2000	D+2000	D+2000	D+2500	D+2500	D+2500
Machine-room Width K	C+1000	C+1000	C+1200	C+1200	C+1500	C+1500

Speed in m/s

Upto 0.70

> 0.70 ≤ 1.00

> 1.00 ≤ 1.50

> 1.50 ≤ 1.75

> 1.75 ≤ 2.00

> 2.00 ≤ 2.50

Pit depth

1350

1500

1600

2150

2200

2500

Overhead

4200

4250

4800

5200

5400

Machine-room Depth L

D+2000

D+2500

Machine-room Width K

C+1000

C+1200

C+1500

ELEVATOR OPERATIONS

SINGLE AUTOMATIC OPERATION

Automatic operation by the means of the button in the car for each landing level served and one button at each landing so arranged that if any car or landing button has been actuated, the actuation of any other car or landing operating button will have no effect on the movement of the car until the response to the first button has been completed.

DOWN COLLECTIVE AUTOMATIC OPERATION - ONE CAR (SIMPLEX)

The car stays at the main floor, which has an 'UP' button; upper floors have 'DOWN' button. The controller memorizes landing and car calls. Ideal for residential buildings, the car travels to the highest landing call, stopping at car calls only while going up. On the way down, it stops at all calls in sequence.

DOWN COLLECTIVE AUTOMATIC OPERATION - TWO CAR (DUPLEX)

Operates like the Simplex system, but with two cars: one parks at the main floor, the other at the top or midway if last stop was the main floor. When a call is received, the microprocessor sends the nearest car. For multiple calls, a car goes to the highest, then serves in downward sequence.

ELEVATOR DESIGNS

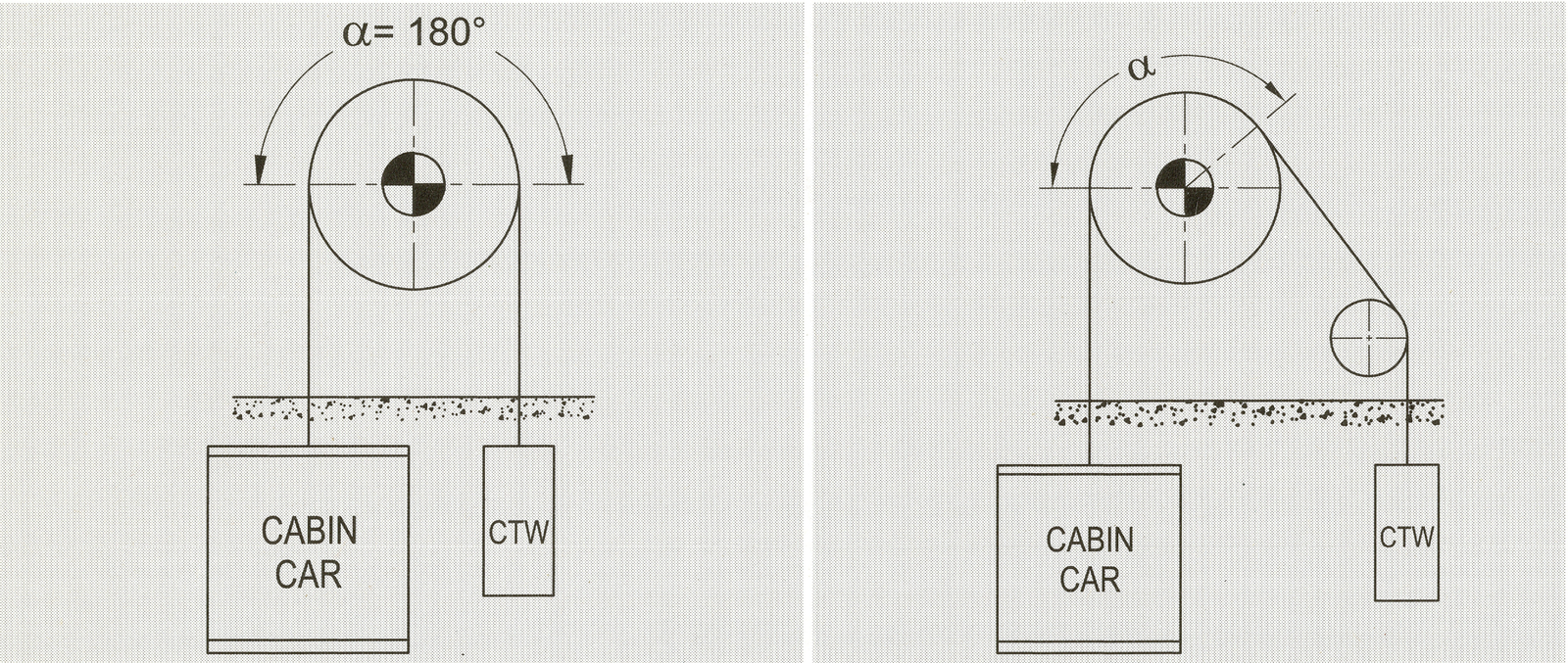

1:1 Suspension System

1:1 roped. Single wrap. Generally restricted to 30 meters. The most straightforward is considered a 1:1 roping arrangement in which the movement of the roping members and the corresponding amount of movement of the elevator car is the same. 1:1 roping offers equal rope and car speed, ideal for medium to high-speed elevators but needs a diverter for layout flexibility.

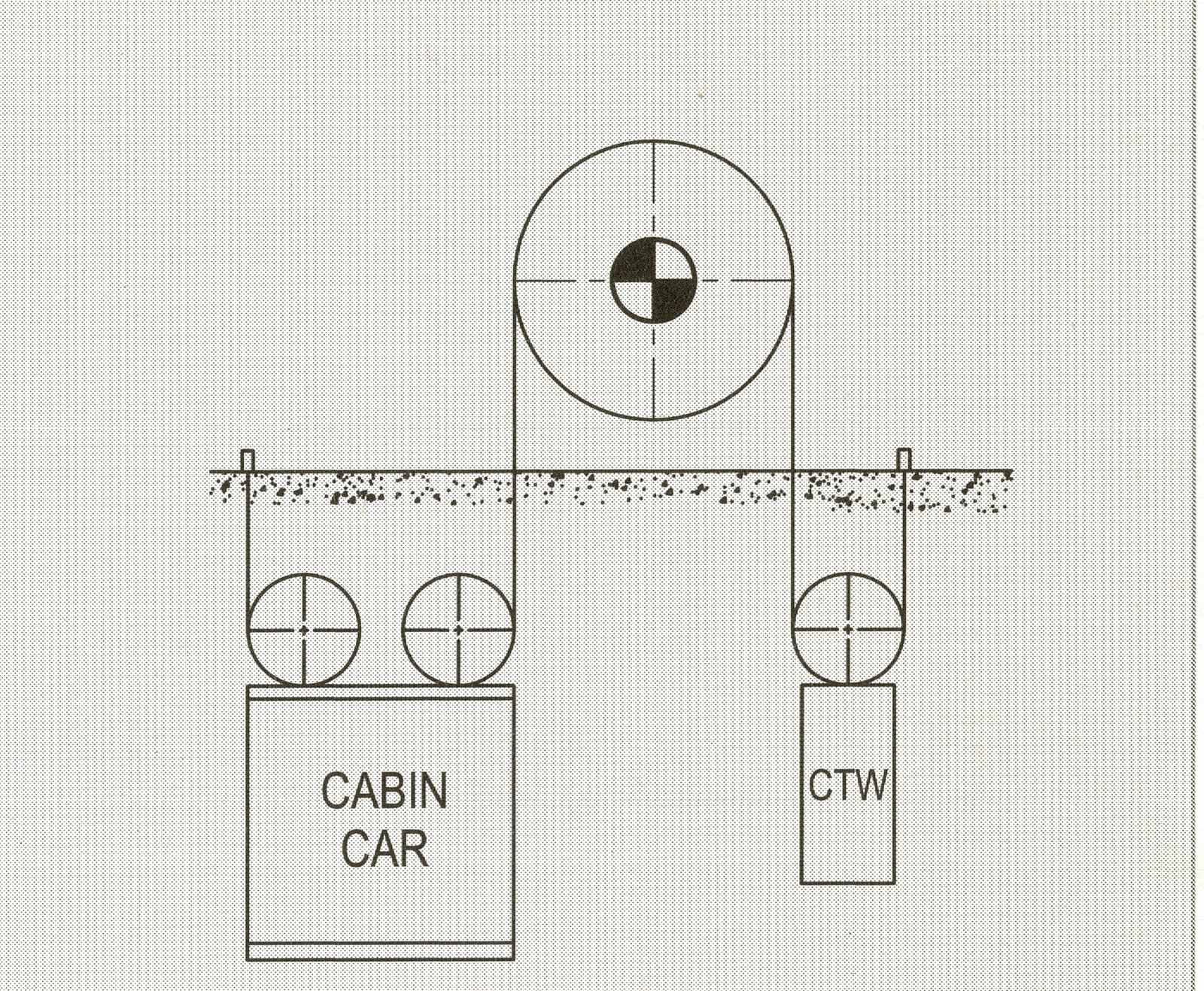

2:1 Suspension System

In a 2:1 roping arrangement the roping members movement is twice as much as the corresponding movement of the elevator car.
2:1 roping doubles load capacity by moving the rope at twice the car's speed.

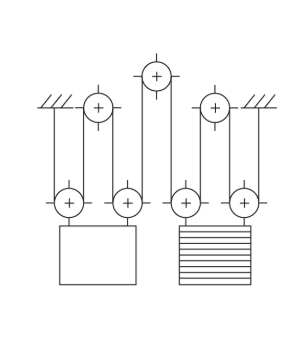

4:1 Suspension System

4:1 roping arrangements have been proposed and include roping member movement that is approximately four times as much as the corresponding movement of the elevator car.

CLIENT SCOPE - Detailed Requirements

Three Phase Power Supply

Provide Three Phase Power Supply near control panel with M.C.B. & E.L.C.B.
Scaffolding

Provide scaffolding for entire erection period (approximately 15 days)
Temporary Power Connection

Provide temporary power connection for erection & testing work
Access Permission

Give free access in case work needs to be done after office hours
Shaft Construction

Construct the shaft in accordance with GA Drawing
Earth Points

Provide 2 Earth Points near Control Panel
Shaft Lighting

Provide shaft lighting with plug points
Civil Material & Mason

Provide mason with civil material for minor building work including grouting etc. during erection work
Machine Room Components

Access to Machine room, Machine beams, Supporting beams, Machine room door, Machine room ladder, Loading hook etc.
Elevator Shaft Wall Finishing

Provide Elevator Shaft wall to be plastered & painted
R.C.C. Column Design

4 No. R.C.C. Columns to be designed by client for the given load

Quick Reference

Construct the shaft (230mm brick / 150mm RCC Walls) in accordance with our GA drawings.
Mason with material for minor builder's work such as pocket cutting, grouting, door fixing, etc.
Temporary power connection for erection & testing work.
Scaffolding till the time of erection for about 30 days.
Access to Machine room (if applicable).
Power supply (415 Volts, 3 Phase, 4 Wires with Neutral, 50 Hz. & 230 Volts 1 Phase) near our control panel with MCB/JUNCTION BOX.
