Passenger Elevators

WHAT IS PASSENGER ELEVATOR, HOW TO CHOOSE A PASSENGER ELEVATOR
A Passenger lift is designed to ferry people from point A to Point B vertically. The modern passenger lift is a simple means of transport within a building. Passenger elevators capacity is related to the available floor space. Generally passenger elevators are available in typical capacities from 4 TO 26 PASSENGERS and speed varying between 0.5 Meter/sec to 2.5 Meter/Sec. Choice of passenger elevator typically depends on type of building (Commercial, Residential, Hotel, Mall, Housing society etc.,) and parameter such as passenger traffic movement. Budget involved is also a deciding factor between manual door and auto door passenger elevators. Beacon offers all types of passenger elevator whether auto door or manually operated doors with variety of aesthetic choices for interior, flooring & false ceiling.

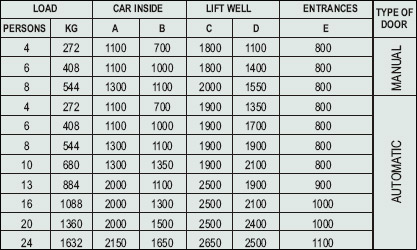

Passenger Elevators - Minimum Civil Dimension

Note : In case of manually operated doors, clear entrance will be reduced by the amount of projection of handle on the landing door.

Speed in m/s	Upto 0.70	>0.70<1.00	>1.00<1.50	>1.50<1.75	>1.75<2.00	>2.00<250
Pit Depth	1350	1500	1600	2150	2200	2500
Overhead	4200	4250	4800	4800	5200	5400
Machine-room depth L	D+2000			D+2500
Machine-room width K	C+1000		C+1200		C+1500

Speed in m/s	Pit Depth
Upto 0.70	1350
>0.70<1.00	1500
>1.00<1.50	1600
>1.50<1.75	2150
>1.75<2.00	2200
>2.00<250	2500

Speed in m/s	Overhead
Upto 0.70	4200
>0.70<1.00	4250
>1.00<1.50	4800
>1.50<1.75	4800
>1.75<2.00	5200
>2.00<250	5400

Speed in m/s	Machine-room depth L
Upto 0.70	D+2000
>0.70<1.00	-
>1.00<1.50	-
>1.50<1.75	D+2500
>1.75<2.00	-
>2.00<250	-

Speed in m/s	Machine-room width K
Upto 0.70	C+1000
>0.70<1.00	-
>1.00<1.50	C+1200
>1.50<1.75	-
>1.75<2.00	C+1500
>2.00<250	-

Passenger Elevators - Features

Adjustable Door Opening & Closing Time
Alarm Button
Car Call Cancellation at Terminal Stop
Attendant
Direction Arrow and Position Indicator on all Stops
Home Landing
Phase Failure and Phase Reversal Protection
Repeated Door Closing in the event of Lock Failure
Door Protection by Light Beams (2 Beams)
Door Protection by Light Curtain
Emergency Lighting
Intercom Car to Machine Room
Overload Indicator
Automatic Rescue Device
Compulsory Stop
Duplex, Triplex, Quadruplex Control
Direction Pre-announcing with Arrival Going
Opposite Door Operation

Passenger Elevators - Sample Drawing

CLIENT’S SCOPE:-

Construct the shaft (230mm brick / 150mm RCC Walls) and Machine Room Slab (with Pockets) in accordance with our GA drawings.
Mason with material for minor builder's work such as pocket cutting, grouting, door fixing etc.
Temporary power connection for erection & testing work.
Scaffolding till the time of erection for about 30 days.
Access to Machine room, Machine beams, supporting beams, pit ladder etc.
Power supply(415 Volts, 3 Phase,4 Wires with Neutral,50 Hz. & 230 Volts 1 Phase) near our control panel with MCB/JUNCTION BOX.
