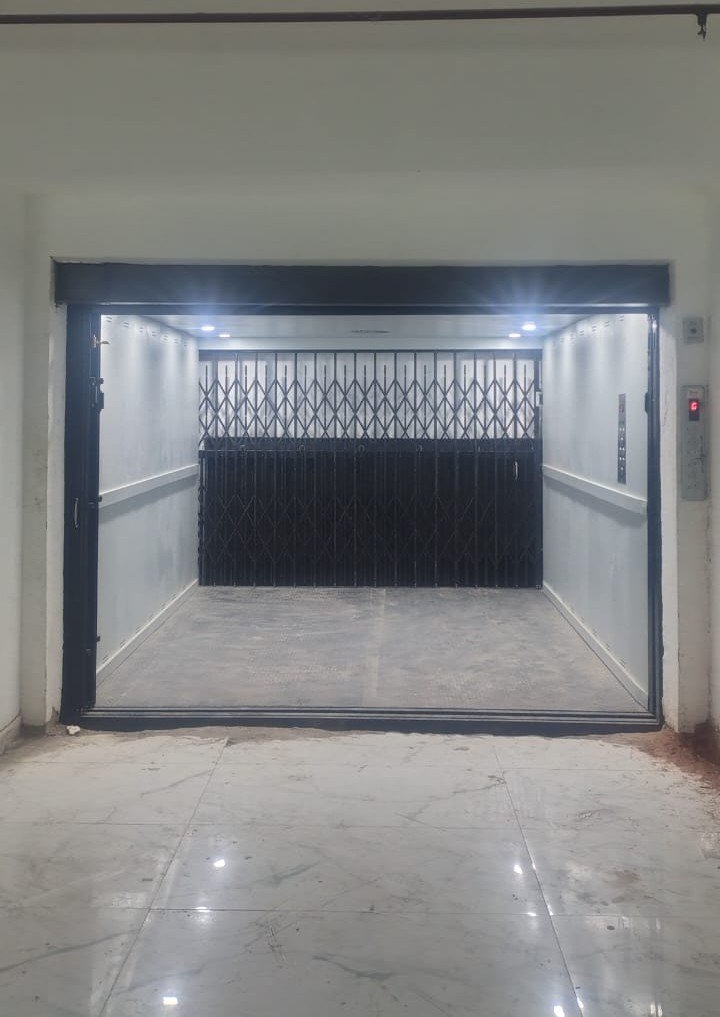

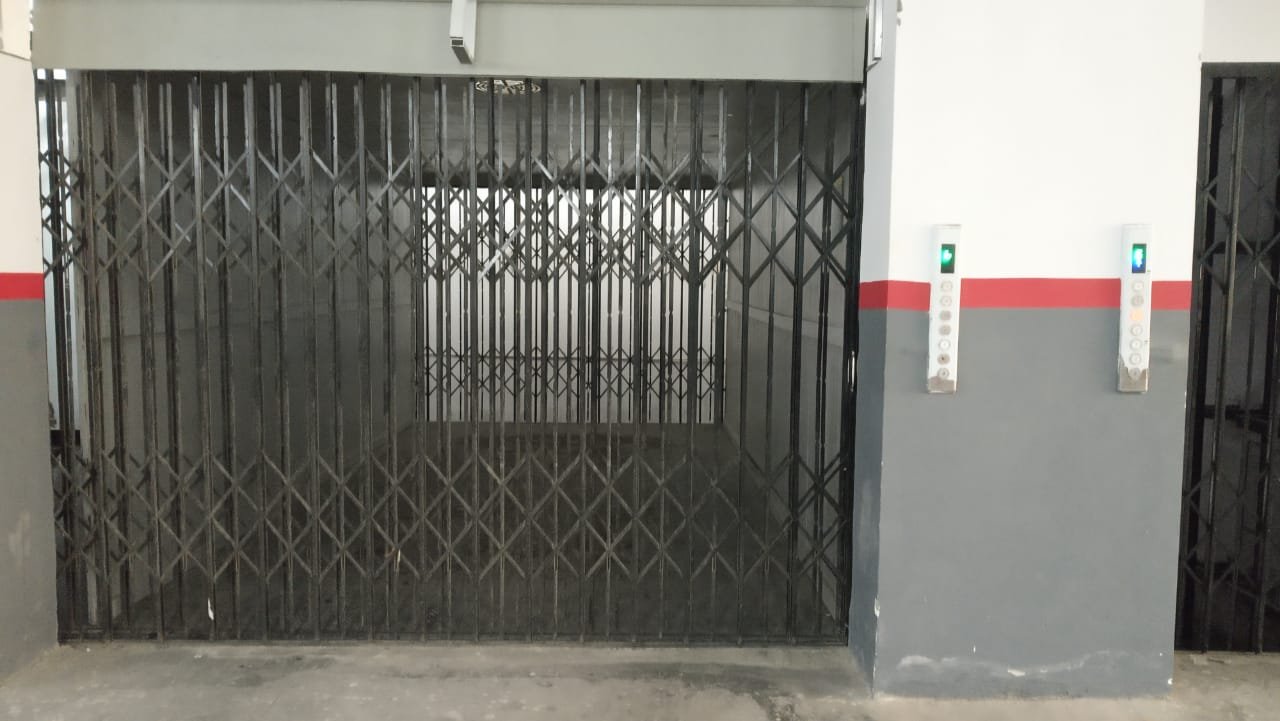

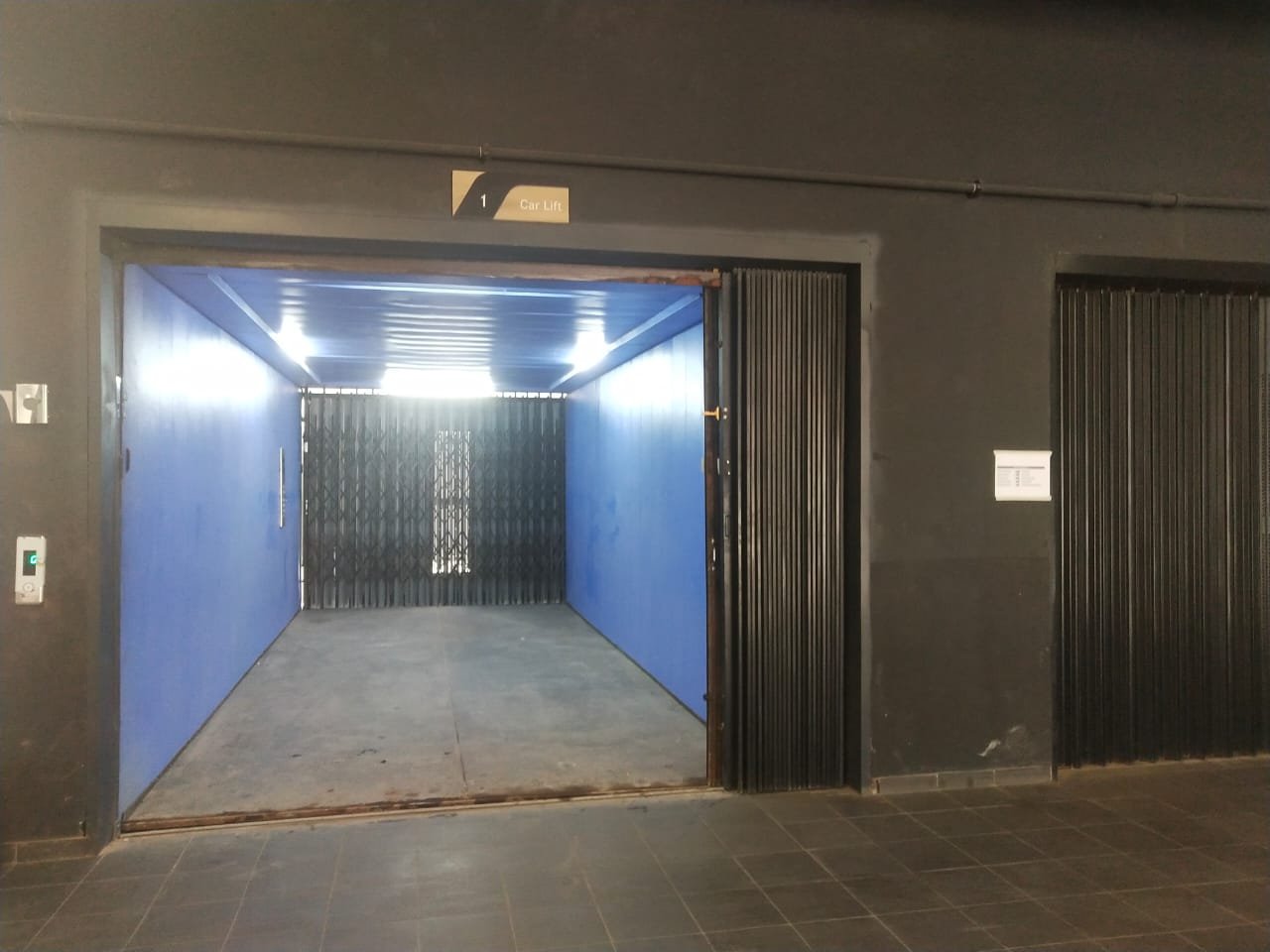

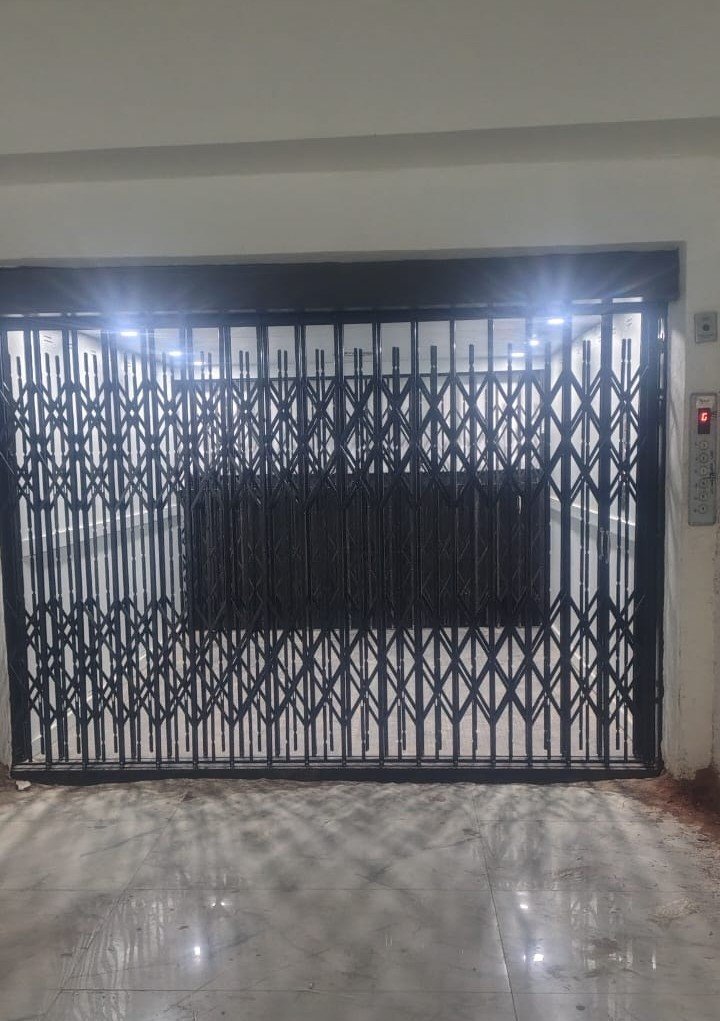

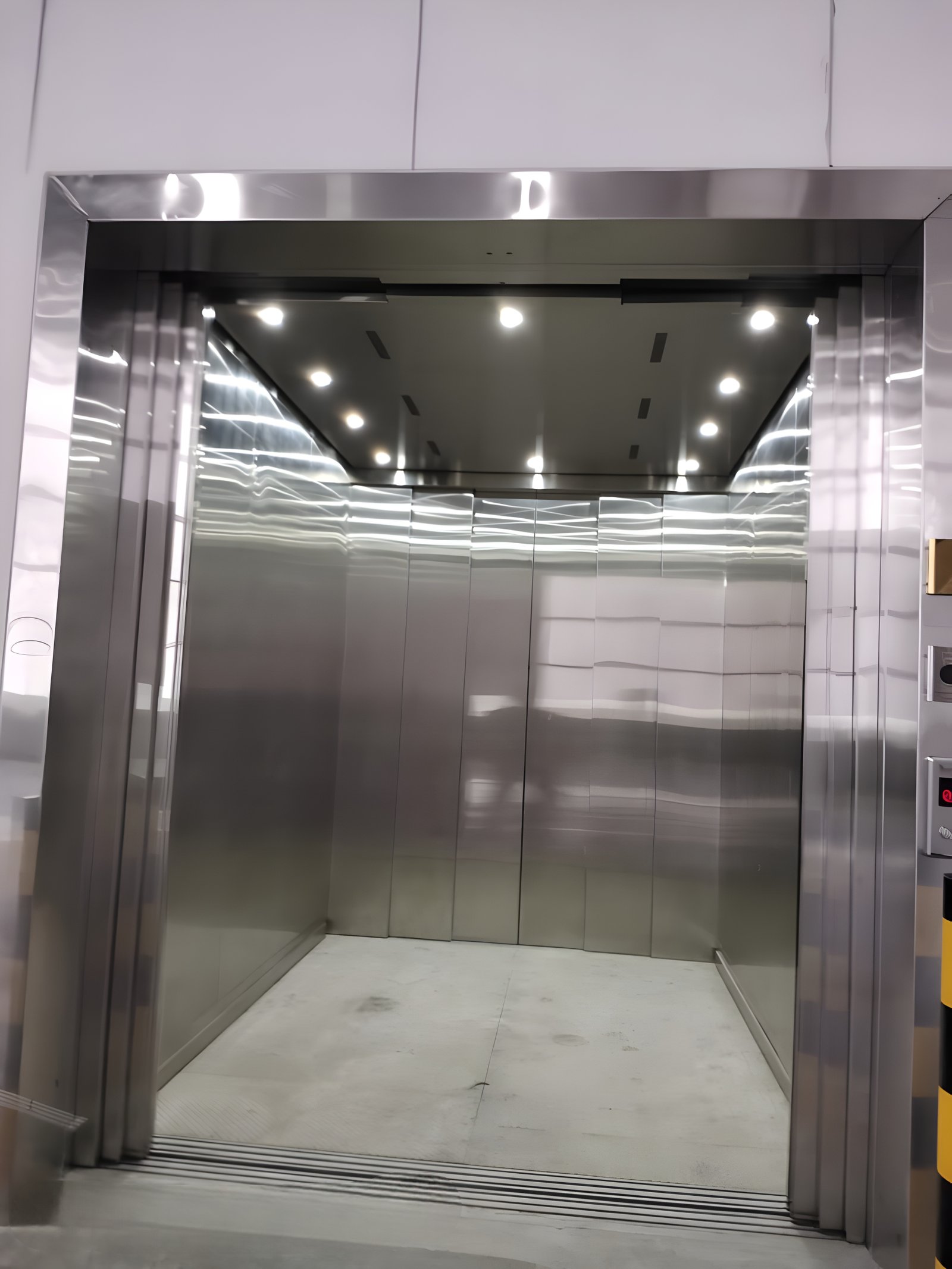

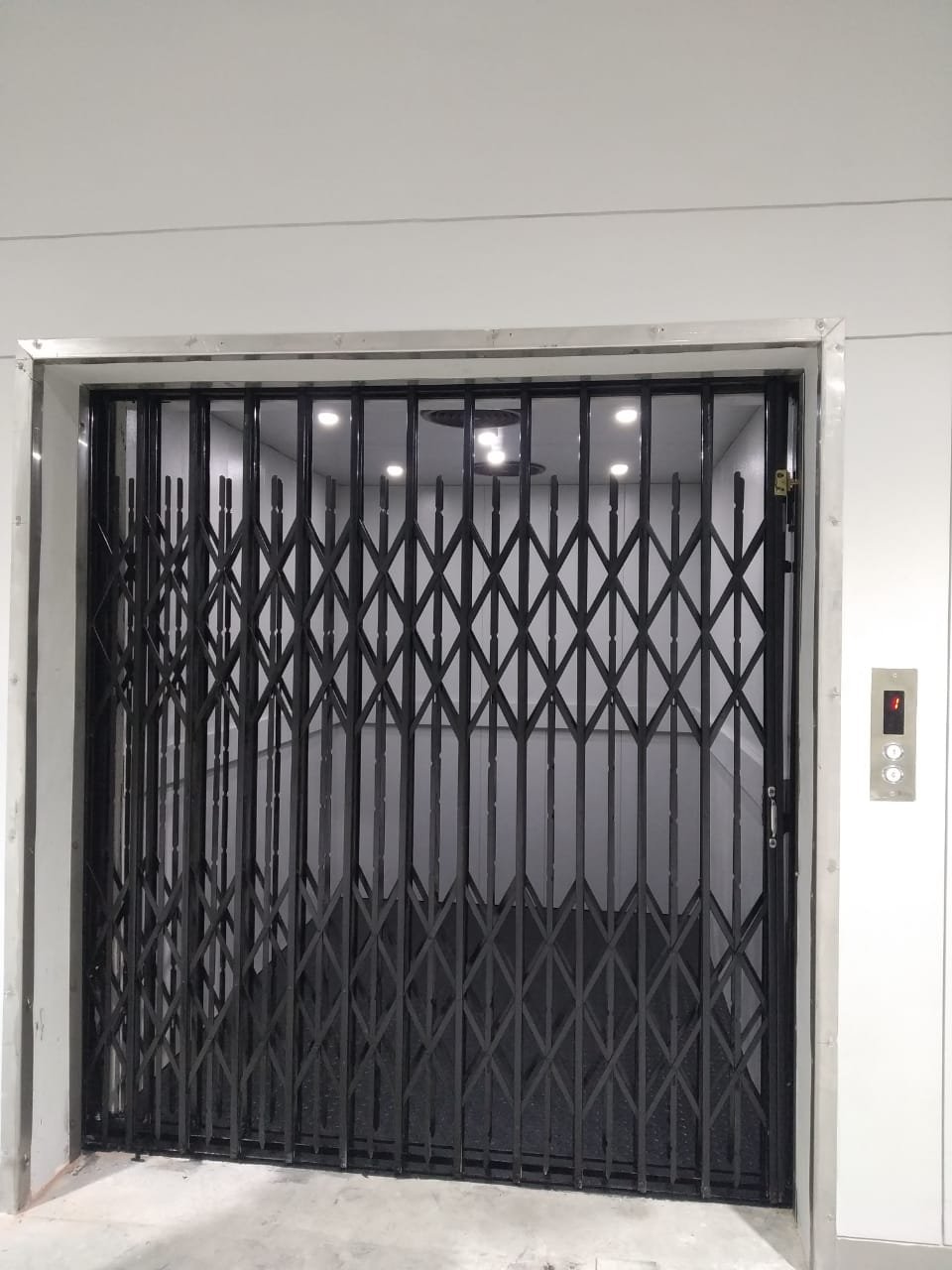

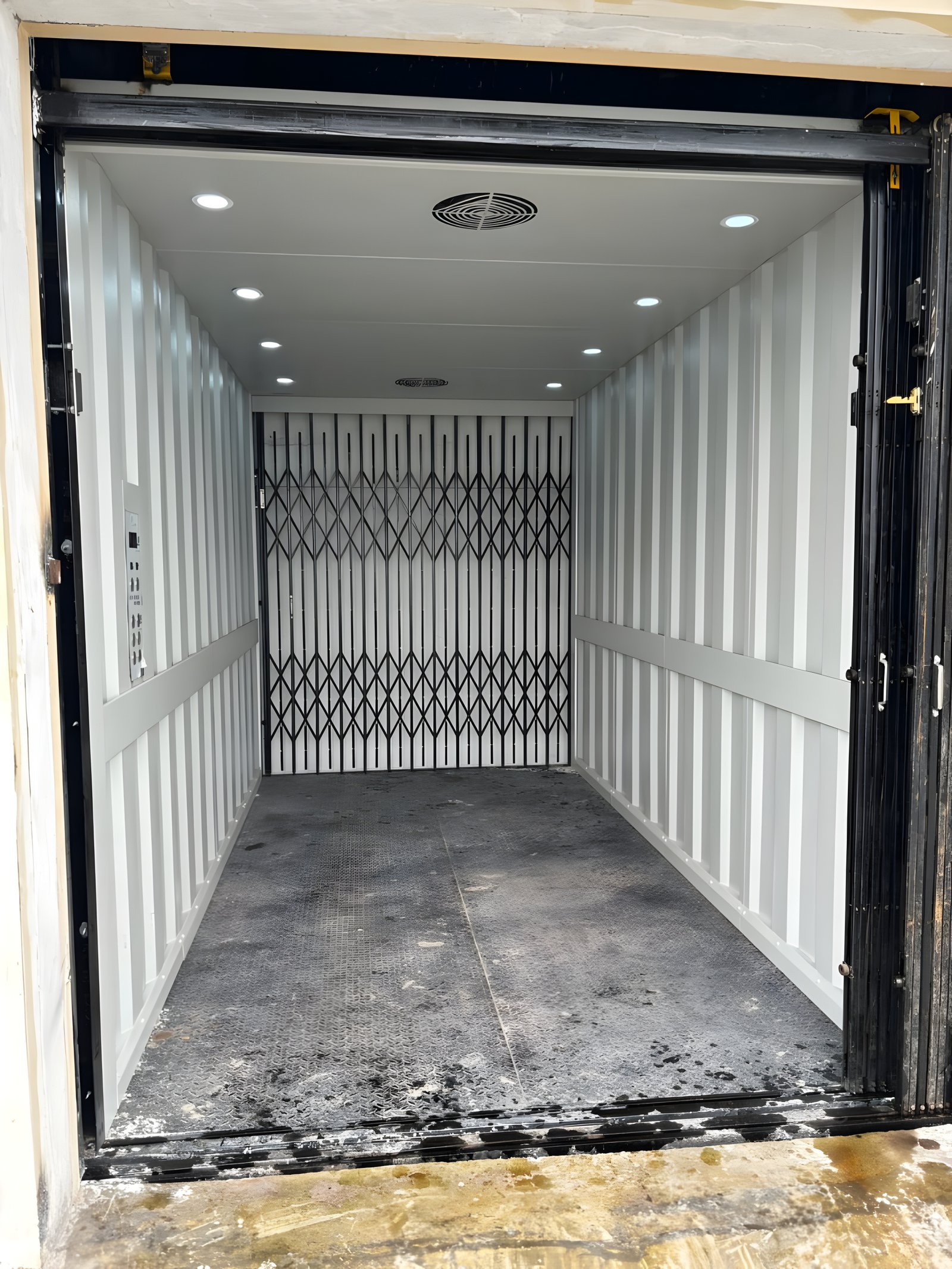

What Are Freight Elevators?

Freight elevators are specialized lifting systems that transport heavy goods within commercial buildings such as warehouses, distribution centers, and retail stores. These elevators are specifically built to handle the rigorous demands of industrial environments and provide a reliable solution for vertical material movement. With their sturdy construction and high load-bearing capacity, commercial freight elevators can efficiently transport large, bulky items, pallets, equipment, and vehicles. They are equipped with spacious dimensions to accommodate sizable loads and are often equipped with safety features such as reinforced doors and secure loading platforms. Installing commercial freight elevators requires careful planning and adherence to safety regulations to ensure smooth and secure transportation of goods.

View Civil Dimension

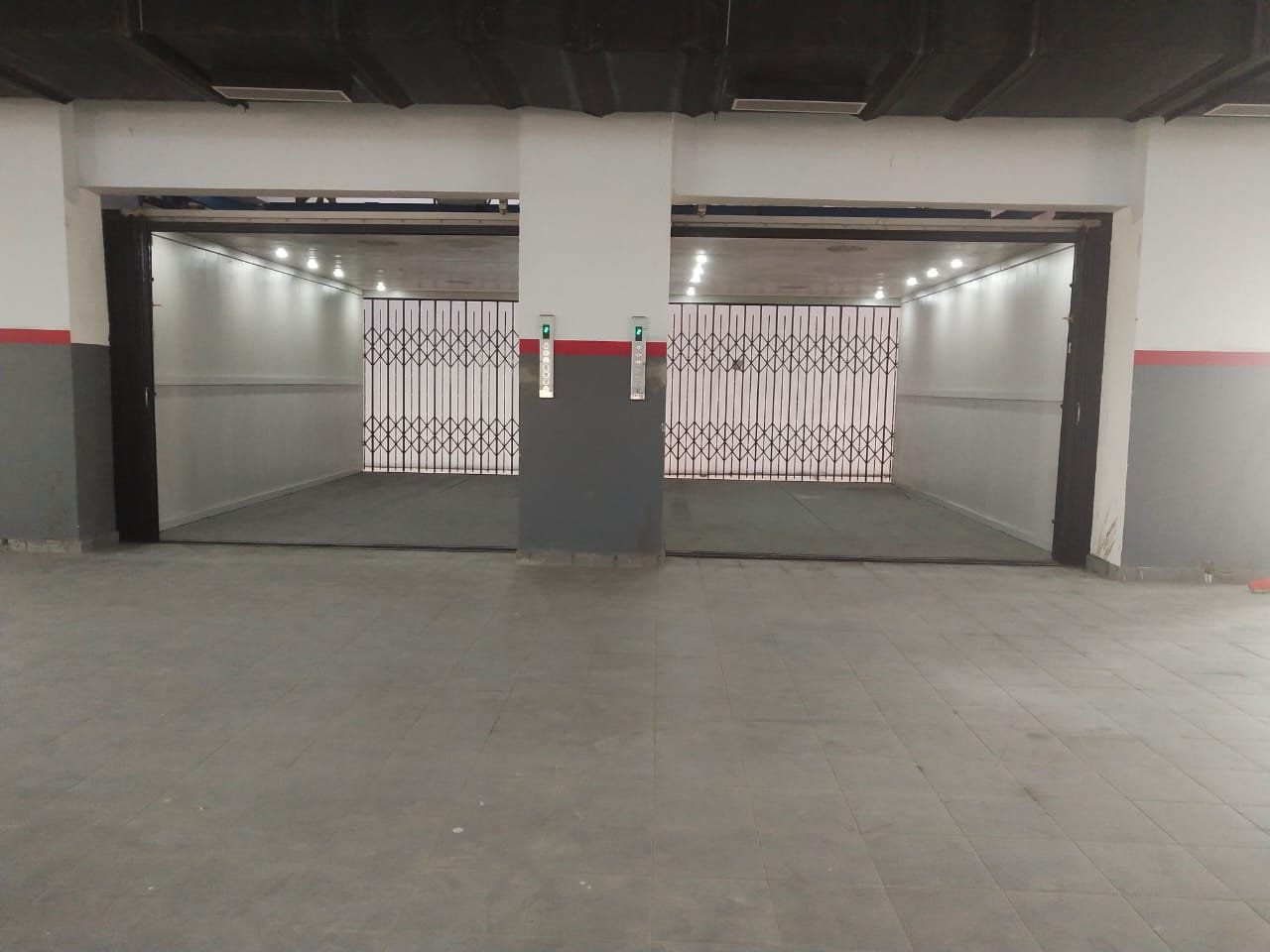

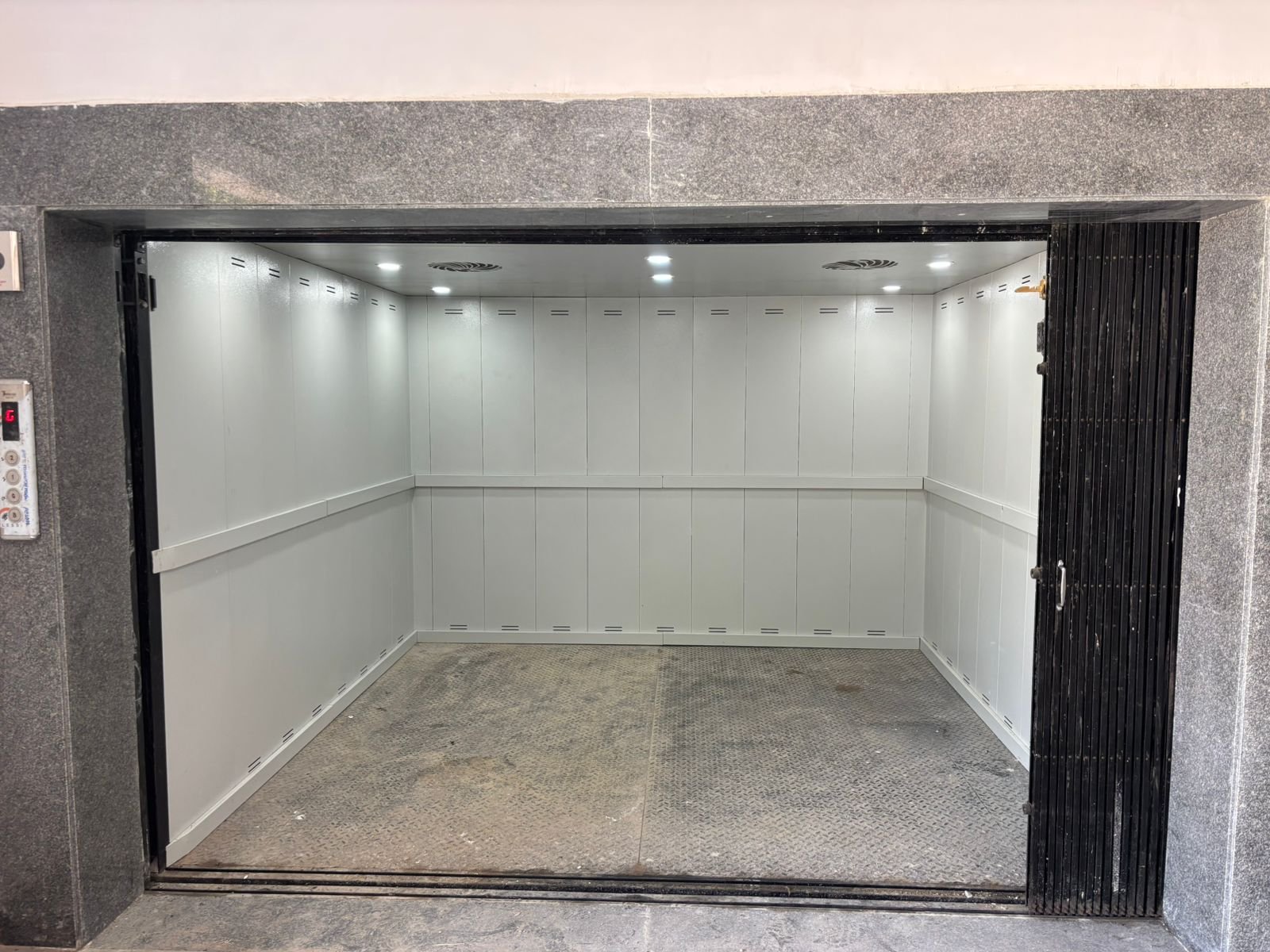

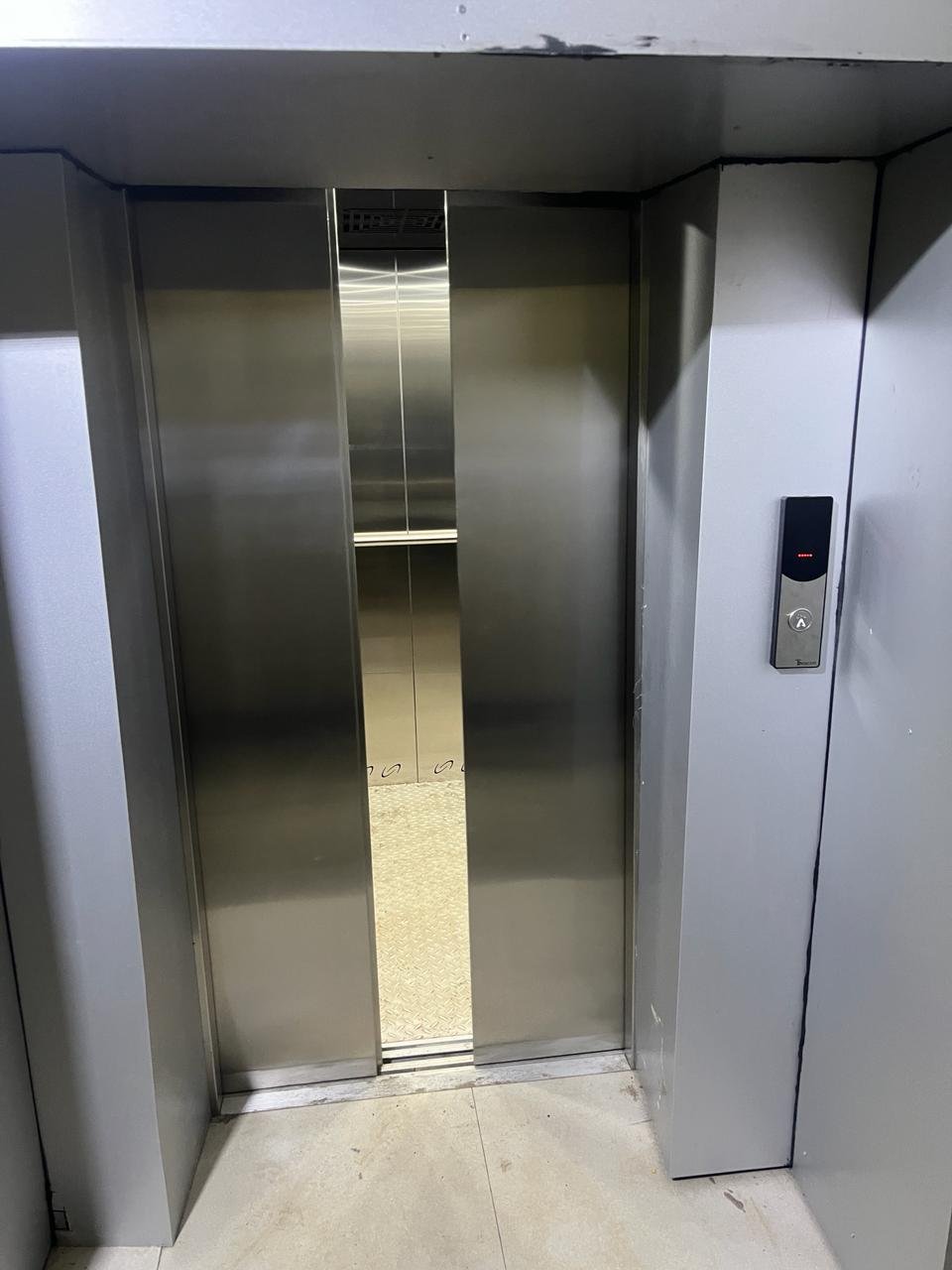

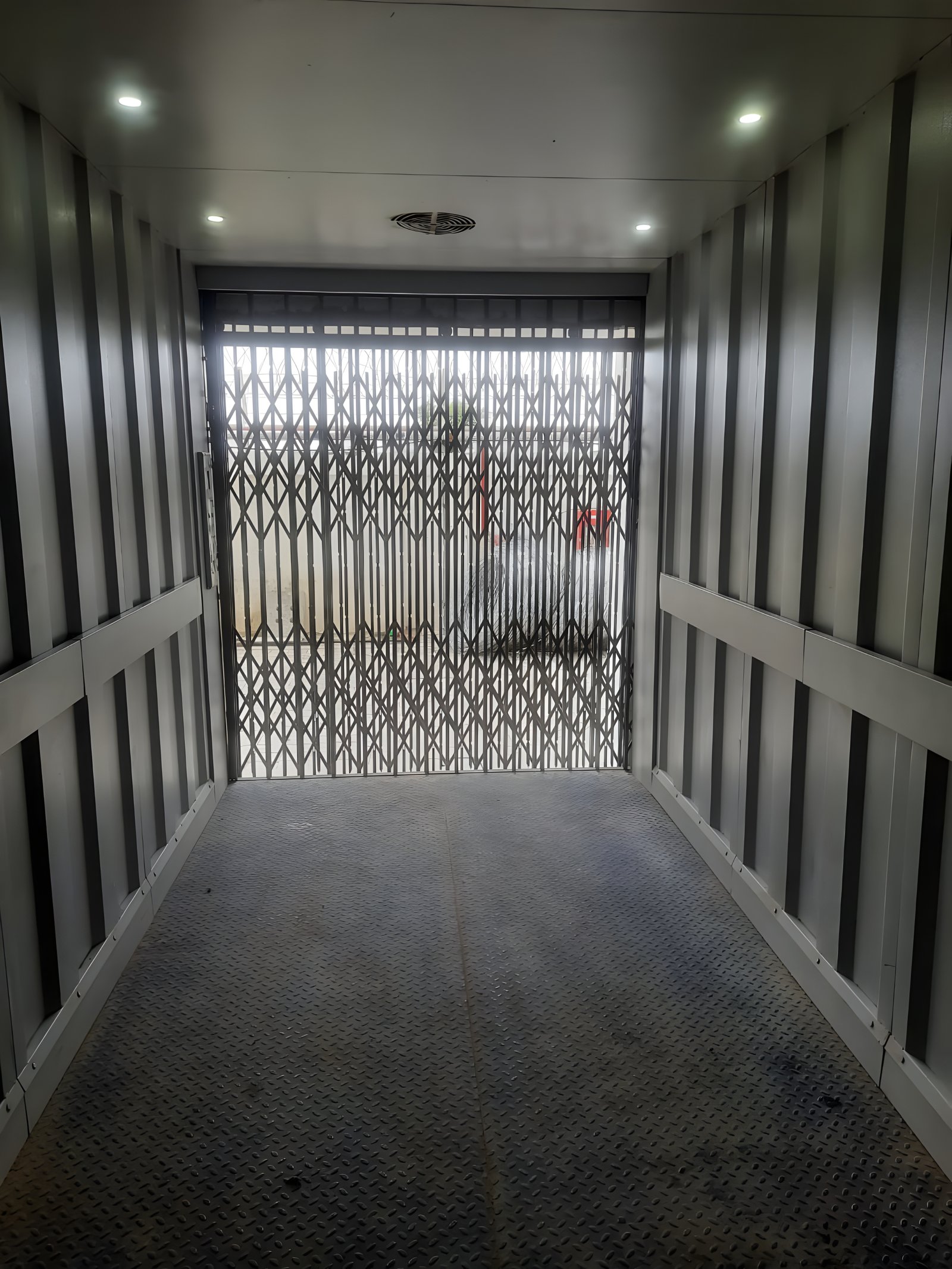

What Are the Key Features of Freight Elevators

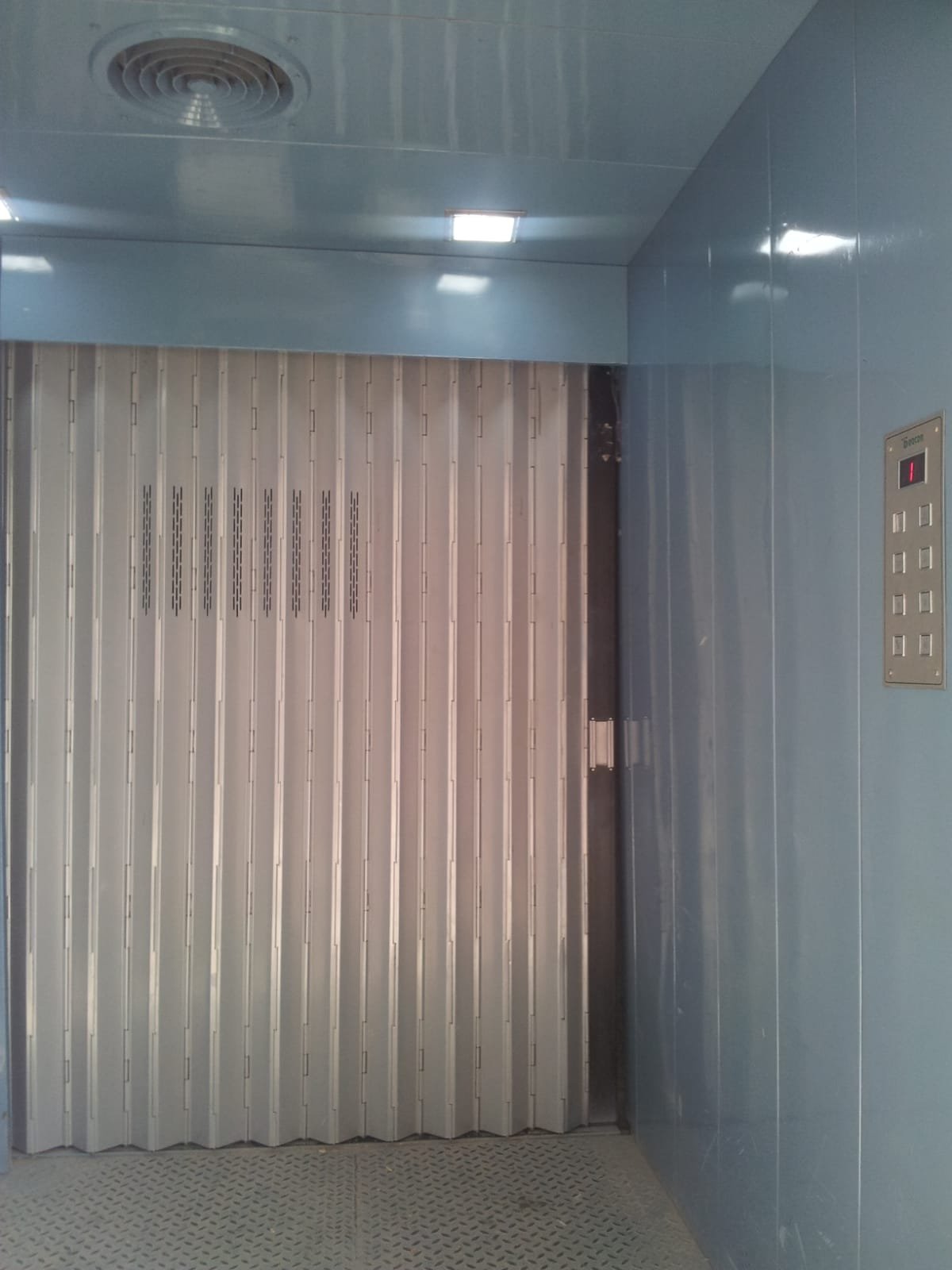

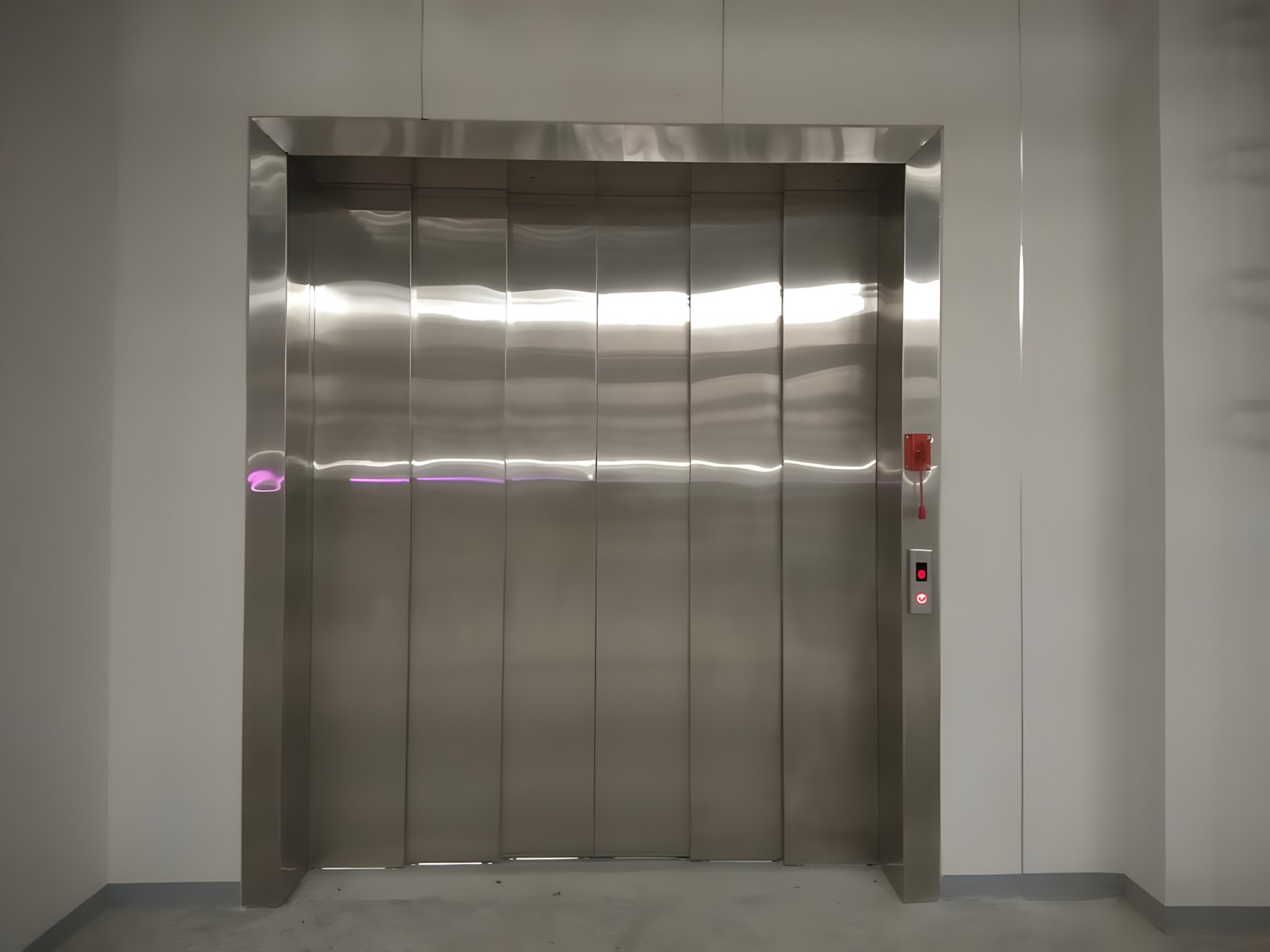

Freight elevators come with several key features that make them ideal for handling heavy cargo in industrial and commercial settings. One of the prominent features is their substantial load capacity. These elevators are engineered to transport goods weighing several thousand pounds, allowing for efficient and hassle-free movement of heavy items. Freight elevators typically feature spacious dimensions and sturdy construction to accommodate bulky and oversized loads. They are equipped with robust door systems, interlocks, and safety sensors to ensure safety during operation. Also, industrial freight elevators often offer customizable options such as specialized flooring, adjustable shelving, and advanced control systems, catering to the specific needs of different industries and optimizing logistical workflows.

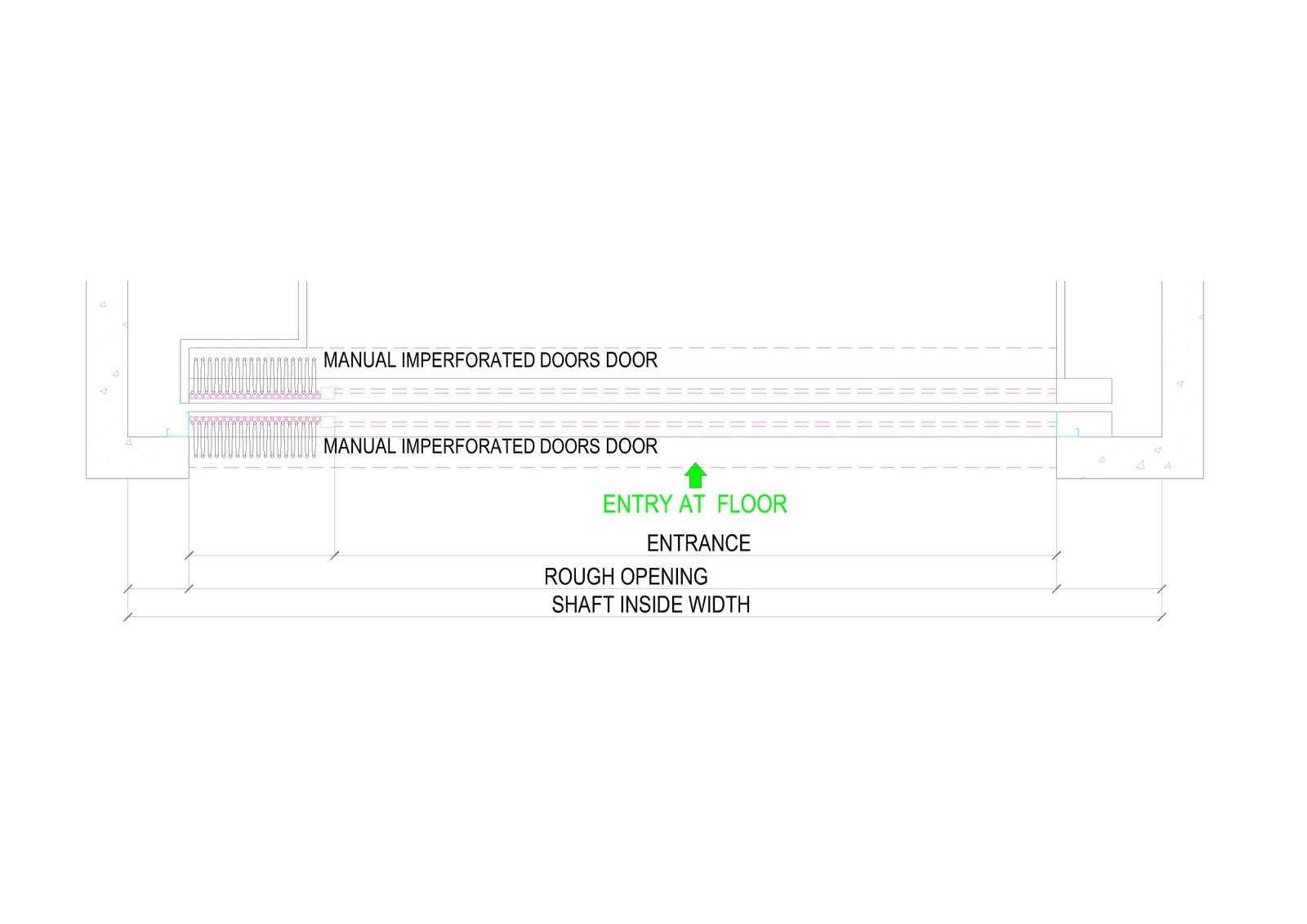

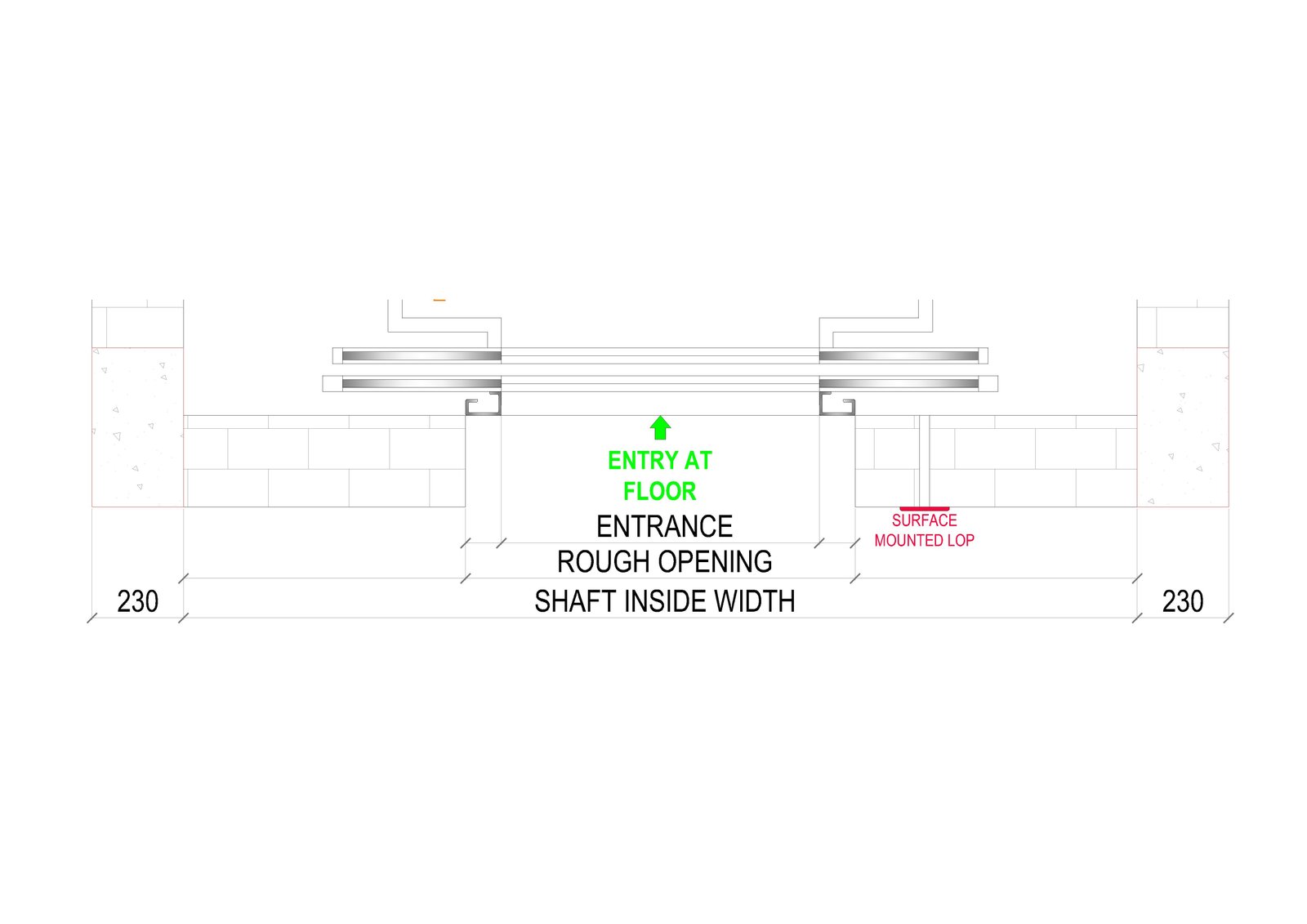

Freight / Goods Elevators - Minimum Civil Dimensions:

LOAD (KG)	CAR INSIDE		LIFT WELL		ENTRANCE	MACHINE ROOM		PIT DEPTH	OVER HEAD
LOAD (KG)	A	B	C	D	E	K	L	PIT DEPTH	OVER HEAD
500	1100	1200	1900	1500	1100	3900	4000	1600	4500
1000	1400	1800	2300	2100	1400	4300	4600	1600	4500
1500	1700	2000	2600	2300	1700	4600	4800	1600	4500
2000	1700	2500	2600	2800	1700	4600	5300	1600	4500
2500	2000	2500	2900	2800	2000	4900	5300	1600	4500
3000	2000	3000	2900	3300	2000	4900	5800	1600	4500
4000	2500	3000	3400	3300	2500	5400	5800	1600	4500
5000	2500	3600	3400	3900	2500	5400	6400	1600	4500

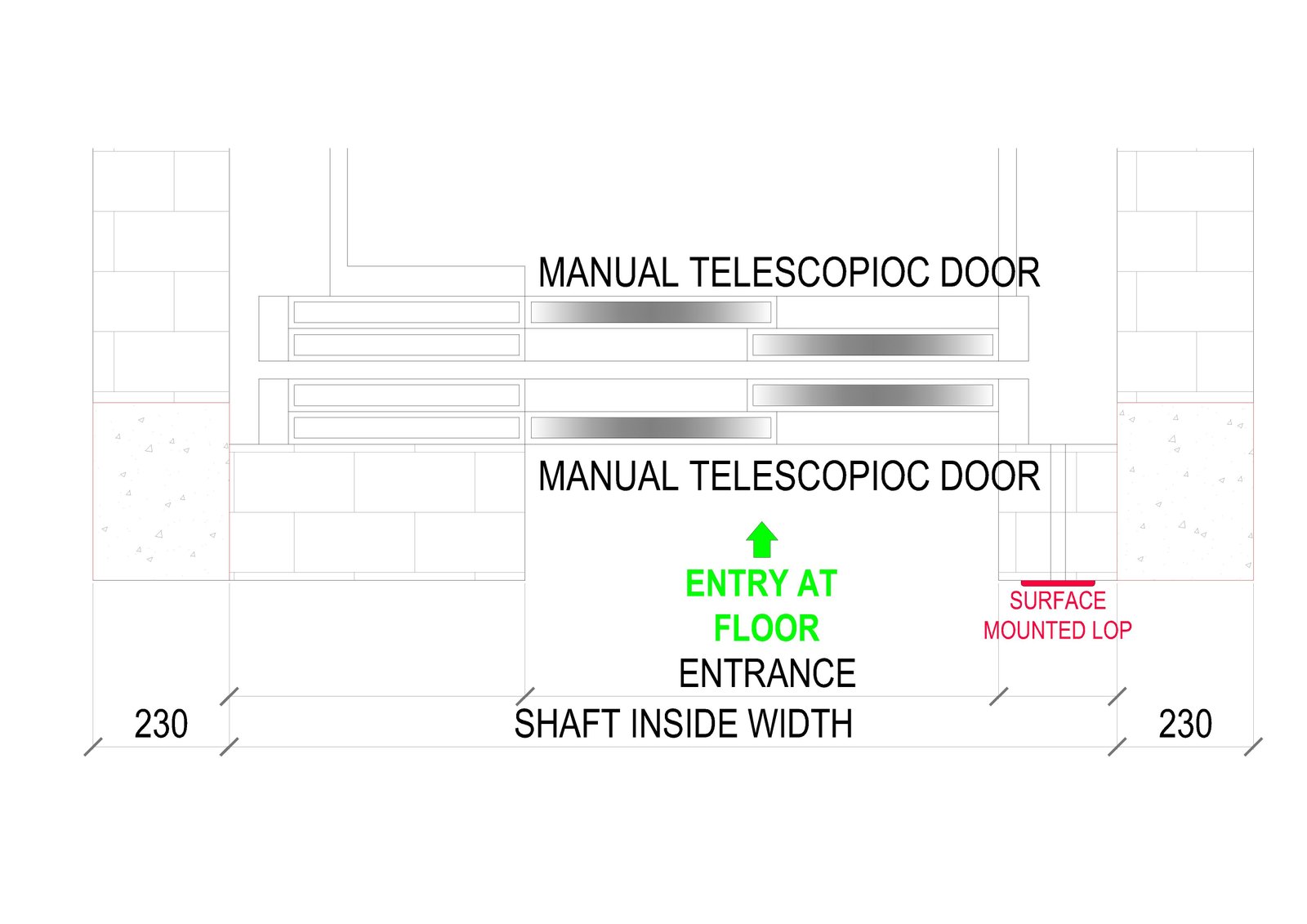

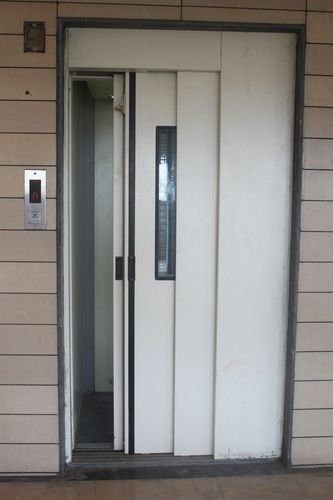

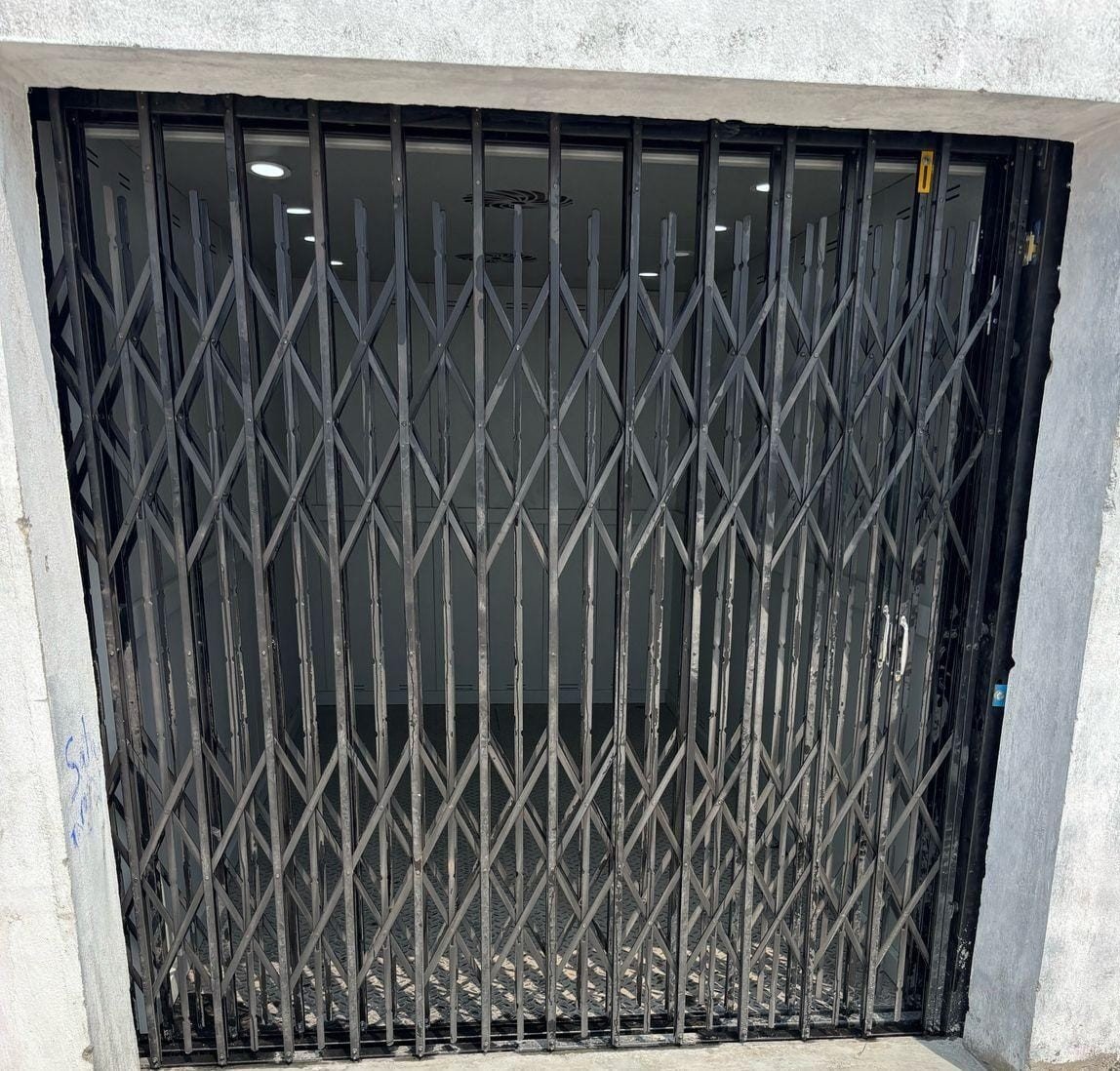

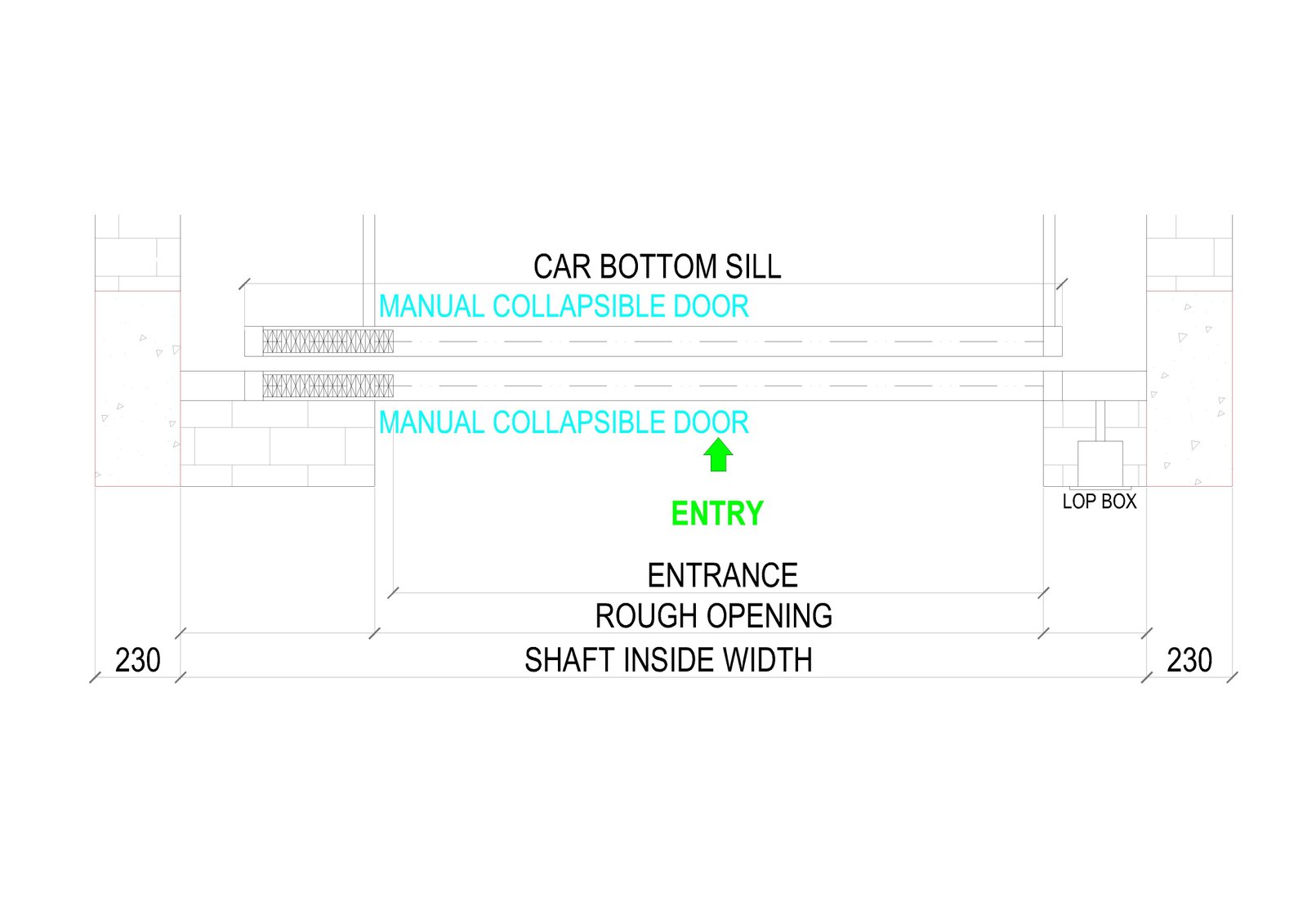

Note: In case of manually operated doors, clear entrance will be reduced by the amount of projection of handle on the landing door.

Note: Dimensions of pit depth and overhead may differ in practice as per individual manufacturer’s design depending upon load, speed and drive. However, the pit depth and overhead shall be such as to conform to the requirements , IS14665

CLIENT SCOPE - Detailed Requirements

Three Phase Power Supply

Provide Three Phase Power Supply near control panel with M.C.B. & E.L.C.B.
Scaffolding

Provide scaffolding for entire erection period (approximately 15 days)
Temporary Power Connection

Provide temporary power connection for erection & testing work
Access Permission

Give free access in case work needs to be done after office hours
Shaft Construction

Construct the shaft in accordance with GA Drawing
Earth Points

Provide 2 Earth Points near Control Panel
Shaft Lighting

Provide shaft lighting with plug points
Civil Material & Mason

Provide mason with civil material for minor building work including grouting etc. during erection work
Machine Room Components

Access to Machine room, Machine beams, Supporting beams, Machine room door, Machine room ladder, Loading hook etc.
Elevator Shaft Wall Finishing

Provide Elevator Shaft wall to be plastered & painted
R.C.C. Column Design

4 No. R.C.C. Columns to be designed by client for the given load

Quick Reference

Construct the shaft (230mm brick / 150mm RCC Walls) in accordance with our GA drawings.
Mason with material for minor builder's work such as pocket cutting, grouting, door fixing, etc.
Temporary power connection for erection & testing work.
Scaffolding till the time of erection for about 30 days.
Access to Machine room (if applicable).
Power supply (415 Volts, 3 Phase, 4 Wires with Neutral, 50 Hz. & 230 Volts 1 Phase) near our control panel with MCB/JUNCTION BOX.
